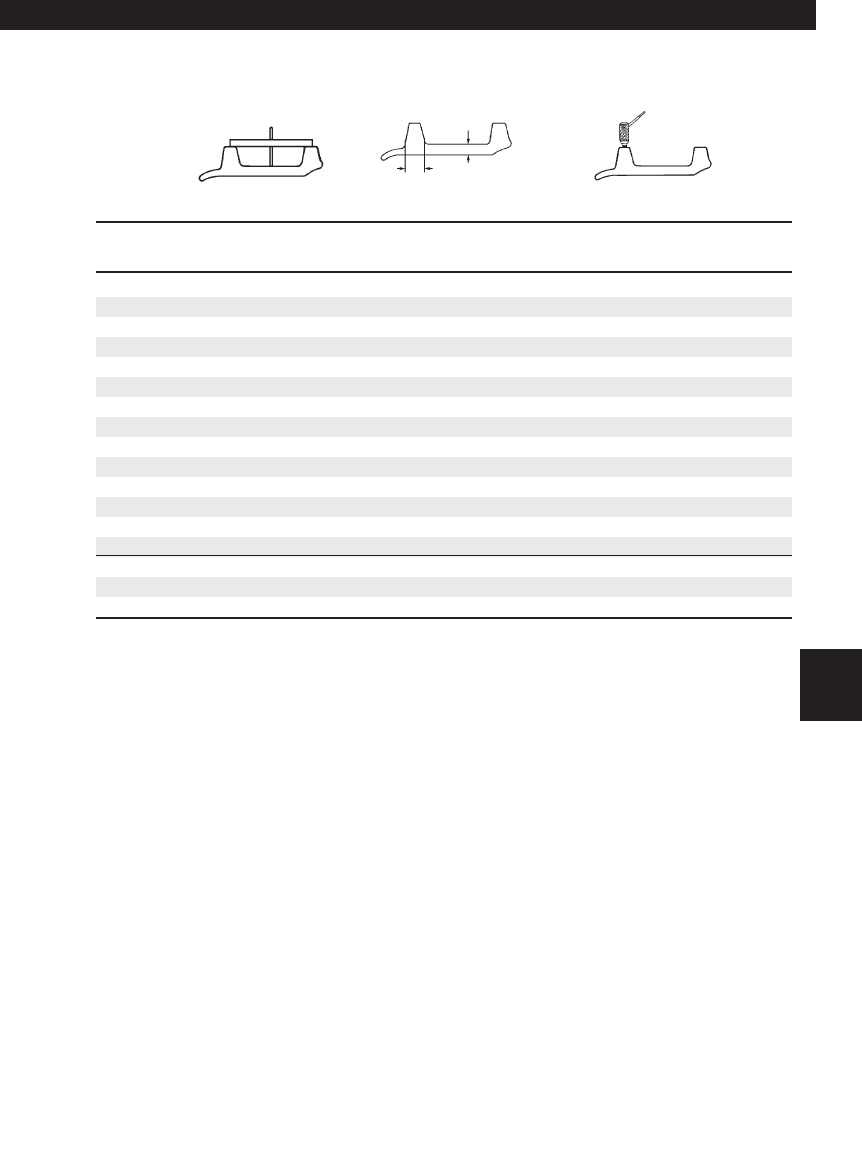

Track Shoes

Double Grouser

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.40 (35.5) 0 1.89 (48.0)

1.35 (34.5) 8 1.84 (46.7)

1.30 (33.0) 16 1.79 (45.5)

1.25 (32.0) 24 1.74 (44.2)

1.20 (30.5) 32 1.69 (42.9)

1.15 (29.0) 40 1.64 (41.7)

1.10 (28.0) 48 1.59 (40.4)

1.05 (26.5) 56 1.54 (39.1)

1.00 (25.5) 64 1.49 (37.8)

0.95 (24.0) 72 1.44 (36.6)

0.90 (23.0) 79 1.39 (35.3)

0.85 (21.5) 86 1.34 (34.0)

0.80 (20.5) 93 1.29 (32.8)

0.75 (19.0) 100 1.24 (31.5)

0.70 (18.0) 107 1.19 (30.2)

0.65 (16.5) 114 1.14 (29.0)

0.60 (15.0) 121 1.09 (27.7)

Undercarriage Code: 546, 5461, 547, 5471, 566, 5661, 567, 578, 5781

523

315, 317, 318, 320, 322 — 7.50" (190 mm)

Excavators

.51" (13 mm)

1.02" (26 mm)

10.Exc.(488-607) 7/14/03 7:32 AM Page 523
