Sealed and Lubricated Track vs

Sealed Track Effects

Due to expected absence of internal wear

the Sealed and Lubricated Track bushing

should have its most worn position on or

very near the vertical position. Sealed

Track is expected to have either forward

or reverse position as the most critical

position. The Sealed and Lubricated Track

bushing also has fewer wear positions to

analyze.

The expected life of the Sealed and Lubri-

cated Track bushing is approximately 50 per-

cent more than the Sealed Track bushing

when compared to either high or low impact

service limits.

These increases depend on the following:

1. Degree of internal wear that contri-

buted to the external wear on the

Sealed Track bushing.

2. Properly adjusted track.

3. Absence of very severe packing.

4. Similar working conditions.

Sealed and Lubricated Track

Bushing Turnability

The Sealed and Lubricated Track bushing

should be turned based on the guidelines

in following sections entirely devoted to

specific model families.

The bushing may be expected to provide

life after turn wear, equal to or exceeding

the wear life potential of the first or front

side prior to the turn.

Sealed and Lubricated Track bushings can

be successfully turned wet if there are no

cracks through the bushing wall at turn

time and seal wear life guidelines have

not, or will not, be exceeded.

Sealed and Lubricated Track bushings

may be successfully turned dry, (with or

without internal wear at turn time) as long

as there are no cracks through the bushing

wall and internal wear does not exceed

Sealed Track service limits.

Life after dry turn cannot be expressed

as a percent of wet life before turn. It will

most closely approximate life after turn

of Sealed Track in hours, not percent.

How to Interpret Sealed

& Lubricated Track

Bushing Wear Patterns

These patterns are found on wet joints. For

dimensions on wear patterns of dry joints

see Sealed Track bushings.

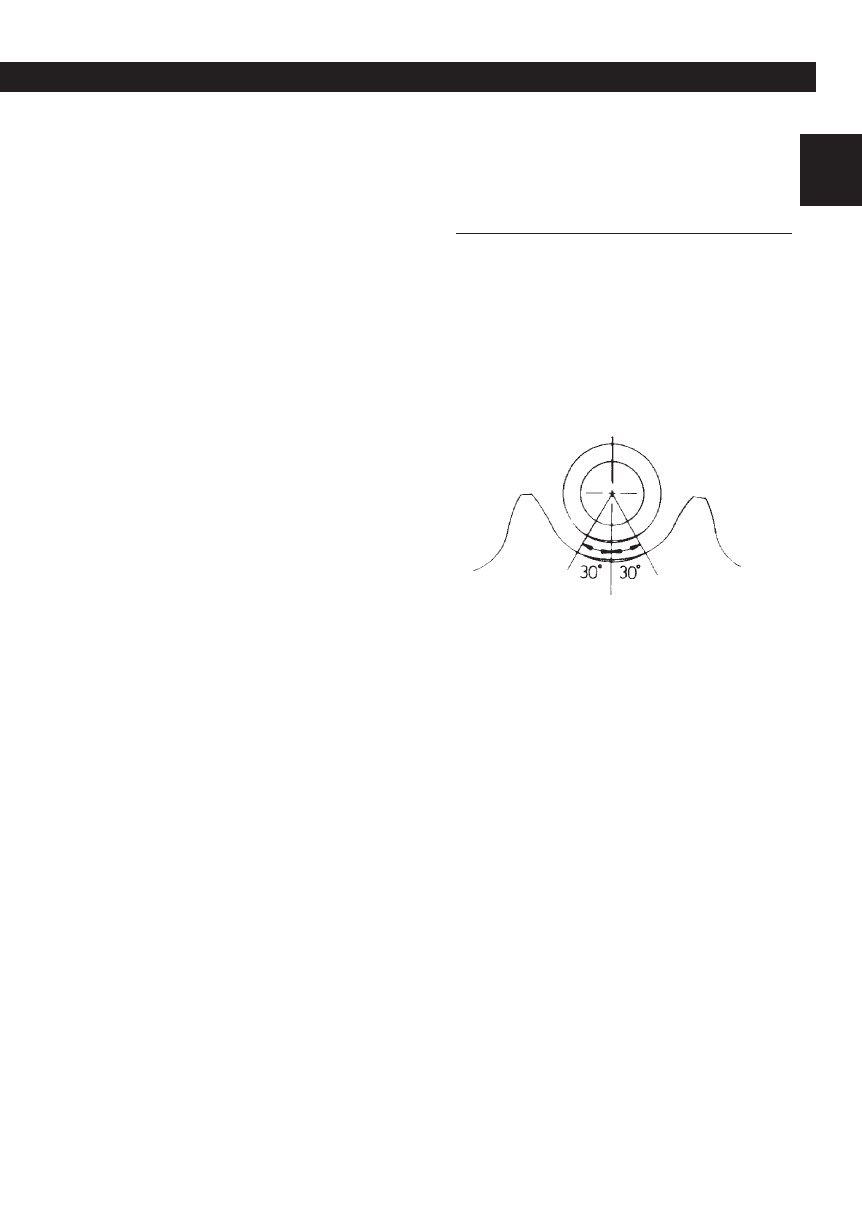

Vertical Position

(0° to 30° from vertical is normal expected

wear pattern)

CAUSES: Sliding contact with root of

sprocket tooth during forward to reverse

direction changes and due to pitch mismatch

from minor packing and advanced other

component wear.

ACCELERATORS: Horsepower, weight

and speed; impact, abrasiveness, tight

track and packing loads, worn rear rollers,

wide shoes and reverse loads.

EFFECT: Cracking will occur when

respective high or low impact wear limit

(100 percent worn) is exceeded. Bushing

wall will break through at destruction point.

REMEDIES: Eliminate or reduce control-

lable accelerator variables listed above and

turn bushing on or before service limit.

General Information

SEALED & LUBRICATED TRACK PINS & BUSHINGS
