Caterpillar Custom Track Service Handbook Page 801

Service Handbook

Page of 826

/ 826

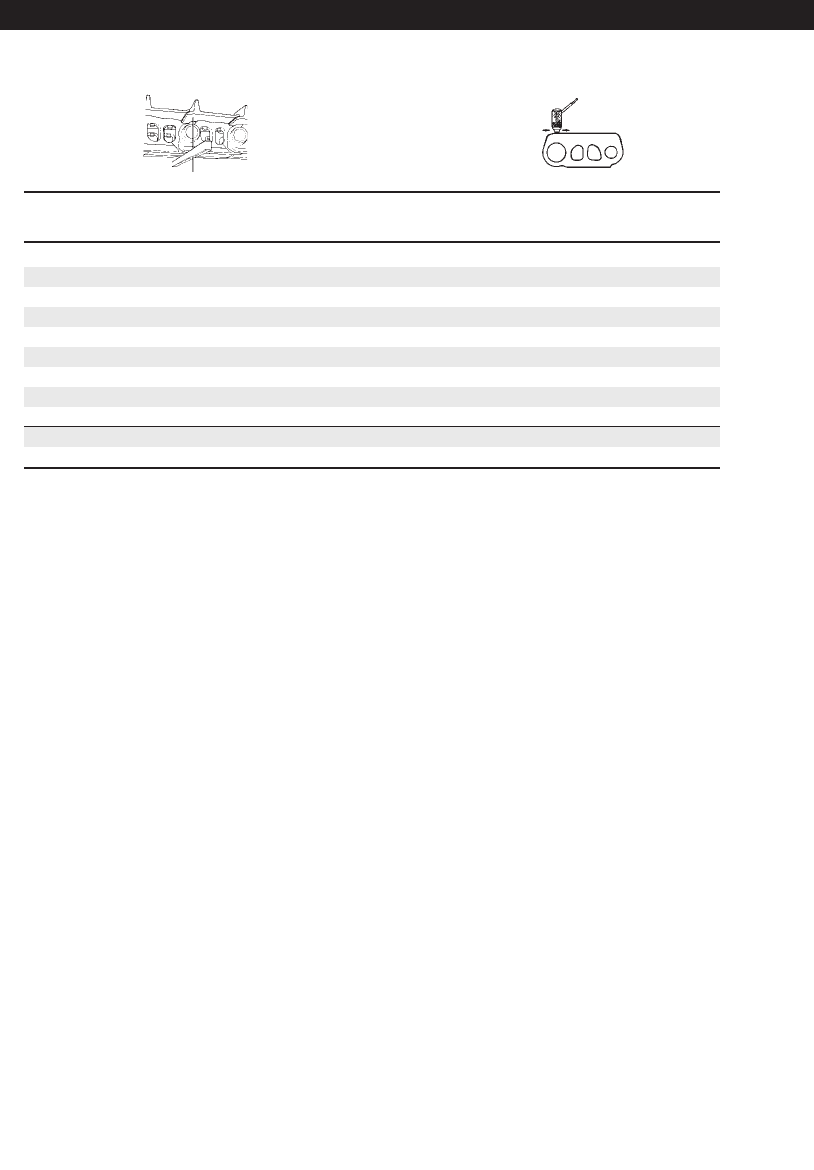

Track Links

6Y0935 & 36

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

3.46 (88.0) 0 1.00 (25.4)

3.44 (87.5) 13 0.98 (24.9)

3.42 (87.0) 26 0.96 (24.4)

3.40 (86.5) 39 0.94 (23.9)

3.38 (86.0) 52 0.92 (23.4)

3.36 (85.5) 65 0.90 (22.9)

3.34 (85.0) 78 0.88 (22.4)

3.32 (84.5) 90 0.86 (21.8)

3.30 (84.0) 100 0.84 (21.3)

3.28 (83.5) 110 0.82 (20.8)

3.26 (83.0) 120 0.80 (20.3)

Undercarriage Code: 790

800

AP1050 — 6.125" (155.6 mm)

Paving Products/Drive Belts

13.Pav/Ag.(792-817) 7/14/03 7:34 AM Page 800
