CAUSES: Sliding contact with corre-

sponding bushing position. With Sealed

and Lubricated Track it indicates moderate

degree of packing. With Sealed Track it

indicates combined degree of mismatch

resulting from internal wear plus packing.

ACCELERATORS: See “RDS and FDS

wear on Sealed and Lubricated Track and

Sealed Bushings.”

EFFECTS: Reduces potential wear life of

sprocket segment due to reduced strength

of tooth in driving position.

REMEDIES: Reduce or eliminate control-

lable accelerator variable listed under

“Sealed and Lubricated Track and Sealed

Bushing FDS and/or RDS Wear” Positions.

Change sprocket as indicated by sprocket

reuse gauge at bushing turn or replacement

time only. Action taken should be in con-

sideration of bushing, not sprocket segment

except in extreme cases when loss of tooth

could cause final drive damage.

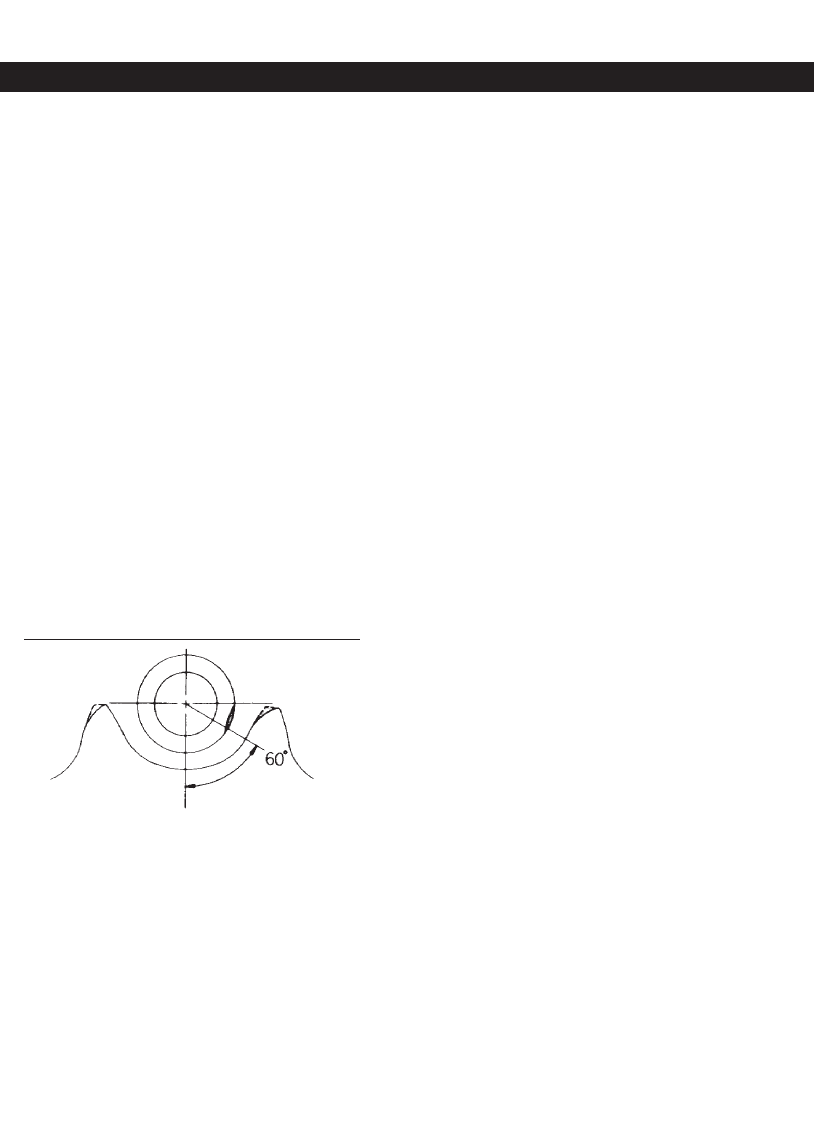

Reverse Drive Side Tip Wear

(corresponding to more than 60° from

vertical on bushing wear).

CAUSES: (1) Severe packing effect in the

absence of track pitch extension from

Sealed and Lubricated Track or early hour

Sealed Track cause bushing to have interfer-

ence with sprocket tooth tip upon entry at

the bottom of the sprocket in forward

motion and/or interference with tooth tip

upon exit at the bottom of the sprocket in

reverse motion. (2) Too loose of track with

more than 1" (3/4" on one carrier roller

machines) of slack results in “back jam-

ming” the bushing at the bottom of the

sprocket in reverse motion.

NOTE: To determine the cause of reverse

drive side tip wear note the direction of

the scratches on the tooth tip. If they point

toward the tip then the cause is probably

too loose track; if they point toward the

root, the cause is probably severe packing.

See further discussion under “How to

Interpret Sealed and Lubricated Track

Bushing Wear Patterns — Forward

and/or Reverse Drive Side Wear Pockets.”

ACCELERATORS: (1) For Packing —

same as “Bushing FDS and/or RDS

Pockets” (2) For too loose track — same

as “Bushing FDS and/or RDS Pockets”

except track tension needs to be increased

by removing excess slack.

EFFECTS: (1) & (2) No adverse effect on

sprocket itself when in absence of other sig-

nificant FDS and/or RDS wear patterns.

Does not affect sprocket reusability or

ultimate wear life as vertical position should

take over as most worn on Sealed and

Lubricated Track and FDS/RDS wear

should take over as most worn positions with

Sealed Track following pitch extension.

REMEDIES: (1) If caused by packing —

reduce or eliminate controllable accelerator

variables, particularly too tight track. Do

not change segments based on tip wear

alone. Use sprocket reusage gauge to deter-

mine reusability following bushing turn or

replacement. Use mud/snow segments only

if packing material is constant and extrud-

able. (2) If caused by too-loose track —

adjust track to proper slack. Do not change

or replace segments based on tip wear

alone. Use sprocket reuse gauge to deter-

mine reusability following bushing turn or

replacement.

SPROCKETS

General Information
