Caterpillar Custom Track Service Handbook Page 341

Service Handbook

Page of 826

/ 826

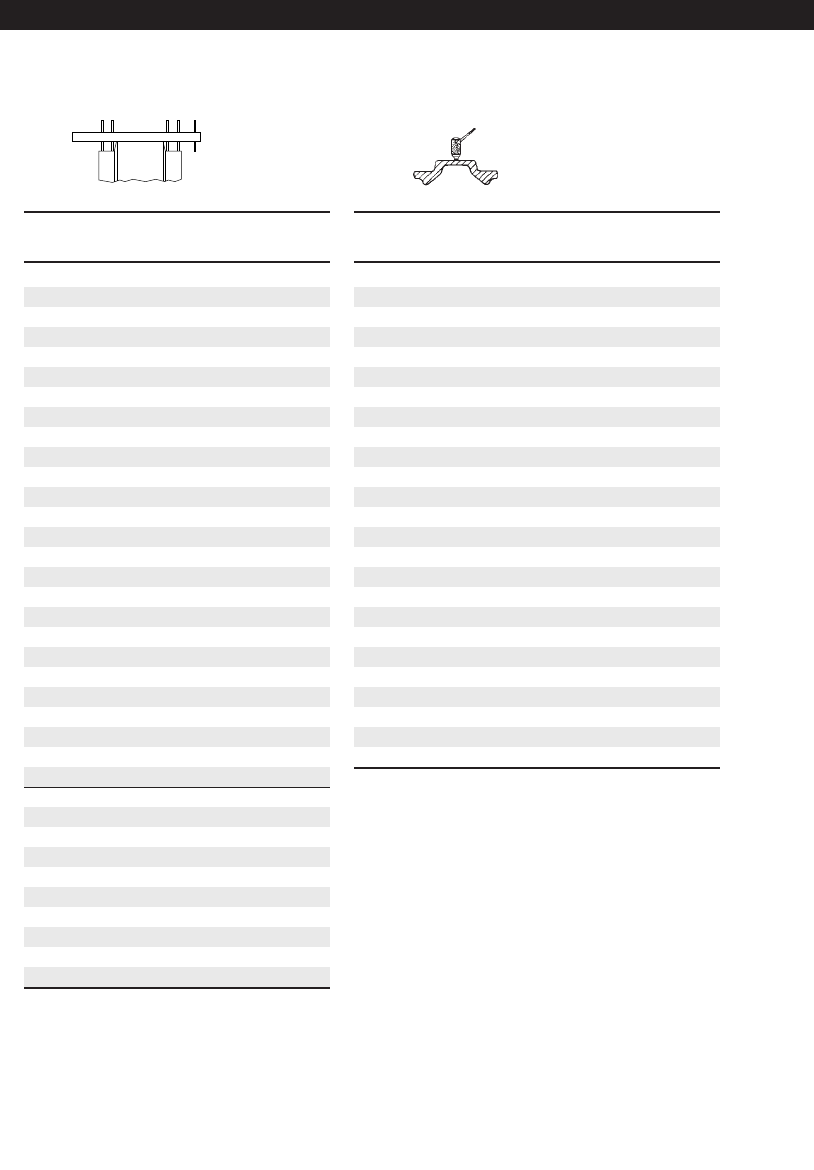

Idlers

Extended Life Idlers

(Has circular side plate indentations)

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.78 (20.0) 0 0.49 (12.4) 0.00 (0.0)

0.80 (20.5) 6 0.47 (11.9) 0.02 (0.5)

0.82 (21.0) 12 0.45 (11.4) 0.04 (1.0)

0.84 (21.5) 18 0.43 (10.9) 0.06 (1.5)

0.86 (22.0) 24 0.41 (10.4) 0.08 (2.0)

0.88 (22.5) 30 0.39 (9.9) 0.10 (2.5)

0.90 (23.0) 36 0.37 (9.4) 0.12 (3.0)

0.92 (23.5) 42 0.35 (8.9) 0.14 (3.5)

0.94 (24.0) 48 0.33 (8.4) 0.16 (4.0)

0.96 (24.5) 54 0.31 (7.9) 0.18 (4.5)

0.98 (25.0) 60 0.29 (7.4) 0.20 (5.0)

1.00 (25.5) 66 0.27 (6.9) 0.22 (5.5)

1.02 (26.0) 72 0.25 (6.3) 0.24 (6.0)

1.04 (26.5) 76 0.23 (5.8) 0.26 (6.5)

1.06 (27.0) 78 0.21 (5.3) 0.28 (7.0)

1.08 (27.5) 80 0.19 (4.8) 0.30 (7.5)

1.10 (28.0) 82 0.17 (4.3) 0.32 (8.0)

1.12 (28.5) 84 0.15 (3.8) 0.34 (8.5)

1.14 (29.0) 86 0.13 (3.3) 0.36 (9.0)

1.16 (29.5) 88 0.11 (2.8) 0.38 (9.5)

1.18 (30.0) 90 0.09 (2.3) 0.40 (10.0)

1.20 (30.5) 92 0.07 (1.8) 0.42 (10.5)

1.22 (31.0) 94 0.05 (1.3) 0.44 (11.0)

1.24 (31.5) 96 0.03 (0.8) 0.46 (11.5)

1.26 (32.0) 98 0.01 (0.3) 0.48 (12.0)

1.28 (32.5) 100

NOTE: Ultrasonic measurement is to determine

1.30 (33.0) 102

flange wear only.

1.32 (33.5) 104

1.34 (34.0) 106

1.36 (34.5) 108

1.38 (35.0) 110

1.40 (35.5) 112

1.42 (36.0) 114

1.44 (36.5) 116

1.46 (37.0) 118

1.48 (37.5) 120

Flange width: 3.74" (95 mm)

Undercarriage Code: 154, 1551, 353

340

D6, 955 — 8.00" (203.2 mm)

Low Sprocket Machines
