Bushing — Link Counterbore Wear

CAUSES: Rotational sliding contact with

link counterbore and abrasives (always a

result of internal wear pitch extension).

ACCELERATORS: Horsepower, weight

and speed of machine; abrasiveness, loss

of sealing effect and snakiness, impact,

terrain packing loads, and maneuvering.

Track tension, too wide shoes, worn rear

rollers and high speed non-productive

work are main controllable variables.

EFFECTS: Reduces re-sealability of joint.

Reduces internal wear life and link rebuild-

ability after turn.

REMEDIES: Same as “Internal Pin and

Bushing Wear.”

Structural Problems on Sealed

Track Bushings

The destruction limitation of a Sealed Track

joint is usually due to structural failure in the

bushing caused by cracking or loosening

after internal and/or external wear limits are

exceeded. The most common causes, accel-

erators effects and remedies are shown here.

Also see “Sealed and Lubricated Track

Bushing Structural Problems.”

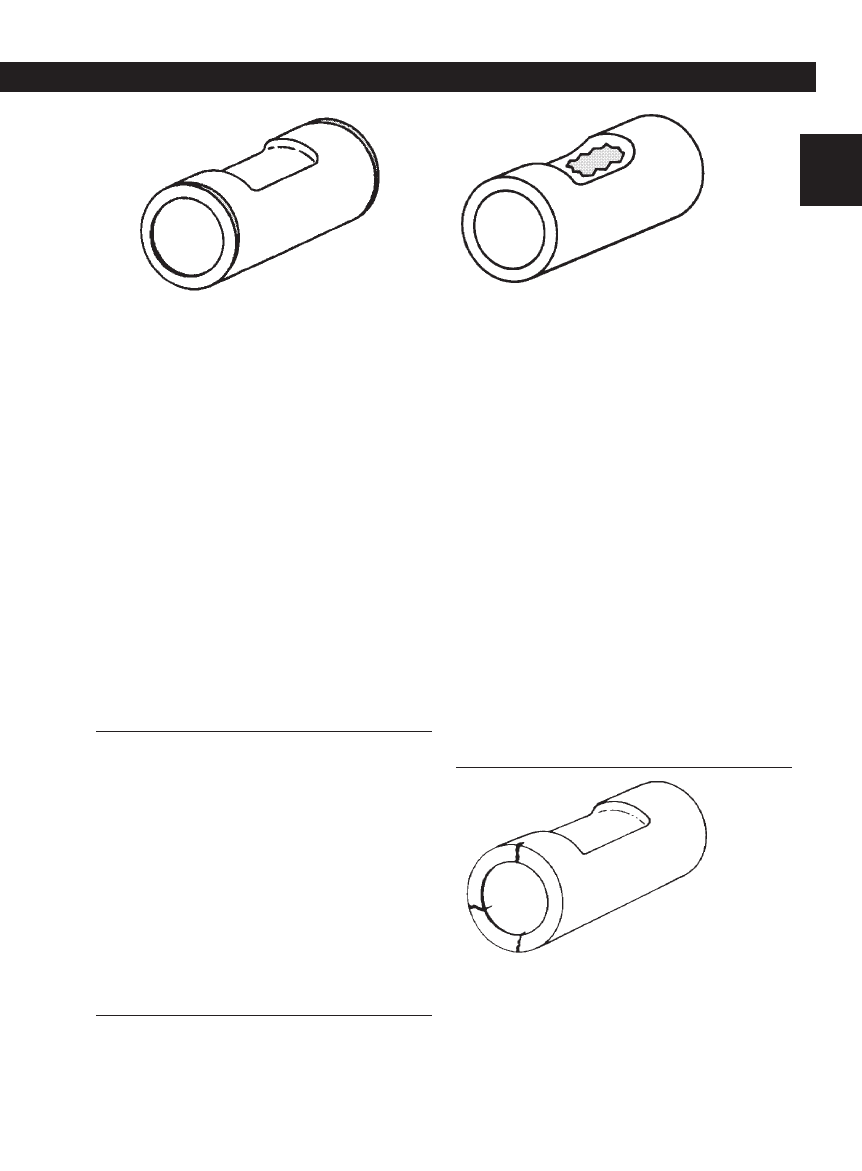

Bushing Cracks

(Through the entire wall)

CAUSES: Exceeding internal wear limit

and/or exceeding external wear limit for

respective degree of impact. (Crack can be

in several positions and configurations).

ACCELERATORS: Any loads between

sprocket and bushing caused by horse-

power, weight, speed, impact and terrain,

too-wide shoes, worn rear rollers, too tight

track and exceeding internal wear limits

are primary controllable variables.

EFFECTS: Depending on degree of cracking

and/or loss of bushing wall material, bushing

may not have strength to provide wear life

potential of back side after turn.

REMEDIES: Eliminate or reduce control-

lable accelerator variables.

Bushing End Cracks

CAUSES: Impact contact with counterbore

following internal wear and snakiness.

ACCELERATORS: Same as “Bushing End

Wear” and “Bushing Counterbore Wear.”

REMEDIES: Do not exceed internal wear

service limits.

General Information

SEALED TRACK PINS & BUSHINGS

01.G.I.,M.&M (01-93) 7/11/03 3:41 PM Page 47
