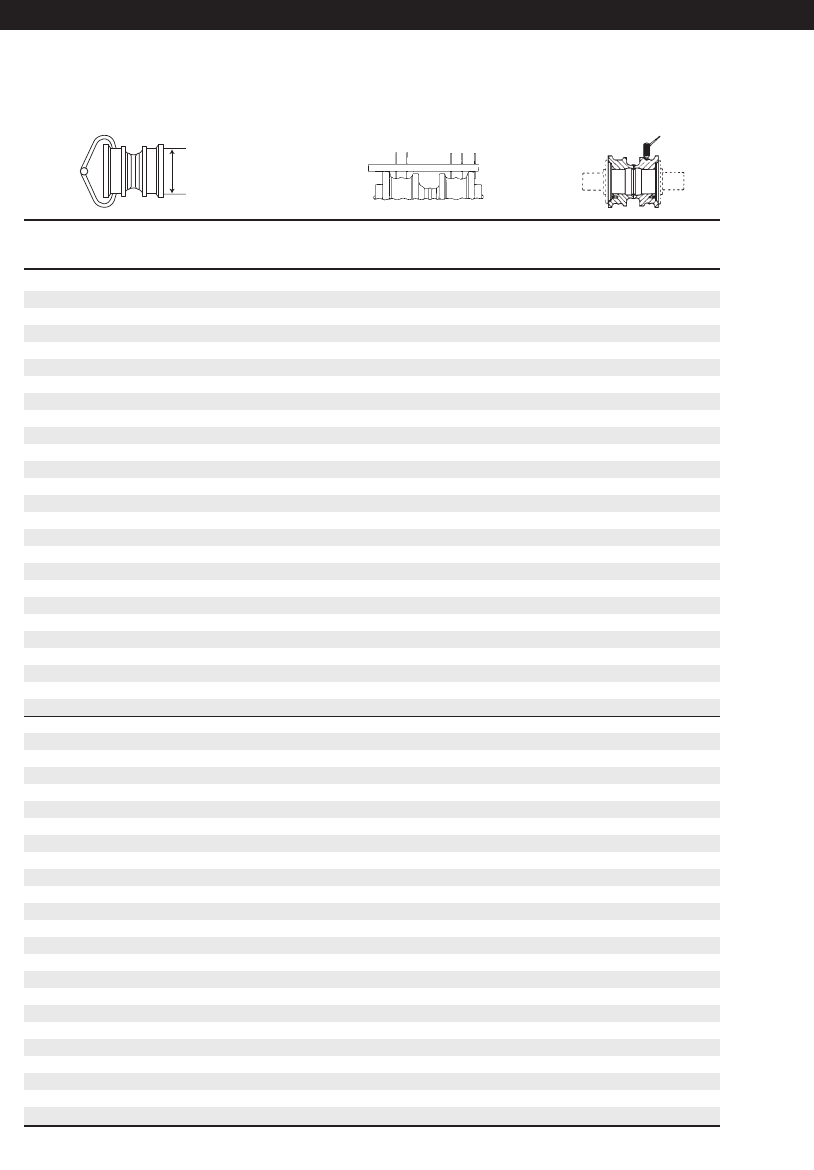

Tall Flange Track Rollers with End Collars

Tall Flange Double Flange Rollers

Use with Heavy Duty or Rotating Bushing Track

106-1625 & 26 Links

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

7.75 (197.0) 0 0.78 (20.0) 1.75 (44.5)

7.71 (196.0) 4 0.80 (20.5) 1.73 (43.9)

7.67 (195.0) 8 0.82 (21.0) 1.71 (43.4)

7.63 (194.0) 12 0.84 (21.5) 1.69 (42.9)

7.59 (193.0) 16 0.86 (22.0) 1.67 (42.4)

7.55 (192.0) 20 0.88 (22.5) 1.65 (41.9)

7.51 (191.0) 24 0.90 (23.0) 1.63 (41.4)

7.47 (189.5) 28 0.92 (23.5) 1.61 (40.9)

7.43 (188.5) 32 0.94 (24.0) 1.59 (40.4)

7.39 (187.5) 36 0.96 (24.5) 1.57 (39.9)

7.35 (186.5) 40 0.98 (25.0) 1.55 (39.4)

7.31 (185.5) 44 1.00 (25.5) 1.53 (38.9)

7.27 (184.5) 48 1.02 (26.0) 1.51 (38.4)

7.23 (183.5) 52 1.04 (26.5) 1.49 (37.8)

7.19 (182.5) 56 1.06 (27.0) 1.47 (37.3)

7.15 (181.5) 60 1.08 (27.5) 1.45 (36.8)

7.11 (180.5) 64 1.10 (28.0) 1.43 (36.3)

7.07 (179.5) 68 1.12 (28.5) 1.41 (35.8)

7.03 (178.5) 72 1.14 (29.0) 1.39 (35.3)

6.99 (177.5) 76 1.16 (29.5) 1.37 (34.8)

6.95 (176.5) 80 1.18 (30.0) 1.35 (34.3)

6.91 (175.5) 84 1.20 (30.5) 1.33 (33.8)

6.87 (174.5) 88 1.22 (31.0) 1.31 (33.3)

6.83 (173.5) 92 1.24 (31.5) 1.29 (32.8)

6.79 (172.5) 96 1.26 (32.0) 1.27 (32.3)

6.75 (171.5) 100 1.28 (32.5) 1.25 (31.8)

6.71 (170.5) 103 1.30 (33.0) 1.23 (31.2)

6.67 (169.5) 106 1.32 (33.5) 1.21 (30.7)

6.63 (168.5) 109 1.34 (34.0) 1.19 (30.2)

6.59 (167.5) 112 1.36 (34.5) 1.17 (29.7)

6.55 (166.5) 115 1.38 (35.0) 1.15 (29.2)

6.51 (165.5) 118 1.40 (35.5) 1.13 (28.7)

6.47 (164.5) 121 1.42 (36.0) 1.11 (28.2)

6.43 (163.5) 124 1.44 (36.5) 1.09 (27.7)

6.39 (162.5) 127 1.46 (37.0) 1.07 (27.2)

6.35 (161.5) 130 1.48 (37.5) 1.05 (26.7)

6.31 (160.5) 133 1.50 (38.0) 1.03 (26.2)

6.27 (159.5) 136 1.52 (38.5) 1.01 (25.7)

6.23 (158.0) 139 1.54 (39.0) 0.99 (25.1)

6.19 (157.0) 142 1.56 (39.5) 0.97 (24.6)

6.15 (156.0) 145 1.58 (40.0) 0.95 (24.1)

6.11 (155.0) 148 1.60 (40.5) 0.93 (23.6)

6.07 (154.0) 151 1.62 (41.0) 0.91 (23.1)

6.03 (153.0) 154 1.64 (41.5) 0.89 (22.6)

5.99 (152.0) 157 1.66 (42.0) 0.87 (22.1)

5.95 (151.0) 160 1.68 (42.5) 0.85 (21.6)

5.91 (150.0) 163 1.70 (43.0) 0.83 (21.1)

5.87 (149.0) 166 1.72 (43.5) 0.81 (20.6)

5.83 (148.0) 169 1.74 (44.0) 0.79 (20.1)

5.79 (147.0) 172 1.76 (44.5) 0.77 (19.6)

Flange diameter is 9.33" (237 mm)

Undercarriage Code: 140, 144, 1461, 281

144

D5H, D6M, D6N, 517 — 7.50" (190 mm)

Elevated Sprocket Machines

02.Elev.(110-145) 7/11/03 3:43 PM Page 144
