Caterpillar Custom Track Service Handbook Page 162

Service Handbook

Page of 826

/ 826

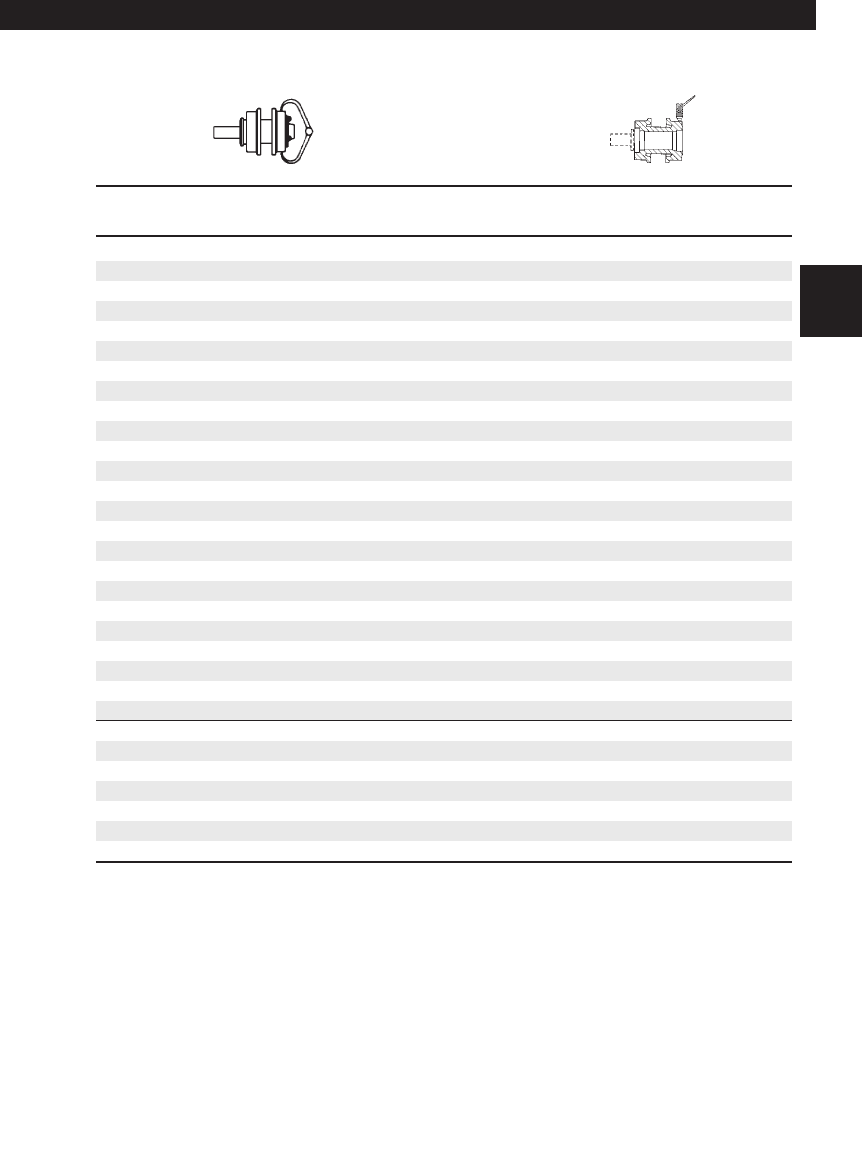

Carrier Rollers

Use with 8E2355 & 56 Sealed & Lubricated Track

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

7.38 (187.5) 0 1.86 (47.2)

7.34 (186.5) 5 1.84 (46.7)

7.30 (185.5) 10 1.82 (46.2)

7.26 (184.5) 15 1.80 (45.7)

7.22 (183.5) 20 1.78 (45.2)

7.18 (182.5) 25 1.76 (44.7)

7.14 (181.5) 30 1.74 (44.2)

7.10 (180.5) 35 1.72 (43.7)

7.06 (179.5) 40 1.70 (43.2)

7.02 (178.5) 45 1.68 (42.7)

6.98 (177.5) 50 1.66 (42.2)

6.94 (176.5) 55 1.64 (41.7)

6.90 (175.5) 60 1.62 (41.1)

6.86 (174.0) 65 1.60 (40.6)

6.82 (173.0) 70 1.58 (40.1)

6.78 (172.0) 75 1.56 (39.6)

6.74 (171.0) 79 1.54 (39.1)

6.70 (170.0) 82 1.52 (38.6)

6.66 (169.0) 85 1.50 (38.1)

6.62 (168.0) 88 1.48 (37.6)

6.58 (167.0) 91 1.46 (37.1)

6.54 (166.0) 94 1.44 (36.6)

6.50 (165.0) 97 1.42 (36.1)

6.46 (164.0) 100 1.40 (35.6)

6.42 (163.0) 103 1.38 (35.1)

6.38 (162.0) 106 1.36 (34.5)

6.34 (161.0) 109 1.34 (34.0)

6.30 (160.0) 112 1.32 (33.5)

6.26 (159.0) 115 1.30 (33.0)

6.22 (158.0) 118 1.28 (32.5)

6.18 (157.0) 121 1.26 (32.0)

Undercarriage Code: 150, 1578

161

D6H, D6R, 527 — 8.00" (203.2 mm)

Elevated Sprocket Machines

03.Elev.(146-197) 7/11/03 3:44 PM Page 161
