Caterpillar Custom Track Service Handbook Page 764

Service Handbook

Page of 826

/ 826

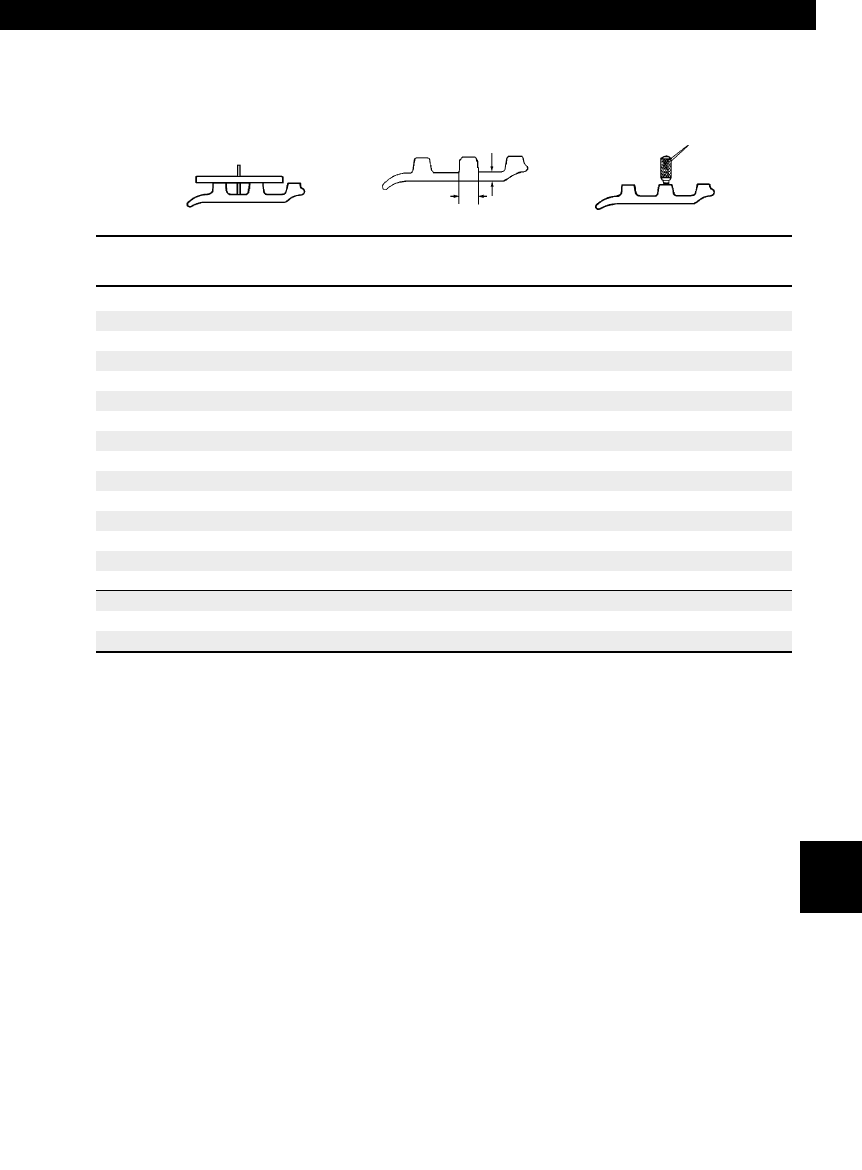

Track Shoes

Triple Grouser

31.5" (800 mm) and 35.4" (900 mm) Shoe Widths

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.20 (30.5) 0 1.70 (43.2)

1.15 (29.0) 8 1.65 (41.9)

1.10 (28.0) 16 1.60 (40.6)

1.05 (26.5) 23 1.55 (39.4)

1.00 (25.5) 30 1.50 (38.1)

0.95 (24.0) 37 1.45 (36.8)

0.90 (23.0) 44 1.40 (35.6)

0.85 (21.5) 51 1.35 (34.3)

0.80 (20.5) 58 1.30 (33.0)

0.75 (19.0) 65 1.25 (31.8)

0.70 (18.0) 72 1.20 (30.5)

0.65 (16.5) 79 1.15 (29.2)

0.60 (15.0) 86 1.10 (27.9)

0.55 (14.0) 93 1.05 (26.7)

0.50 (12.5) 100 1.00 (25.4)

0.45 (11.5) 107 0.95 (24.1)

0.40 (10.0) 114 0.90 (22.9)

0.35 (9.0) 121 0.85 (21.6)

Undercarriage Code: 607

763

E300B, EL300B, EL300 — 8.00" (203.2 mm)

Excavators

.51" (13 mm)

.94" (24 mm)

12.Exc.(710-791) 7/14/03 8:34 AM Page 763
