Caterpillar Custom Track Service Handbook Page 732

Service Handbook

Page of 826

/ 826

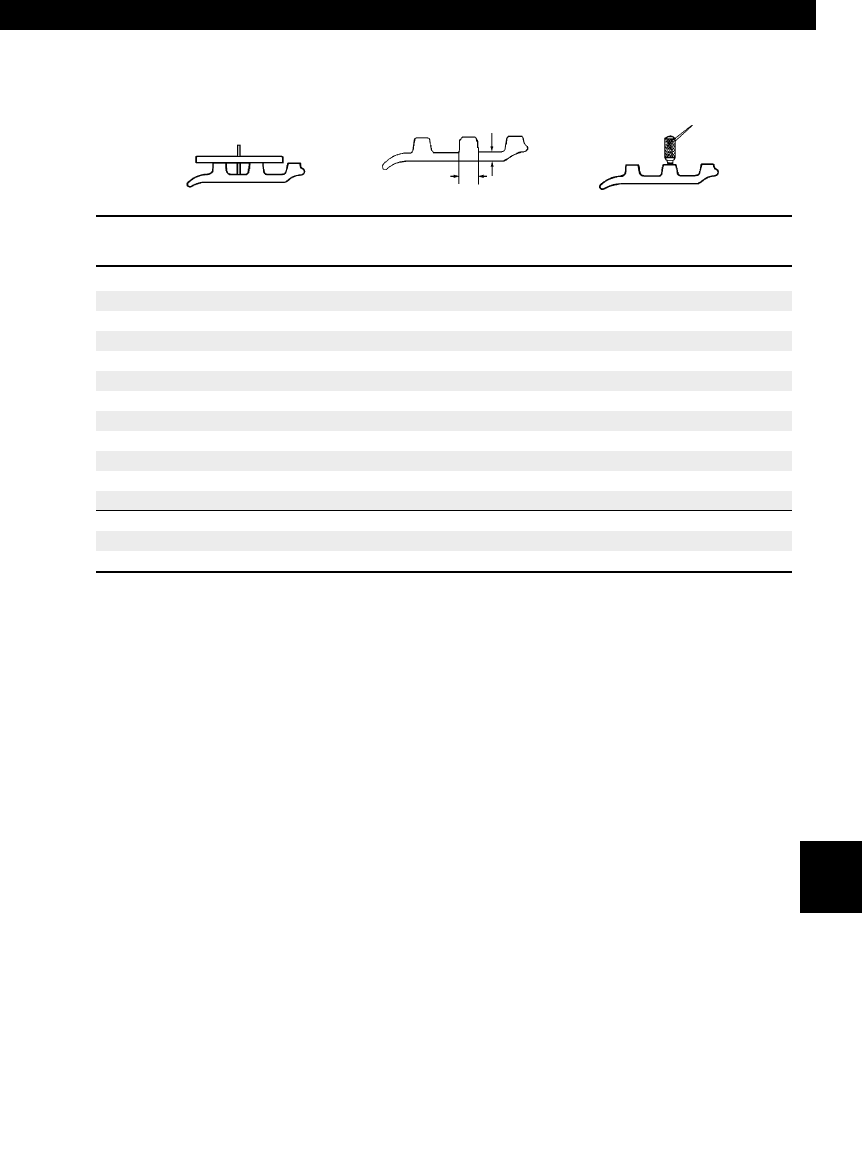

Track Shoes

Triple Grouser

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

0.80 (20.5) 0 1.10 (27.9)

0.75 (19.0) 10 1.05 (26.7)

0.70 (18.0) 19 1.00 (25.4)

0.65 (16.5) 28 0.95 (24.1)

0.60 (15.0) 37 0.90 (22.9)

0.55 (14.0) 46 0.85 (21.6)

0.50 (12.5) 55 0.80 (20.3)

0.45 (11.5) 64 0.75 (19.1)

0.40 (10.0) 73 0.70 (17.8)

0.35 (9.0) 82 0.65 (16.5)

0.30 (7.5) 91 0.60 (15.2)

0.25 (6.5) 100 0.55 (14.0)

0.20 (5.0) 109 0.50 (12.7)

0.15 (4.0) 118 0.45 (11.4)

0.10 (2.5) 127 0.40 (10.2)

Undercarriage Code: 545

731

E140 — 6.75" (171.5 mm)

Excavators

.31" (8 mm)

.79" (20 mm)

12.Exc.(710-791) 7/14/03 8:34 AM Page 731
