Caterpillar Custom Track Service Handbook Page 640

Service Handbook

Page of 826

/ 826

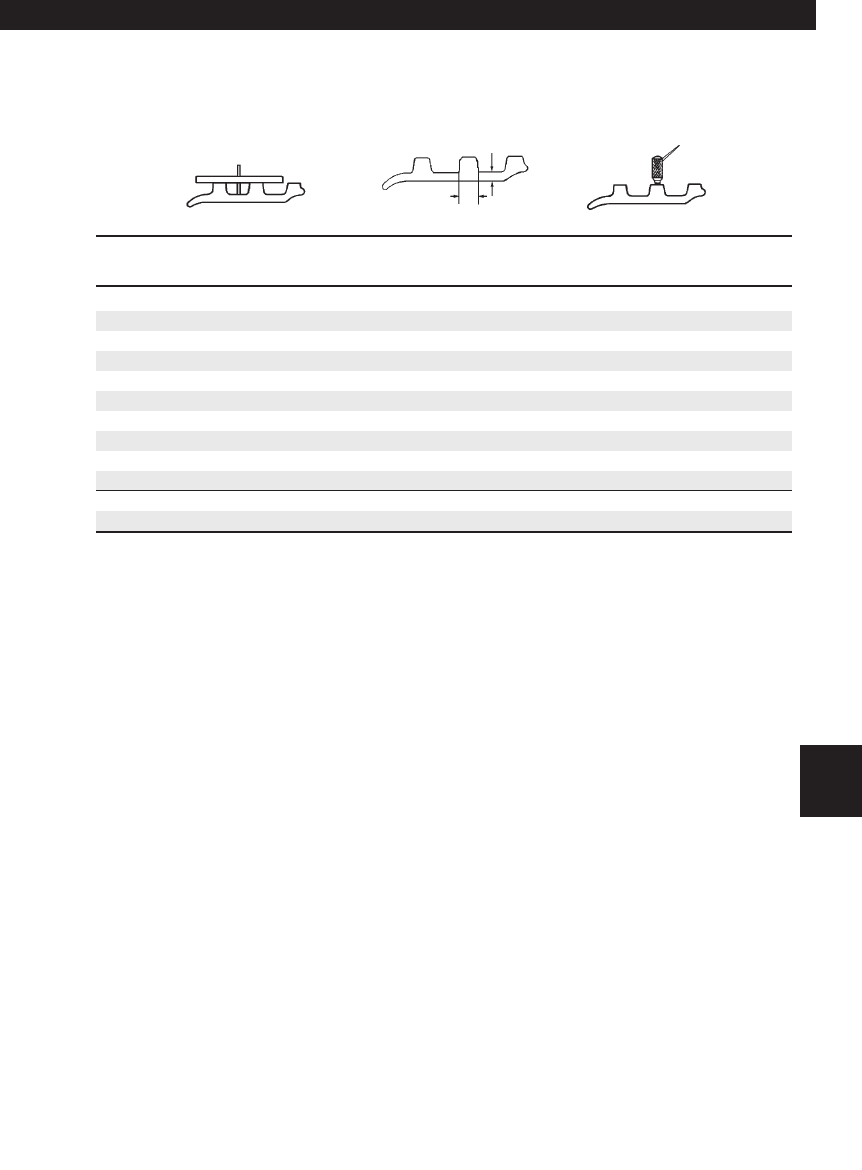

Track Shoes

Triple Grouser

6.91" (175.5 mm) Track Pitch

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

0.95 (24.0) 0 1.50 (38.1)

0.90 (23.0) 12 1.45 (36.8)

0.85 (21.5) 23 1.40 (35.6)

0.80 (20.5) 34 1.35 (34.3)

0.75 (19.0) 45 1.30 (33.0)

0.70 (18.0) 56 1.25 (31.8)

0.65 (16.5) 67 1.20 (30.5)

0.60 (15.0) 78 1.15 (29.2)

0.55 (14.0) 89 1.10 (27.9)

0.50 (12.5) 100 1.05 (26.7)

0.45 (11.5) 111 1.00 (25.4)

0.40 (10.0) 122 0.95 (24.1)

Undercarriage Code: 433, 434, 440, 445, 452, 453

639

225, 219, 215 S.A., FB221, FB217, DL221 — 6.91" (175.5 mm)

Excavators

.51" (13 mm)

1.00" (25.5 mm)

11.Exc.(608-709) 7/14/03 7:33 AM Page 639
