Caterpillar Custom Track Service Handbook Page 192

Service Handbook

Page of 826

/ 826

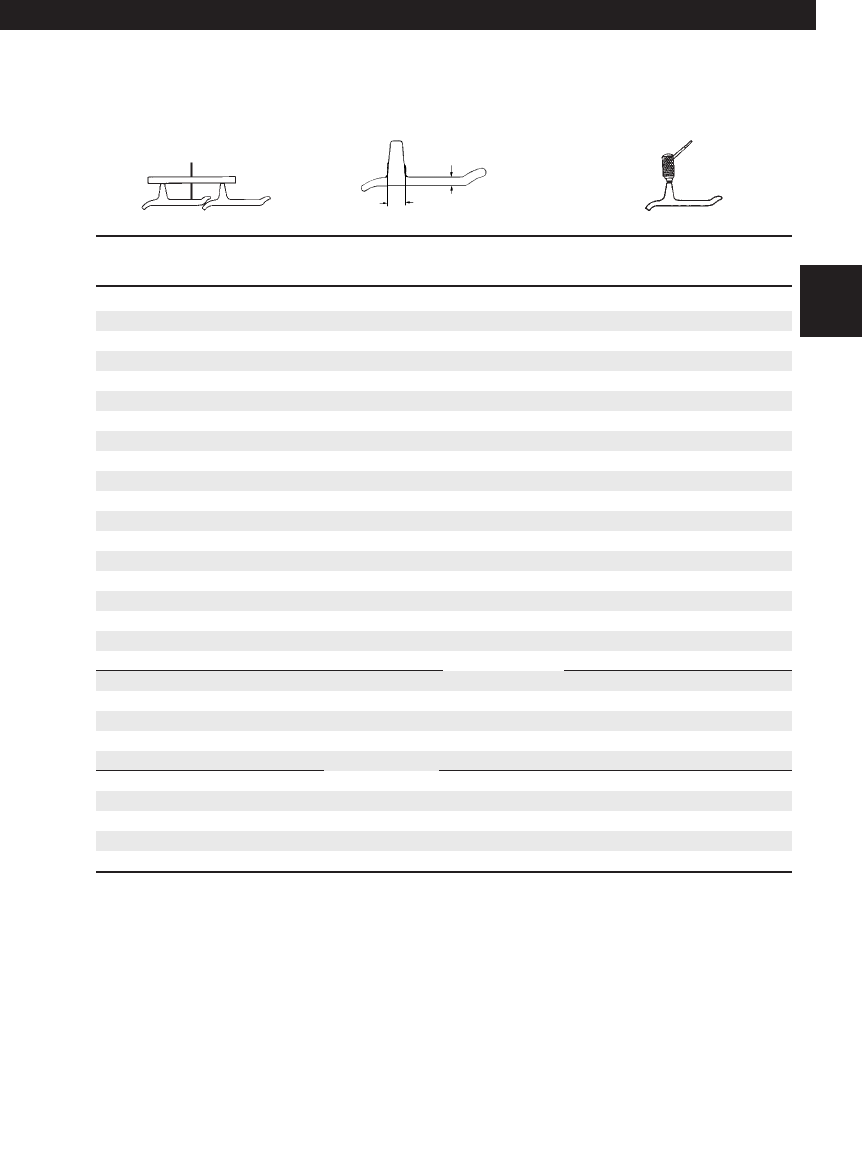

Track Shoes

Extreme Service

Current

Depth Gauge High Impact Low Impact Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

3.30 (84.0) 0 0 4.05 (102.9)

3.20 (81.5) 6 5 3.95 (100.3)

3.10 (78.5) 12 10 3.85 (97.8)

3.00 (76.0) 18 15 3.75 (95.3)

2.90 (73.5) 24 20 3.65 (92.7)

2.80 (71.0) 30 25 3.55 (90.2)

2.70 (68.5) 36 30 3.45 (87.6)

2.60 (66.0) 42 35 3.35 (85.1)

2.50 (63.5) 48 40 3.25 (82.6)

2.40 (61.0) 54 44 3.15 (80.0)

2.30 (58.5) 60 48 3.05 (77.5)

2.20 (56.0) 65 52 2.95 (74.9)

2.10 (53.5) 70 56 2.85 (72.4)

2.00 (51.0) 75 60 2.75 (69.9)

1.90 (48.5) 80 64 2.65 (67.3)

1.80 (45.5) 85 68 2.55 (64.8)

1.70 (43.0) 90 72 2.45 (62.2)

1.60 (40.5) 95 76 2.35 (59.7)

1.50 (38.0) 100 80 2.25 (57.1)

1.40 (35.5) 105 84 2.15 (54.6)

1.30 (33.0) 110 88 2.05 (52.1)

1.20 (30.5) 115 92 1.95 (49.5)

1.10 (28.0) 120 96 1.85 (47.0)

1.00 (25.5) 100 1.75 (44.4)

0.90 (23.0) 104 1.65 (41.9)

0.80 (20.5) 108 1.55 (39.4)

0.70 (18.0) 112 1.45 (36.8)

0.60 (15.0) 116 1.35 (34.3)

0.50 (12.5) 120 1.25 (31.7)

Undercarriage Code: 178, 182, 183, 184

191

D8L, D8N, D8R, 578, 583R — 8.50" (215.9 mm)

Elevated Sprocket Machines

.75" (19 mm)

1.48" (37.6 mm)

03.Elev.(146-197) 7/11/03 3:44 PM Page 191
