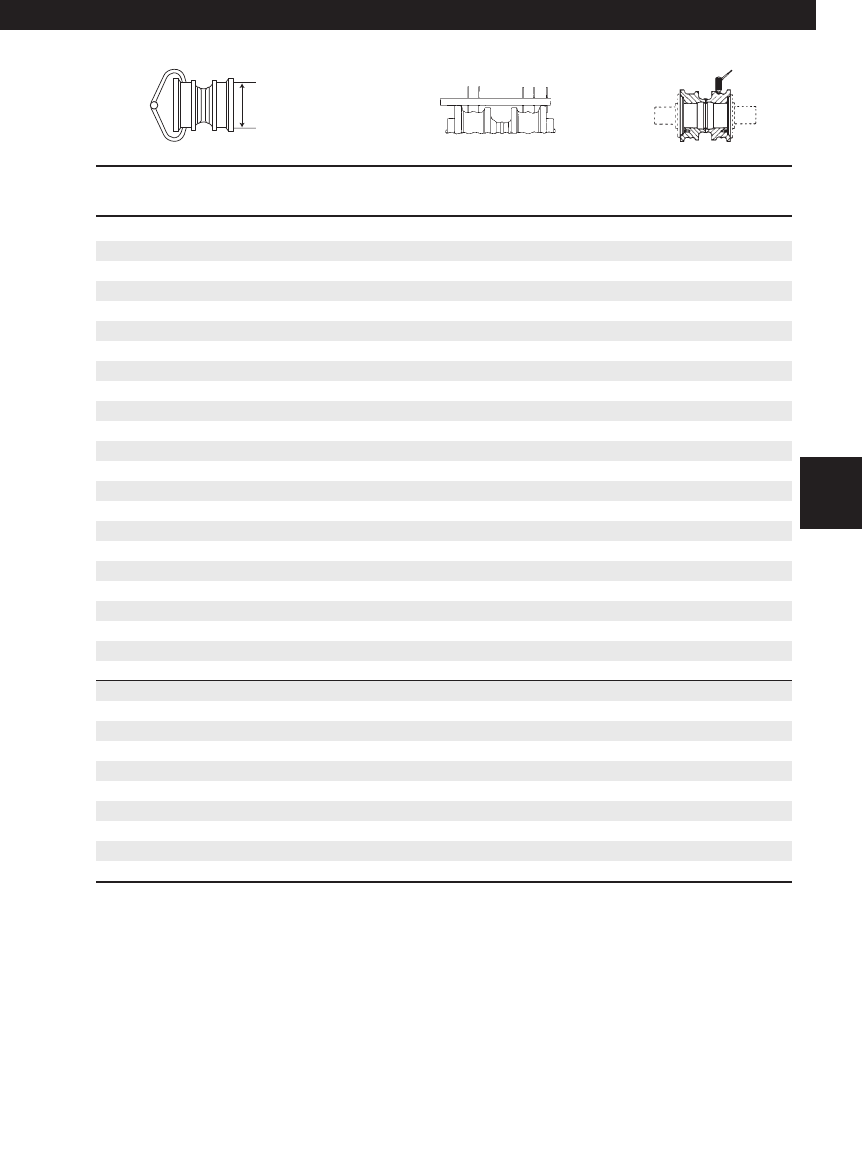

Track Rollers

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

8.76 (222.5) 0 0.74 (19.0) 2.06 (52.3)

8.72 (221.5) 5 0.76 (19.5) 2.04 (51.8)

8.68 (220.5) 10 0.78 (20.0) 2.02 (51.3)

8.64 (219.5) 15 0.80 (20.5) 2.00 (50.8)

8.60 (218.5) 20 0.82 (21.0) 1.98 (50.3)

8.56 (217.5) 25 0.84 (21.5) 1.96 (49.8)

8.52 (216.5) 30 0.86 (22.0) 1.94 (49.3)

8.48 (215.5) 35 0.88 (22.5) 1.92 (48.8)

8.44 (214.5) 40 0.90 (23.0) 1.90 (48.3)

8.40 (213.5) 45 0.92 (23.5) 1.88 (47.8)

8.36 (212.5) 50 0.94 (24.0) 1.86 (47.2)

8.32 (211.5) 55 0.96 (24.5) 1.84 (46.7)

8.28 (210.5) 60 0.98 (25.0) 1.82 (46.2)

8.24 (209.5) 65 1.00 (25.5) 1.80 (45.7)

8.20 (208.5) 70 1.02 (26.0) 1.78 (45.2)

8.16 (207.5) 75 1.04 (26.5) 1.76 (44.7)

8.12 (206.0) 80 1.06 (27.0) 1.74 (44.2)

8.08 (205.0) 85 1.08 (27.5) 1.72 (43.7)

8.04 (204.0) 90 1.10 (28.0) 1.70 (43.2)

8.00 (203.0) 94 1.12 (28.5) 1.68 (42.7)

7.96 (202.0) 96 1.14 (29.0) 1.66 (42.2)

7.92 (201.0) 98 1.16 (29.5) 1.64 (41.7)

7.88 (200.0) 100 1.18 (30.0) 1.62 (41.1)

7.84 (199.0) 102 1.20 (30.5) 1.60 (40.6)

7.80 (198.0) 104 1.22 (31.0) 1.58 (40.1)

7.76 (197.0) 106 1.24 (31.5) 1.56 (39.6)

7.72 (196.0) 108 1.26 (32.0) 1.54 (39.1)

7.68 (195.0) 110 1.28 (32.5) 1.52 (38.6)

7.64 (194.0) 112 1.30 (33.0) 1.50 (38.1)

7.60 (193.0) 114 1.32 (33.5) 1.48 (37.6)

7.56 (192.0) 116 1.34 (34.0) 1.46 (37.1)

7.52 (191.0) 118 1.36 (34.5) 1.44 (36.6)

7.48 (190.0) 120 1.38 (35.0) 1.42 (36.1)

Flange diameter is 10.24" (260 mm)

Undercarriage Code: 1655

417

D7 — 8.50" (215.9 mm)

Cat Classic Undercarriage

08.Classic(388-425) 7/14/03 7:31 AM Page 417
