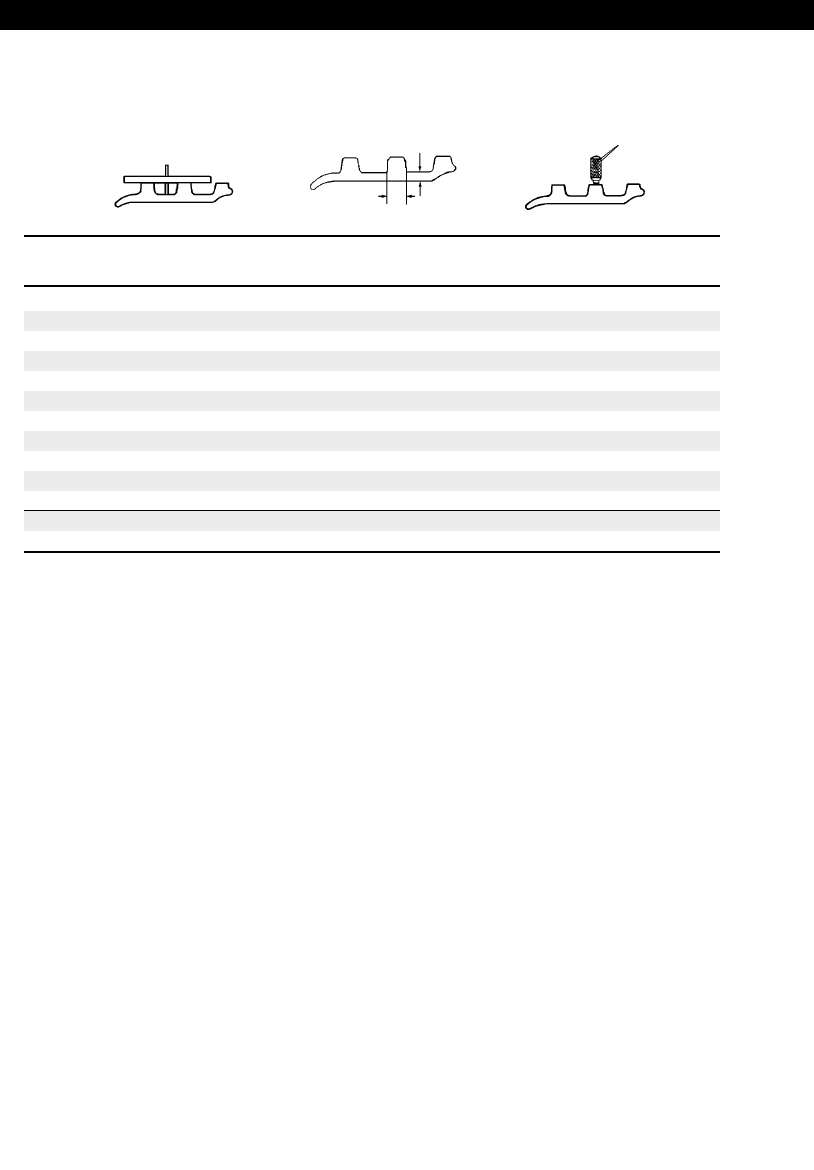

Track Shoes

Triple Grouser

23.6" (600 mm) Shoe Width

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.00 (25.5) 0 1.40 (35.6)

0.95 (24.0) 10 1.35 (34.3)

0.90 (23.0) 20 1.30 (33.0)

0.85 (21.5) 30 1.25 (31.8)

0.80 (20.5) 40 1.20 (30.5)

0.75 (19.0) 50 1.15 (29.2)

0.70 (18.0) 60 1.10 (27.9)

0.65 (16.5) 70 1.05 (26.7)

0.60 (15.0) 80 1.00 (25.4)

0.55 (14.0) 90 0.95 (24.1)

0.50 (12.5) 100 0.90 (22.9)

0.45 (11.5) 110 0.85 (21.6)

0.40 (10.0) 120 0.80 (20.3)

Undercarriage Code: 606

772

E300 — 7.50" (190 mm)

Excavators

.39" (10 mm)

.87" (22 mm)

12.Exc.(710-791) 7/14/03 8:34 AM Page 772
