Roller Flange Sequence (cont’d)

Rollers Roller Position

Model Per Side F 234567

D8NC (8.00") 7 D D S D S D S

D8H, D8K 7 D D S D S D S

D8H, D8K 6 D S D S D S

D9, D9D, D9E, 7 D D S D S D S

D9G, D9H

931 5 SDSDS

933C, 933E, 933F 5 D D S D S

935 5 D S S D S

941 5 DDSDS

951B, 951 LGP 5 S D S D S

951A 5 D S D S D

955F, 955E, 955C 5 D D S D S

955H 6 S DDDDS

955K, 955L, LGP 6 S D D S D S

977D 7 S DDDDDS

977E, 977H, 977K 7 D D S D S D S

983 7 DDSDSDS

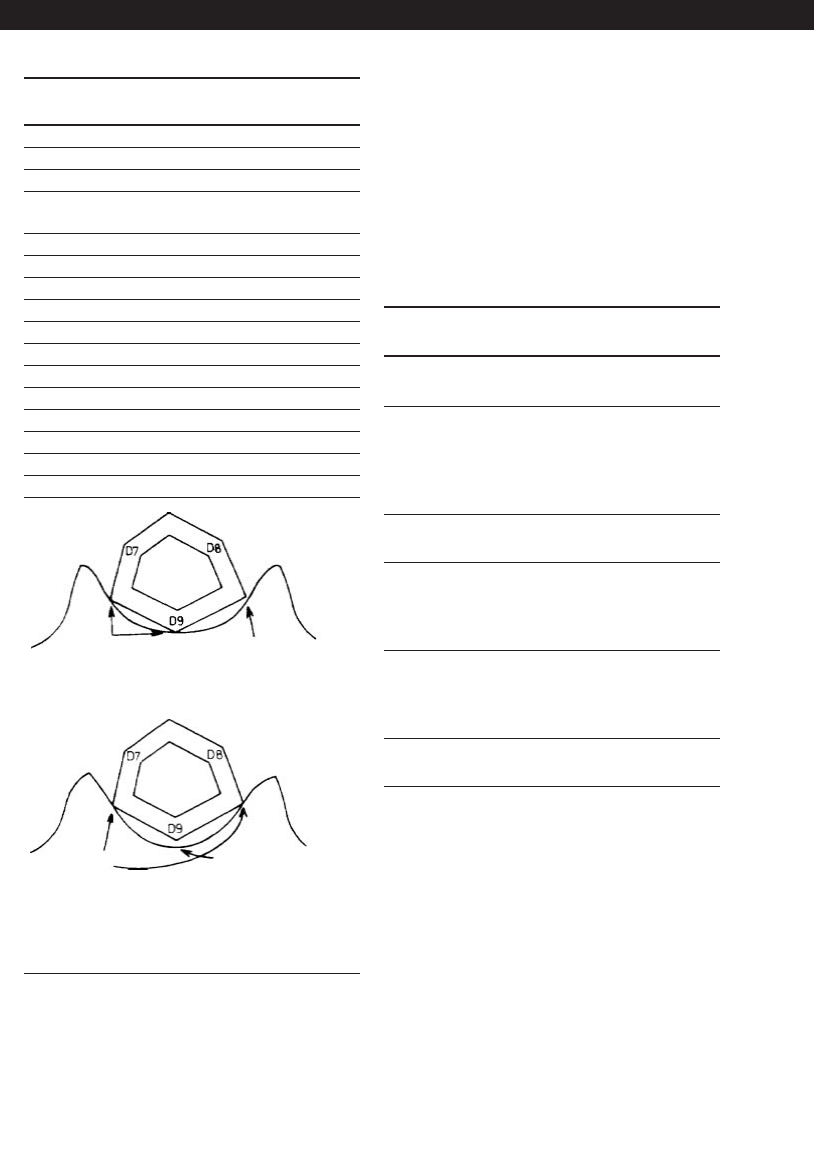

Do Not Reuse Sprocket with turned

(or replaced) Bushings

OK to Reuse Sprocket with turned

(or replaced) Bushings

Sprockets

See pages 66 through 70 for detailed sprocket

information.

Measurement — Use the appropriate

sprocket reuse indicator gauge (D9, D8,

D7 — 5P8617; D6, D5, D4 — 5P8616) at

bushing turn time to determine reusability.

Sprocket Bolt Torques — Use the torque-

turn tightening method on page 70.

Sprocket Bolt Torque Specifications

Additional

Model Bolt Size Torque Turn

D3 1/2" 50 ± 8 ft. lb. +1/3 turn

D4 70 ± 10 Nm

D5 5/8" 130 ± 30 ft. lb. +1/3 turn

D5C 175 ± 40 Nm

561

955

935C M16 75 ± 15 ft. lb. +1/3 turn

100 ± 20 Nm

D7 3/4" 220 ± 40 ft. lb. +1/3 turn

571 300 ± 50 Nm

572

977

D8 7/8" 250 ± 50 ft. lb. +1/3 turn

D9 340 ± 70 Nm

583

983

D9 1" 250 ± 50 ft. lb. +1/3 turn

594 340 ± 70 Nm

Guards

See page 71 for detailed information on track

guiding guards and track roller guards.

Touch

No Touch

Touch

No Touch

254

COMPONENTS

Low Sprocket Machines

05.Low(246-325) 7/11/03 3:52 PM Page 254
