CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 106

Operation and Maintenance Manual
106 SEBU8213-04
Maintenance Section
Engine Air Precleaner - Clean
g011 92559

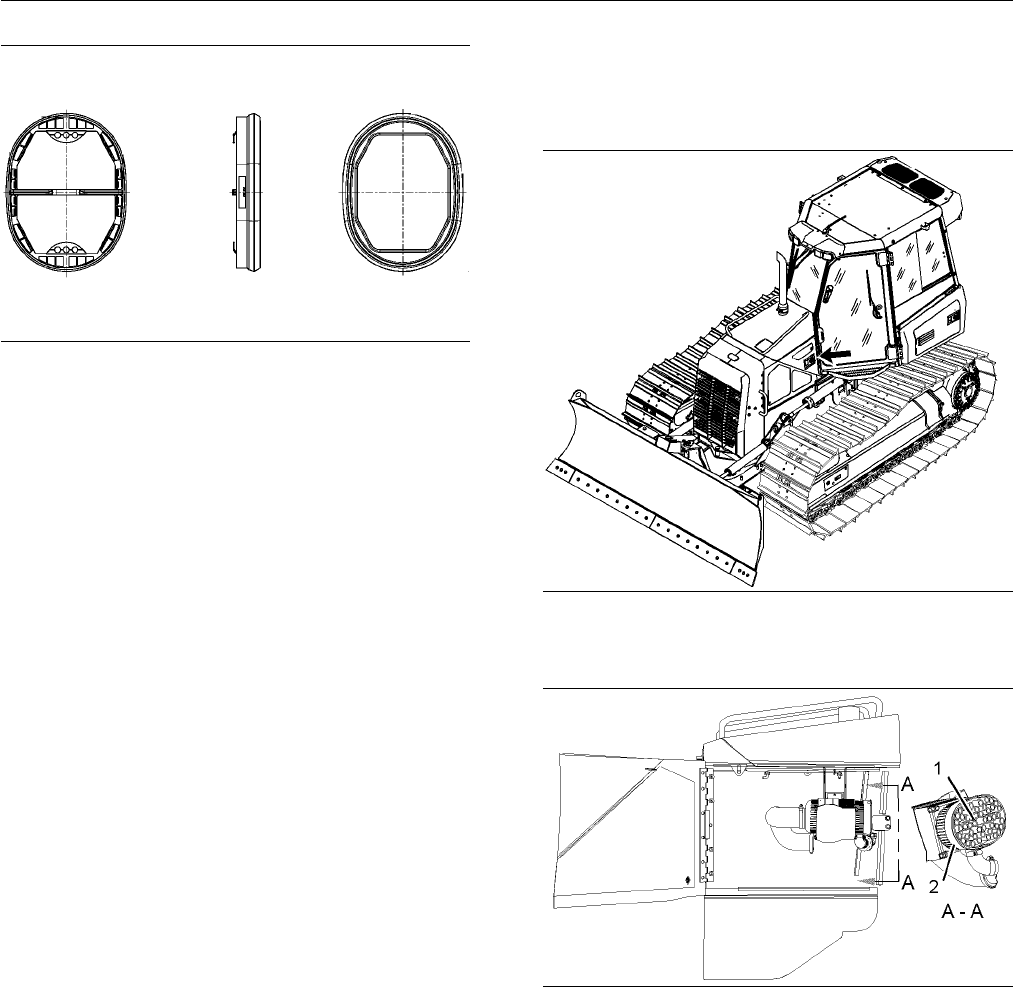

Illustration 138
Secondary air cleaner elemen t
3. Remove the secondary element. The secondary
element is on the end of the air cleaner group
away from the cab.
4. Cover the air inlet opening. Clean the inside of
the air cleaner housing.
5. Inspect the gasket between the air inlet and the
housing. If the gasket is damaged, replace the
element.
6. Uncover the air inlet opening. Install a new
secondary element.
7. Reinstall the primary air filter element.
Reference: See “Engine Air Filter Primary
Element - Clean/Replace” for more information.
8. Install the air cleaner housing cover.
9. Close the engine access door.
i02518587
Engine Air Prec leaner - Clean
SMCS Code: 1050
g01260135
Illustration 139
1. Open the left engine access cover.
g01260248
Illustration 140
2. Inspect the engine air precleaner for dirt and for
trash.
3. Unscrew M6 allen head screw (1) in order
to remove the integrated precleaner body (2)
completely.
4. Use pressurized air to clean the tubes. Put the
tubes on a fl at surface. Direct the pressurized air
into the tubes from the top. This loosens up the
dirt.
a. Loosen hard deposits of dust on the precleaner
body by soaking in an appropriate cleaning
agent. Then, wash the precleaner body with
a spray of water.
