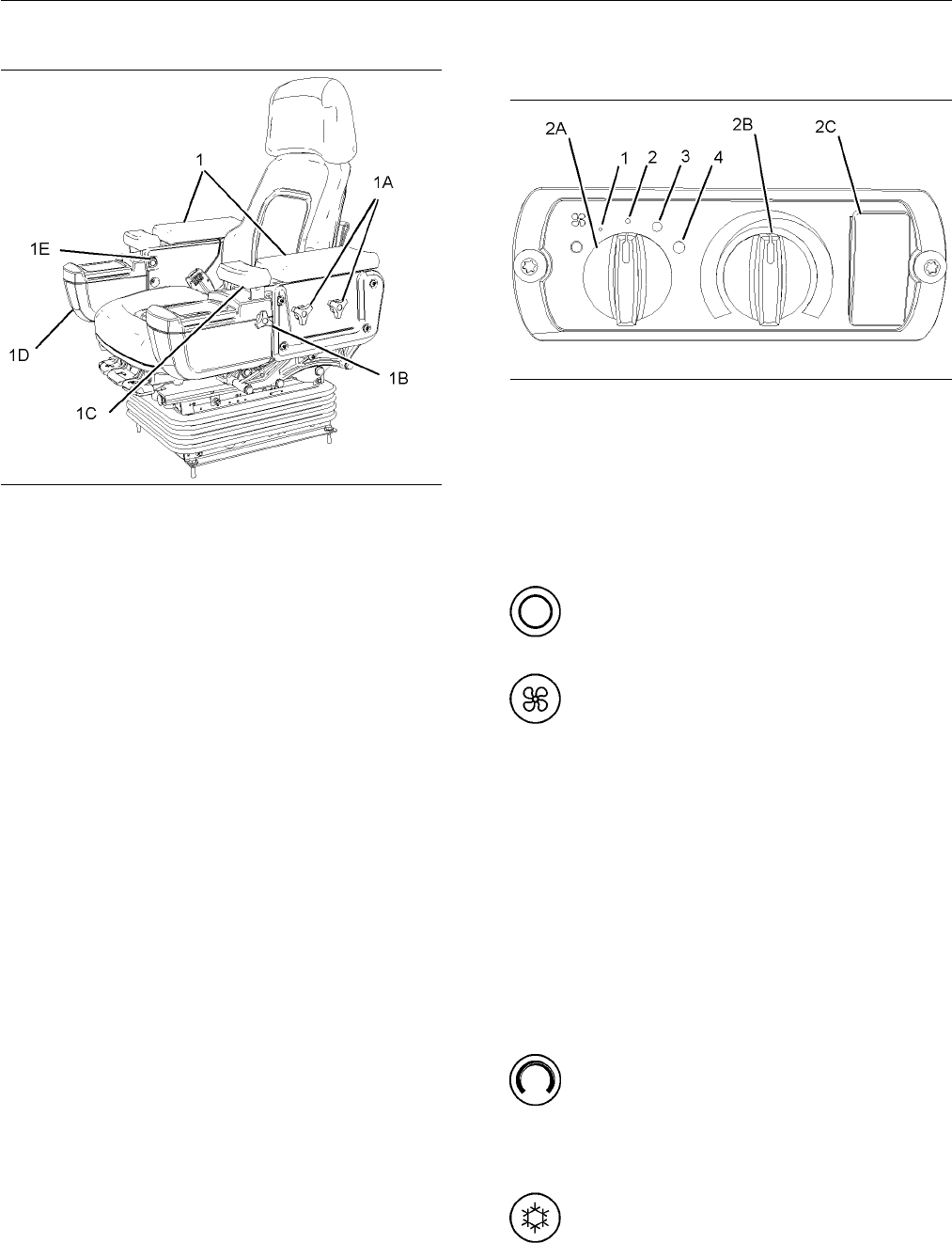

Adjustable Armrests (1)
g01269364
Illustration 49
See “Seat” in this manual for information on adjusting
the left armrest and right armrest (1).
Control Supports
Use the following procedure in order to adjust both
of the control supports (1D) and wrist rests (1C), if
necessary.
1. Loosen knob (1B) on the outside of the wrist rest
(1C).
2. Pull wrist rest (1C) in an upward direction or push
the wrist rest downward. Move the wrist rest to
the desired height.
3. Tighten the knob.
4. When the appropriate button (1E) on armrest (1) is
pushed, the operator must slide the seat controls
to the desired location. This moves seat control
(1D) forward or backward.
Air Conditioning and Heating
Control (2)
g01269368
Illustration 50
Enclosed
ROPS
Open ROPS enclosure arrangement has heating only.
(2A) Fan control knob
(2B) Temperature control knob
(2C) Air conditioner switch
Fan Con
trol
OFF – Move knob (2A) to this position in
order t
o stop the blower fan motor.
Fan Spe
ed Switch (2A) – This knob
controls the four-speed blower fan motor.
LOW (1) – Move knob (2A) to this position for the
lowest fan speed.
MEDIUM LOW (2) – Move knob (2A) to this position
for a medium low fan speed.
MEDIUM HIGH (3) – Move knob (2A) to this position
for a medium high fan speed.
MAXIMUM (4) – Move knob (2A) to this position for
a maximum fan speed.
Temperature Control
Tem
perature Control Knob (2B) – Turn
knob(2B) counterclockwise to COOL. Turn
knob (2B) clockwise to WARM.
Ai
r Conditioner Switch
Air Conditioner – Press in the top of
sw
itch (2C) in order to turn on the air
conditioner. Return the switch to the middle
position (2C) in order to turn off the air conditioner.
