CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 107

Operation and Maintenance Manual
SEBU8213-04 107
Maintenance Section
Engine Oil Level - Check
b. Blow dry the pre
cleaner body completely.
5. Install precleaner body (2) into the engine air
precleaner. L
atch the precleaner body in place.
6. Install allen head screw (1). Tighten the allen head
screwto6±2N
·m (5 ± 1 lb ft) only.
7. Close the left engine access door.
NOTICE
Service the air cleaner only with the engine stopped.
Engine damage could result.
i02801875
Engine Oil Level - Check
SMCS Code: 1302; 1318; 1326
Hot oil and components can cause personal in-
jury.
Do not allow hot oil or components to c ontact
skin.
NOTICE
Perfor
m this maintenance with the engine stopped.
NOTICE
Do not under fill or overfill engine crankcase with oil.
Either condition can cause engine damage.

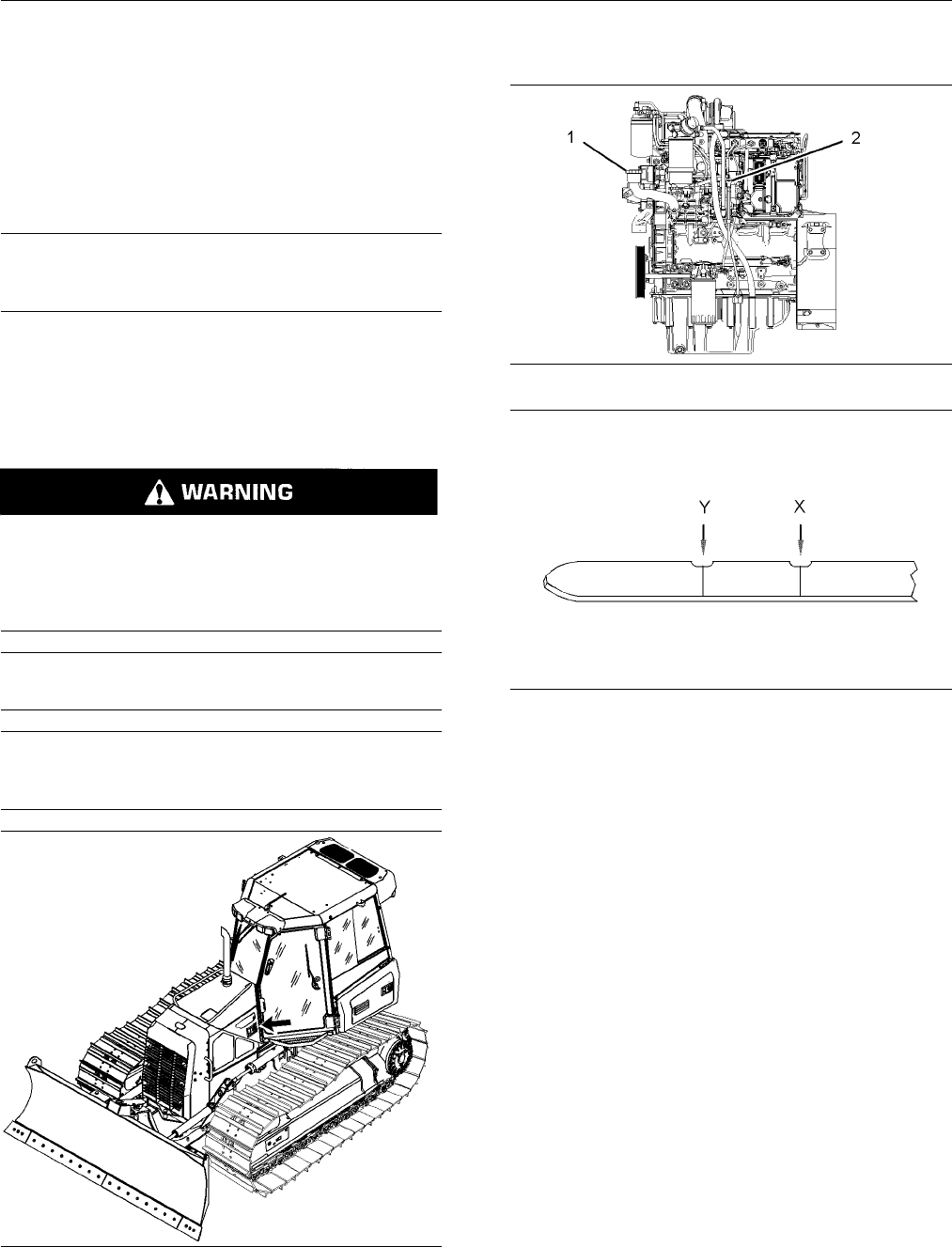

g01260135
Illustration 141
1. Open the engine
access door that is on the left
side of the machine.
g01400187
Illustration 142
g01165 836
Illustration 143
(Y) “Min” mark. (X) “Ma x” mark.
2. Check the dipstick (2) while the engine is stopped.
Maintain the oil level between the “LOW” mark
and the “FULL” mark.
Note: Ensure that the engine is level in order to
obtain a true level indication.
Note: When you operate the machine on severe
slopes, the oil level in the engine crankcase must be
at the “FULL” mark on the dipstick.
3. Remove oil filler cap (1). If necessary, add oil.
4. Clean the oil filler cap and install the oil filler cap.
5. Close the left engine access door.
Note: For the best results, check the engine o il level
after the engine has been off for two hours or more.
This will allow all of the oil to drain back into the
engine crankcase.
