Safety Section
Additional Messages
g01261266

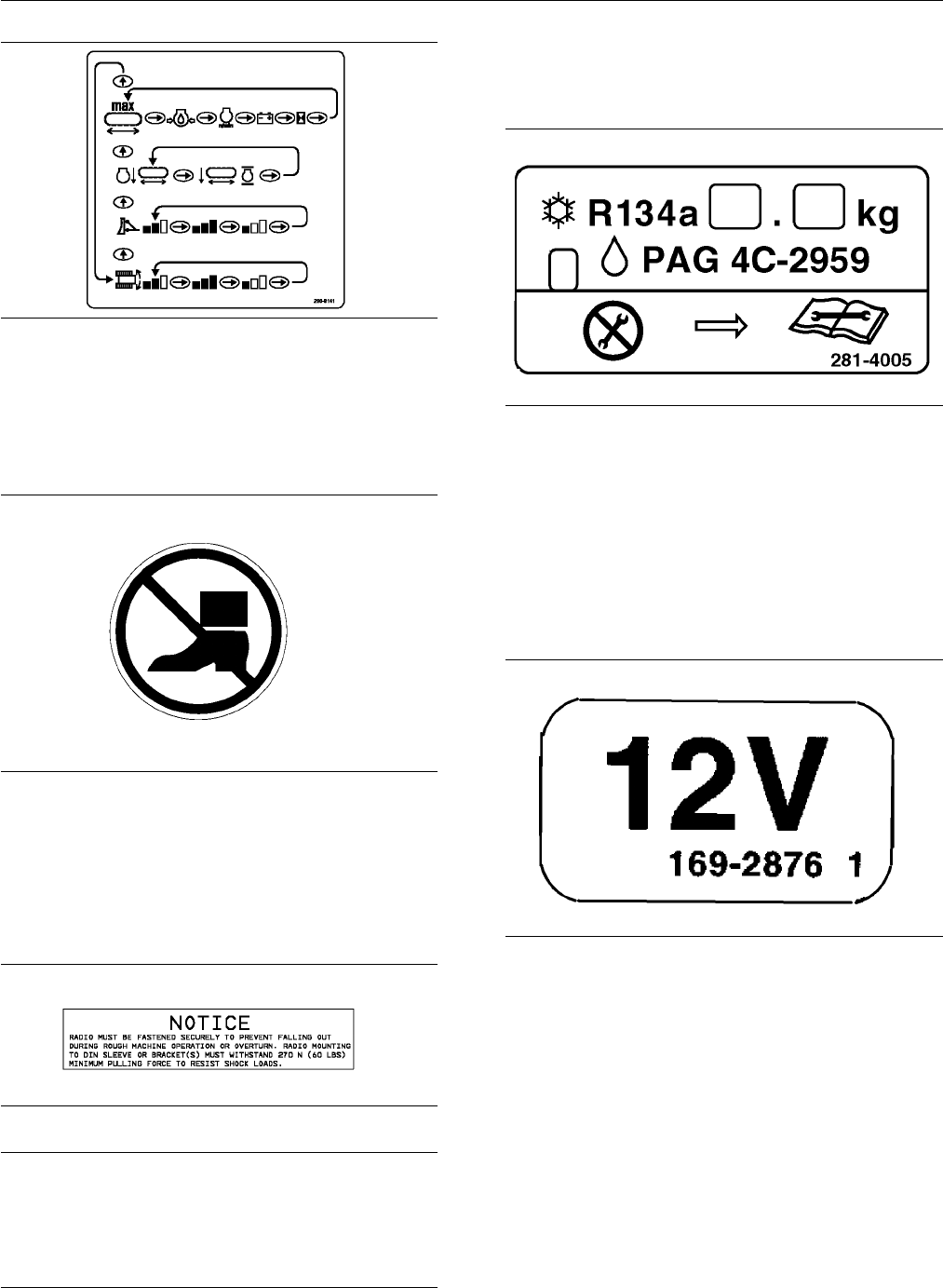

Illustration 7
Compact Instrument Cluster Film
No Step (2)
This message is located on the cover for the angle
cylinders (if equipped).
g0090
6093
Illustration 8
Do not step on the angle cylinders. Follow this
instruction in order to perform work safely.
Radio (3)
Thi
s message is located on the cover for the radio.
g00907584
Illustration 9
NOTICE
Radio must be fastened securely to prevent falling out
during rough machine operation or overturn. Radio
mounting to DIN sleeve or bracket(s) must withstand
270 N (60 lb) minimum pulling force to resist shock
loads.
Air Conditione
r (4) (If equipped)
This message is located behind the air conditioner
compressor on
the right side of the engine.
g01399514
Illustration 10
This message for the air conditioner has the
appropriate information for the following services: the
air conditioner lubricant, the refrigerant charge, and
the refrigerant capacity.
Battery (5)
This message is located on the inside of the access
door for the battery.
g01399516
Illustration 11
