CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 53

Operation and Maintenance Manual
SEBU8213-04 53
Operation Section
Machine Operation

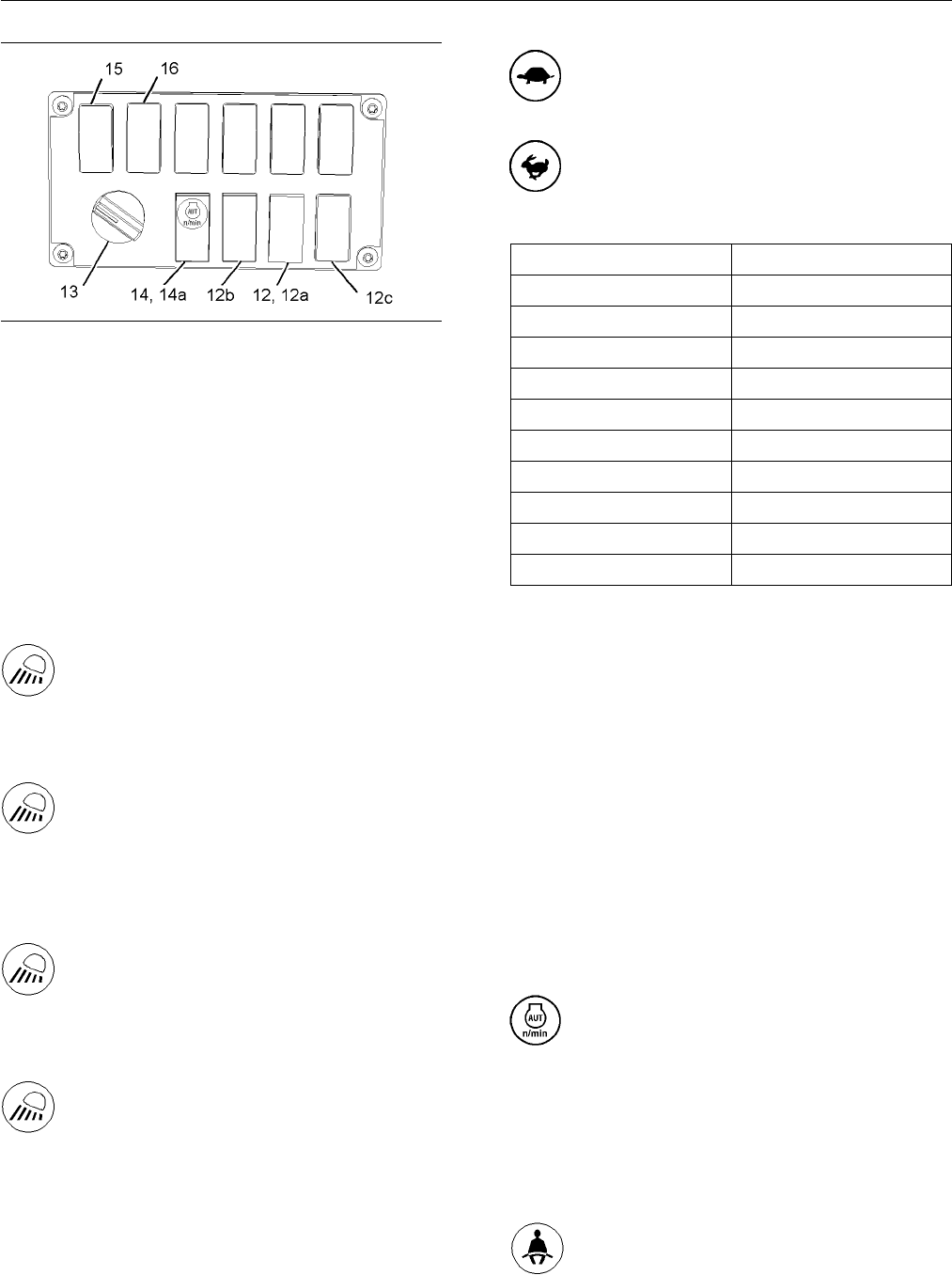

g01693534
Illustration 72
(12) Work lights
(12a) Front floodlights (If equipped)
(12b) Front lights for long range (If equipped)
(12c) Rear cab lights (If equipped)
(13) Engine throttle control (knob)
(14) Fuel efficient rever se
(14a) Indicator light for seat belt (If equipped)
(15) Parking brake switch
(16) Hydraulic lockout
Depress the work light switch (12) in order to turn on
all of the machine lights.
Work Lights (12)
Work lights – This switch turns on all the
lights.
Front Floodlights (12a) (If equipped)
Front Floodlights – Usethisswitchto
operate the front floodlights, if equipped.
Front Cab Lights for Long Range (12b)
(If equipped)
Front Cab Lights for Long Range – Use
this switch to operate the front cab lights for
the l
ong range, if equipped.
Rear C ab Lights (12c) (If equipped)
Rea
r Cab Lights – Use this switch to
operate the rear cab lights, if equipped.
Engine Thro ttle Contr ol (13)
Engine throttle control (13) controls the engine speed.
Low Idle – Rotate knob (13)
counterclockwise in order to lower
the idle speed
.
High Idle – Rotate knob (13) clockwise in
order to increase the idle speed.
Table 7
Throttle Position Engine RPM
1 950
2 1100
3 1175
4 1250
5
1400
6 1550
7
1700
8 1850
9 2000
10 2150
Note: T
he engine speed does not increase above
2000 RPM until the hydraulic oil temperature exceeds
15 °C (59.0 °F). Then, the engine speed will slowly
increa
se up to 2150 RPM.
Fuel E
fficient R everse (14)
Fuel Efficient Reverse (14) automatically reduces
engi
ne speed when the machine is traveling in
reverse. Fuel Efficient Reverse is designed to reduce
fuel consumption and noise.
The engine rpm will recover automatically to the
setting of the engine speed dial when the machine is
com
manded to travel forward or when the machine is
in neutral. The engine rpm will also increase as you
increase the desired REVERSE speed.
Fuel Efficient Reverse – Fuel efficient
reverse is activated when the engine start
sw
itch is turned to the ON position. The
indicator light on the switch will light. When you
press fuel efficientreverseswitch(14),thefunction
ch
anges from ON to OFF, and vice versa.
Indicator Light for Seat Belt (14a) (If
equipped)
Seat belt – This light indicates when the
seat belt is not used.
