CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 69

Operation and Maintenance Manual
SEBU8213-04 69
Operation Section
Engine Starting
Engine Starting
i03322101
Engine Starting
SMCS Code: 1000; 7000
1. Move the b at
tery disconnect switch to the ON
position.
2. Move the im
plement controls to the HOLD
position.

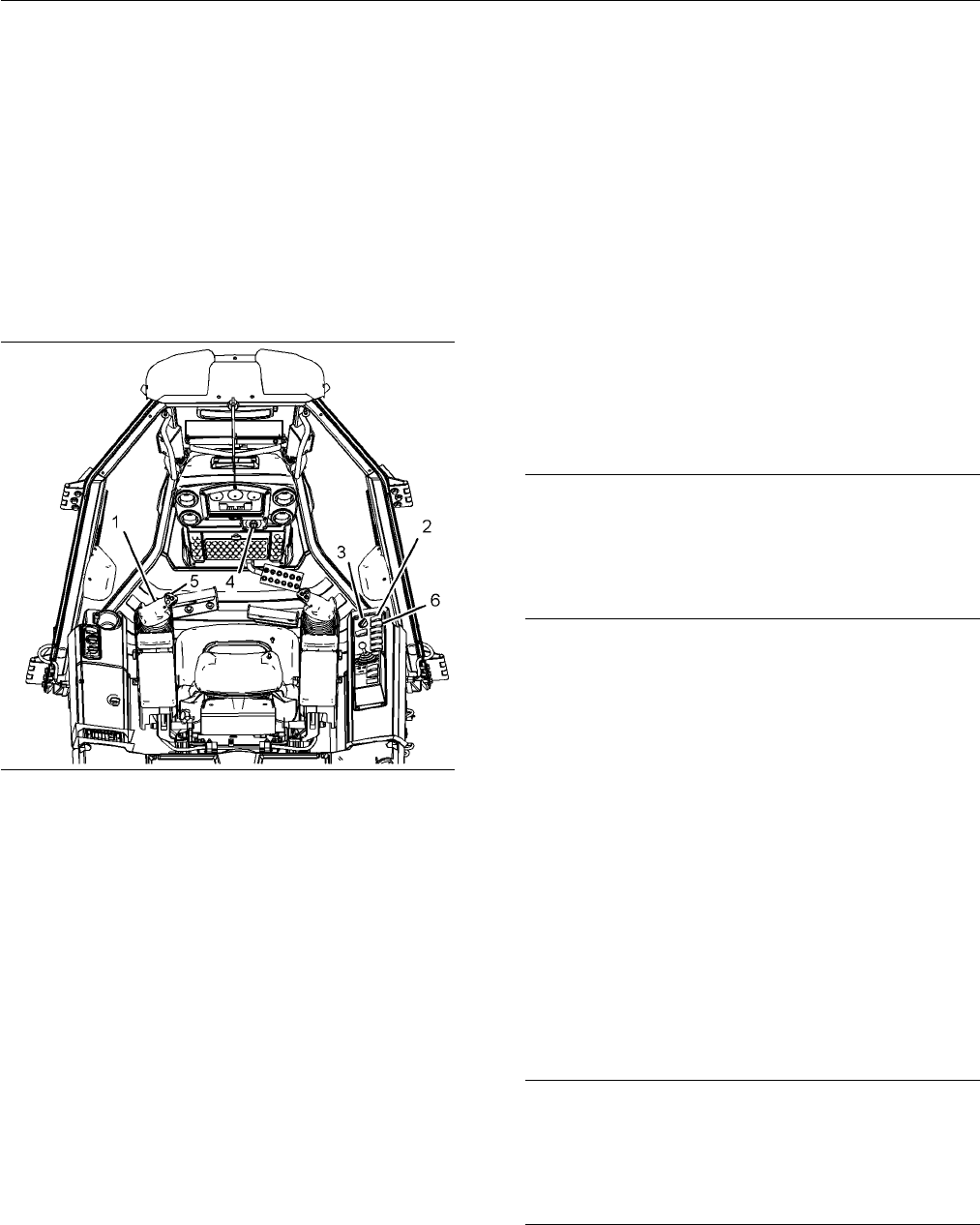

g01700454
Illustration 93
(1) Steering and transmission control (lever)
(2) P arking br ake switch
(3) Engine throttle control (knob)
(4) E ngine start s witch
(5) Forward horn
(6) Hydraulic lockout
3. Move lever (1) into the NEUTRAL position.
4. Move switch (2) to the ENGAGED position.
Note: The engine will not start unless switch (2) is in
the ENGAGED position.
Four conditions must be satisfied in order to start
the engine.
•
Theoperatormustbeseatedintheseat.
•
The parking brake must be engaged.
•
The implements must be in the LOCK OUT
position. Use hydraulic lockout (6) in order to
lock out the implements.
•
Thesteeringan
d transmission control must be
in NEUTRAL.
•
The implement
control lever must be in the
HOLD position.
5. Before the en
gine is started, check for the
presence of bystanders or maintenance
personnel. Ensure that all personnel are clear of
the machine
.Briefly sound forward horn (5) before
you start the engine.
6. Turn knob (3
) to one-third of the full travel before
you start the engine.
Note: If th
e machine is cold, wait until the glow plug
indicator light turns off. Then, turn on the engine start
switch.
7. Turn engine start switch (4) to the START position.
NOTICE
Do not cra
nk the engine for more than 30 seconds. Al-
low the starter to cool for two minutes before cranking
again. Turbocharger damage can result if the engine
rpm i s no
t kept low until the oil gauge display verifies
that the o il pressure is sufficient.
8. Release the engine start switch key after the
engine starts.
9. Allow the engine to warm up at LOW IDLE. Refer
to Operation and Maintenance Manual, “Engine
and Machine Warm-up”.
Ether Startin g Aid (I f Equipped)
If the temperature of the coolant is below 0 °C (32 °F)
a premeasured amount of ether is automatically
injected into the engine air intake when you crank
the engine.
1. Perform Step 1 through Step 6 of the Engine
Starting procedure.
2. Turn start switch key (4) to the START position.
Crank the engine.
NOTICE
Do not crank the engine for more than 30 seconds. Al-
low the starter to cool for two minutes before cranking
again. Turbocharger damage can result if the engine
rpm is not kept low until the oil gauge display verifies
that the o il pressure is sufficient.
3. Release start switch key (4) when the engine
starts.
