CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 110

Operation and Maintenance Manual
110 SEBU8213-04
Maintenance Section
Final Drive Oil - Change
g01260289

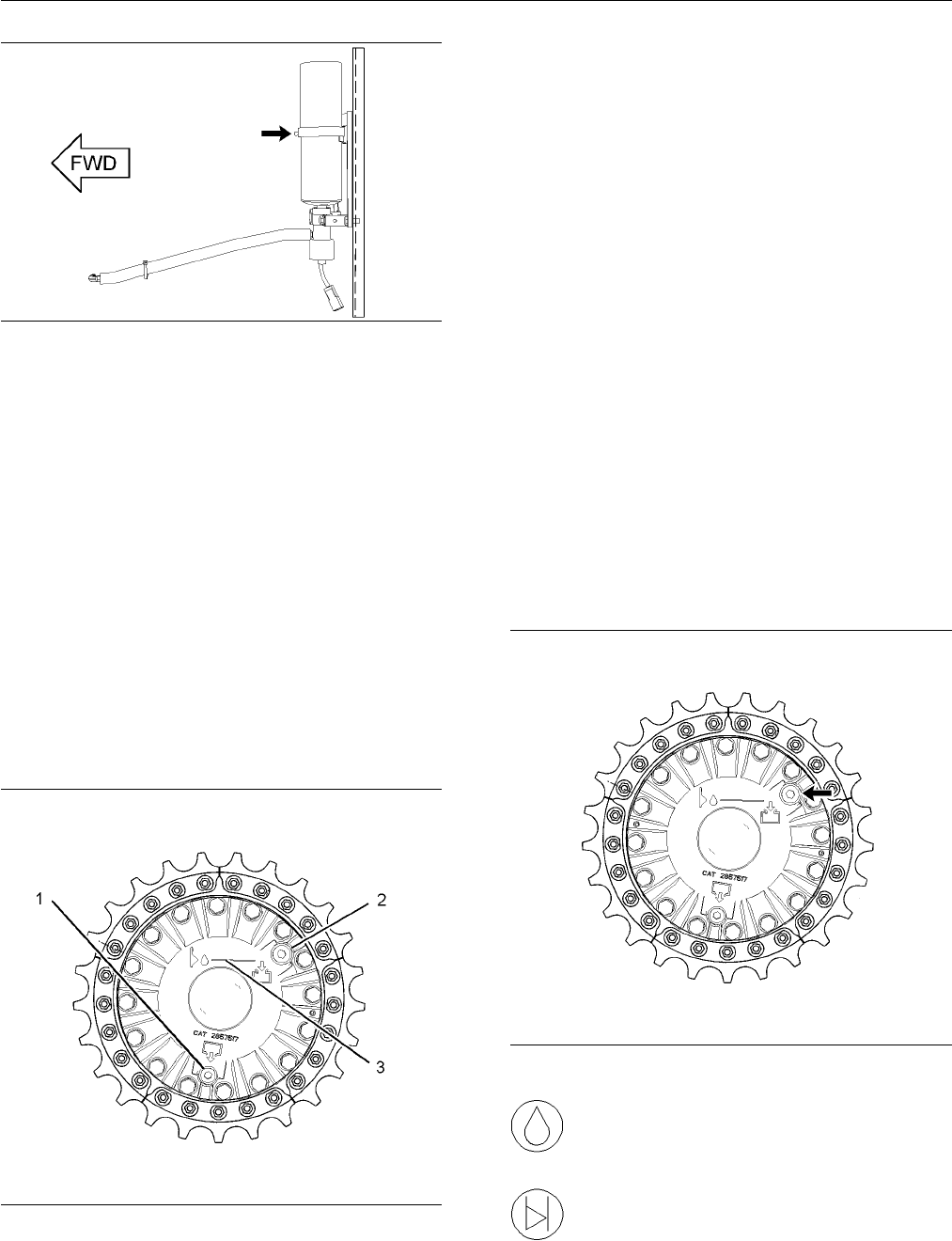

Illustration 149
2. Loosen the cylinder retaining clamp. Unscrew the
empty ether starting aid cylinder and remove the
empty ether starting aid cylinder.
3. Remove the used gasket. Install the new gasket
that is provided with each new ether starting aid
cylinde r.
4. Install the new ether starting aid cylinder. Tighten
the ether starting aid cylinder hand tight. Tighten
the cylinder retaining clamp securely.
5. Close the engine access door.
i02807240
FinalDriveOil-Change
SMCS C
ode: 4050
g01260414
Illustration 150
1. Move the machin
esothatfinal drive oil level mark
(3) is horizontal and final drive drain plug (1) is at
the bottom of the final drive.
2. Remove final drive drain plug (1) and allow the oil
to drain into a suitable container.
3. Clean drain plug (1) and replace the plug .
Tighten the drain plug to a torque of 175 ± 15 N·m
(130 ± 10 lb f
t).
4. Remove oil filler plug (2). Add oil until the oil is
level with t
he plug threads. Refer to Operation and
Maintenance Manual, “Lubricant Viscosities” and
Operation and Maintenance Manual, “Capacities
(Refill)”.
5. Clean o il filler plug (2) and install the plug . Tighten
the oil fill
er plug to a torque of 285 ± 30 N·m
(210 ± 20 lb ft).
6. Repeat th
is procedure for the other final drive.
i028072
43
Final Drive Oil Level - Check
SMCS Code: 4050
g01260346
Illustration 151
Oil – See “Lubricant Viscosities” in this
manual for the proper final drive oils.
Final Drive Oil Level Mark – Fill the final
drive with oil until the oil is level with this
horizontal mark.
