Table 6
CIC Menu
Operator Modes
Maximum Forwards Speed
Maximum Rev
erse Speed
Engine Oil Pressure
Engine Speed
System Voltage
Mode 0
Default
Service Hour Meter
Fine
Medium
Mode 1
Steering M odulation Settings
Coarse
Fine
Standard
Mode 2
Implement Modulation Settings
Fast
Brake Only
Mode 3
Brake/Decel Pedal Settings
Brake And Engine Decel

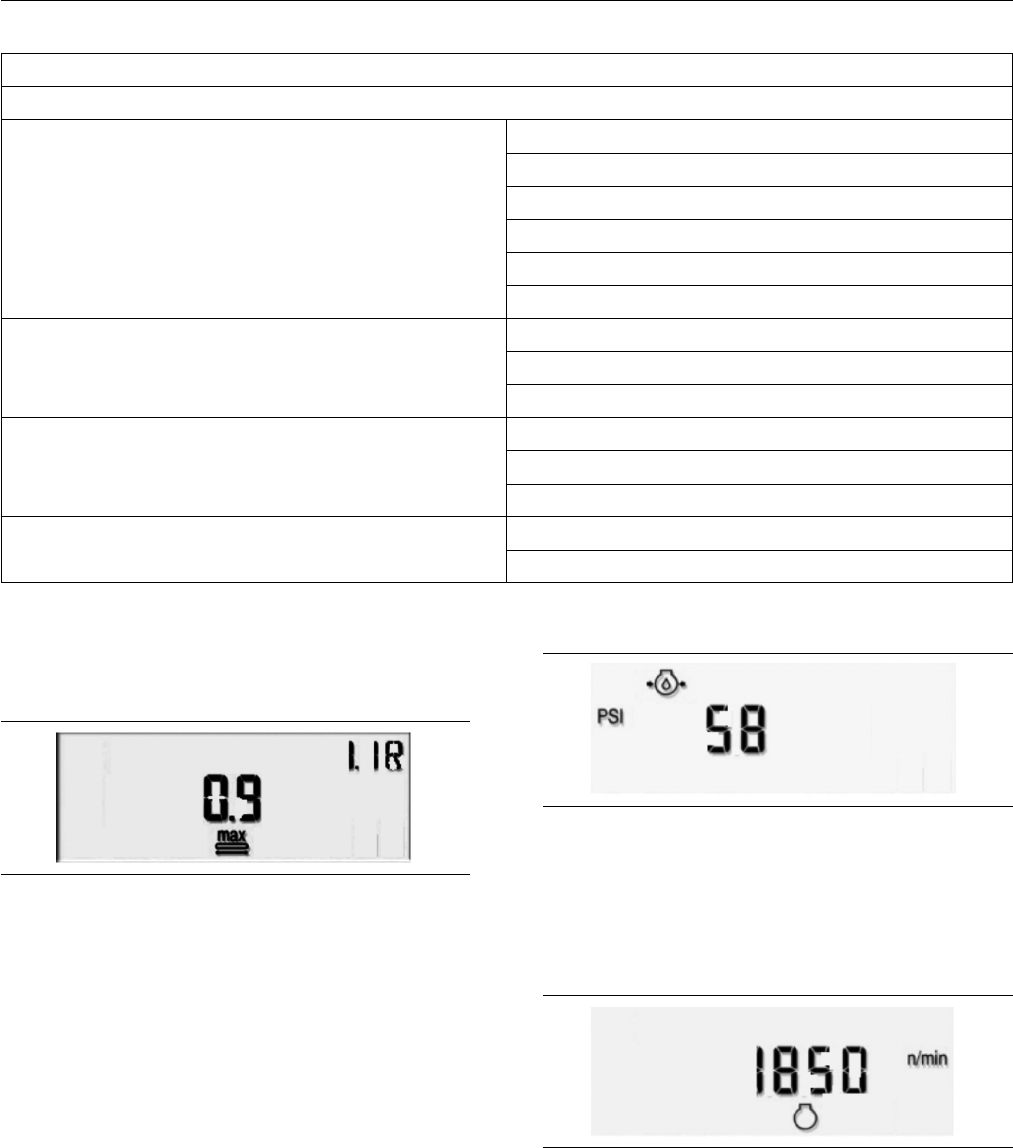

Following is the content of the CIC Operator Modes
menu.
Mode 0 - Default
g01328919
Ill
ustration 56
Mode 0 - Default LCD Sc reen
The Mode 0 - Default screen has the following
submenus:
Maximum Forward Speed
T
he Maximum Forward Speed screen indicates the
maximum forward speed of the machine.
M
aximum Reverse Speed
The Maximum Reverse Speed screen indicates the
maximum reverse speed of the machine.
Engine Oil Pressure
g01328962
Illustration 57
Mode 0 Engine Oil Pressure LCD S creen
The Engine Oil Pressure screen indicates the current
engine oil pressure.
Engine Speed
g01328963
Illustration 58
Mode 0 Engine Speed LCD S creen
The Engine Speed screen indicates the current
engine speed of the machine.
