CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 12

Operation and Maintenance Manual
12 SEBU8213-04
Safety Section
Additional Messages
Blade and M ast
When you use th
e AccuGrade - Laser System, this
safety message is located on the rear of each mast
at eye level from the ground.
g01282878
To prevent possible personal inj ury during ins tal-
lation and removal of the laser receivers, lower the
mast to the minimum height and use an approved
access system to r each the mounting locations of
the laser receivers at the top of the mast. Do not
climb on the blade.
i02798976
Additio nal Messages
SMCS Code: 7000; 7405

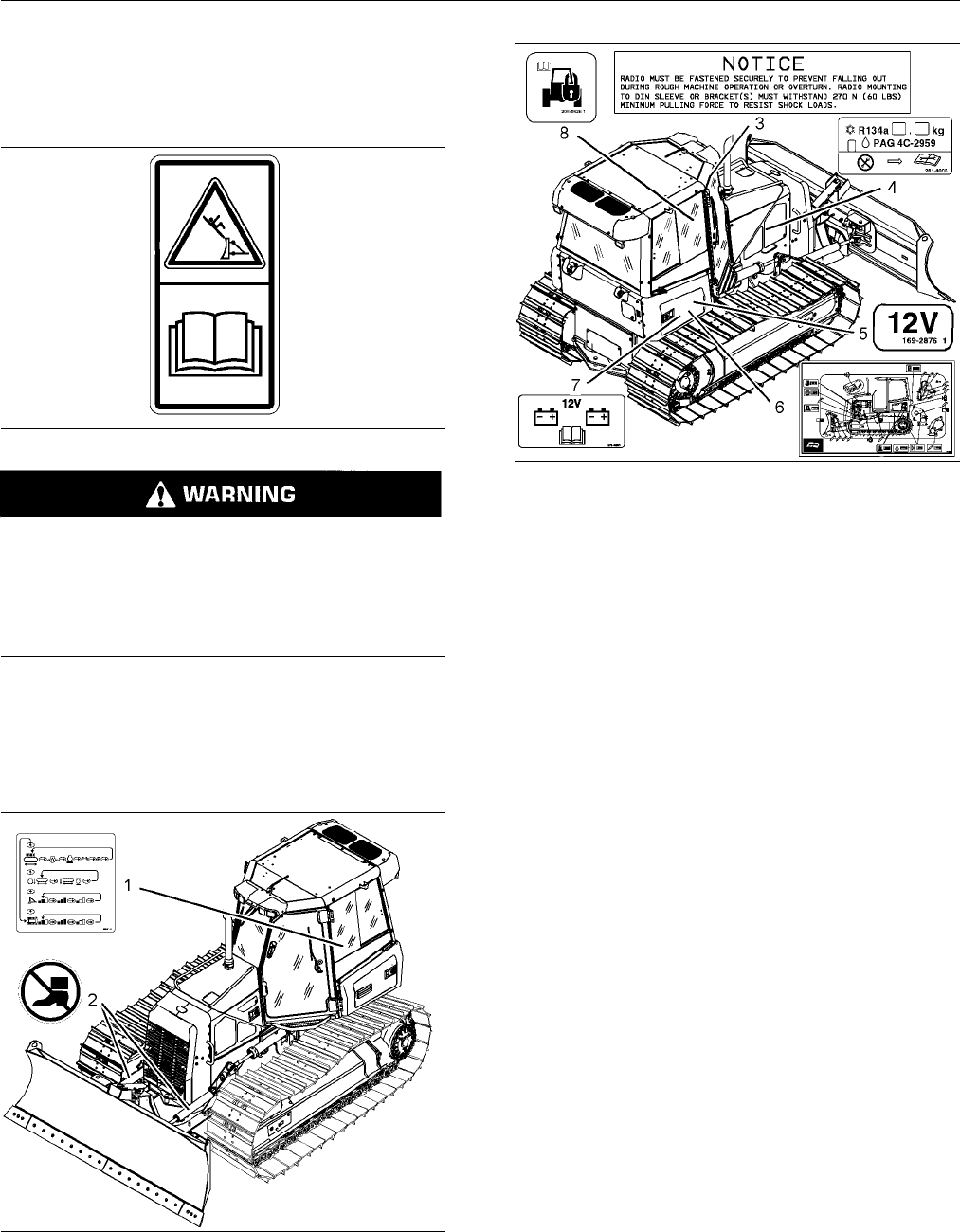

g01398718
Illustration 5
g01398723
Illustration 6
There are several specific messages on this machine.
The location of the messages and the description of
the messages are reviewed in this sectio n. Please
become familiarized with all messages.
Make sure that all of the messages are legible.
Clean the messages or replace the messages if
you cannot read the words. Replace the illustrations
if the illustrations are not legible. When you clean
the messages, use a cloth, water and soap. Do not
use solvent, gasoline, or other harsh chemicals to
clean the messages. Solvents, gasoline, or harsh
chemicals could loosen the adhesive that secures the
messages. Loose adhesive will allow the messages
to fall.
Replace any message that is damaged, or missing.
If a message is attached to a part that is replaced,
install a message on the replacement part. Any
Caterpillar dealer can provide new messages.
“Gauge Display” (1)
This message is located on the inside door of the
cab glove box.
