CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 55

Operation and Maintenance Manual
SEBU8213-04 55
Operation Section
Machine Operation
Winch Controls or Ripper Con trols
(21)

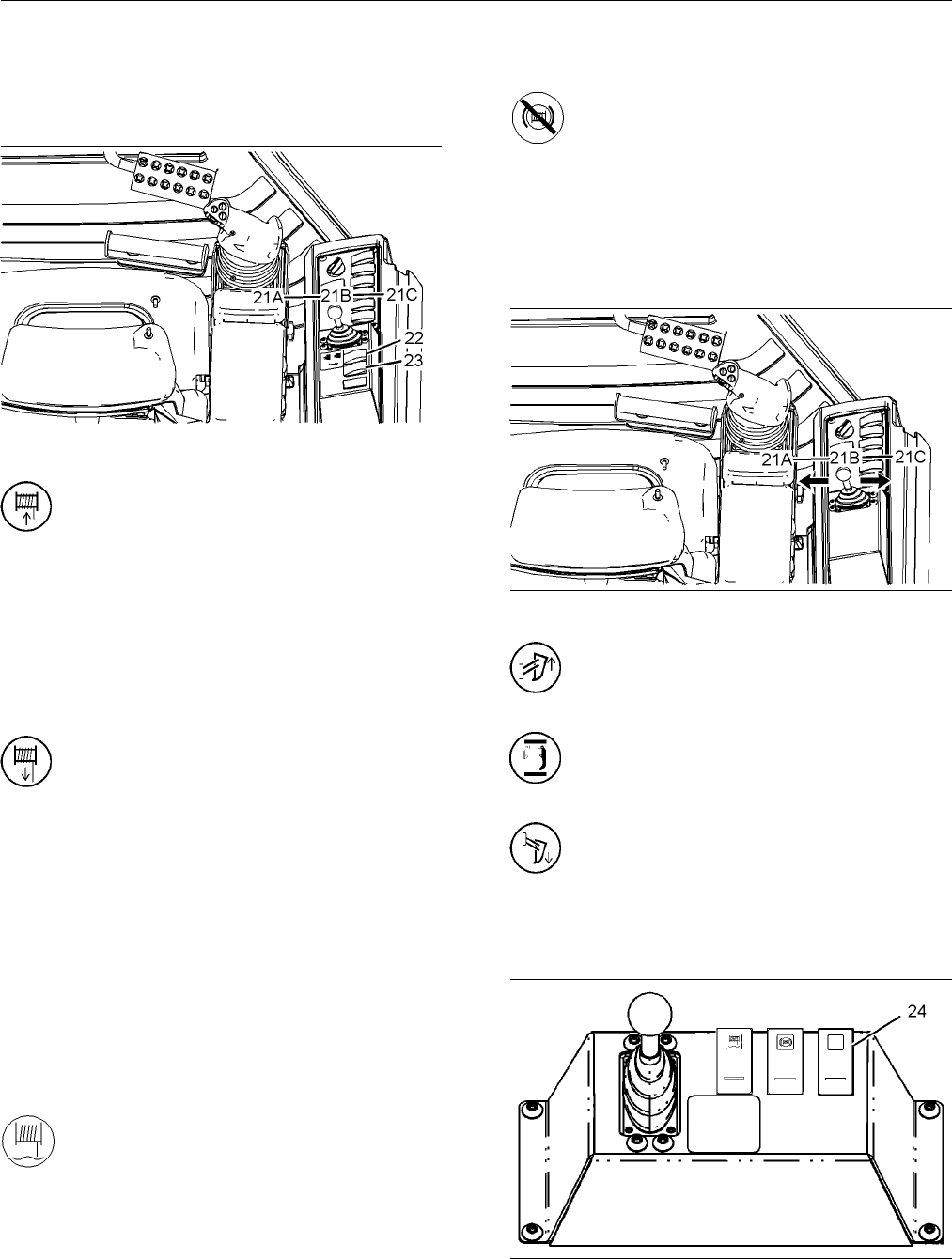

Winch Controls 21, 22, 23 (If Equipped)
g01391320
Illustration 75
Reel In (21A) – Move the lever to the left in
order to reel in the winch cable. The winch
cable should move toward the winch under
power. Speed for the winch cable is proportional to
the lever position. Release the lever. The Lever will
return to the HOLD position.
Hold (21B) – Release the lever. The lever will return
to HOLD position. This maintains the current position
ofthewinchcable.Thewinchbrakeisappliedinthe
HOLD position.
Reel Out (21C) – Move the lever to the
right in order to reel out the winch cable.
The winch cable reels out under power.
Speed for the winch cable is proportional to the lever
position. Release the lever. The Lever will return to
the HOLD position.
Both Free Spool and Drive Away modes have three
conditions that must be met in order to activate the
function.
•
The operator must be present.
•
The implement levers must be released.
•
Thehydrauliclockoutswitchmustbeinthe
UNLOCKED position.
Free Spool (22) – Press the freespool
switchonetimeinordertoreleasethe
winch cable. The winch cable unreels by
manually pulling the winch cable. No machine or
hydraulic assistance is needed. The winch will remain
in the FREE SPOOL position until you press the
switch again or the lever is moved from the HOLD
position.
Note: Do not act
ivate the winch freespool when the
machine is moving.
DriveAway(23
)–Press the winch drive
awayswitchonetimeinordertoactivate
this mode. This mode allows the operator to
drive the tra
ctor away from a load as the winch reels
out the cable under power and the cable is attached
to the load. Drive away (23) releases the winch brake
(BRAKE OFF)
.
Ripper Controls 21 (If Equipped)
g01391351
Illustration 76
RAISE (
21A) – Pull the lever to the left in
order to raise the ripper. Release the lever.
The lever will return to the HOLD position.
HOLD (
21B) – Release the lever. The
lever will return to HOLD position. Ripper
movement stops in the current position.
LOWER
(21C) – Push the lever to the right
in order to lower the ripper. Release the
lever. The lever will return to the HOLD
posi
tion.
Auxiliary Control 24 (If equipped)
g01391360
Illustration 77
