CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 119

Operation and Maintenance Manual
SEBU8213-04 119
Maintenance Section
Fuses - Replace
i03160982
Fuses - Re place
SMCS Code: 1417
Fuses – Fuses p
rotect the electrical system from
damage that is caused by overloaded circuits.
Replace the fuse if the element separates. If the
element of a n
ew fuse separates, check the circuit.
Repair the circuit, if necessary.
NOTICE
Replace th
e fuses with the same type and size only.
Otherwise, electrical damage can result.
If it is nec
essary to replace fuses frequently, an electri-
cal problem may exist. Contact your Caterpillar dealer
g01259901

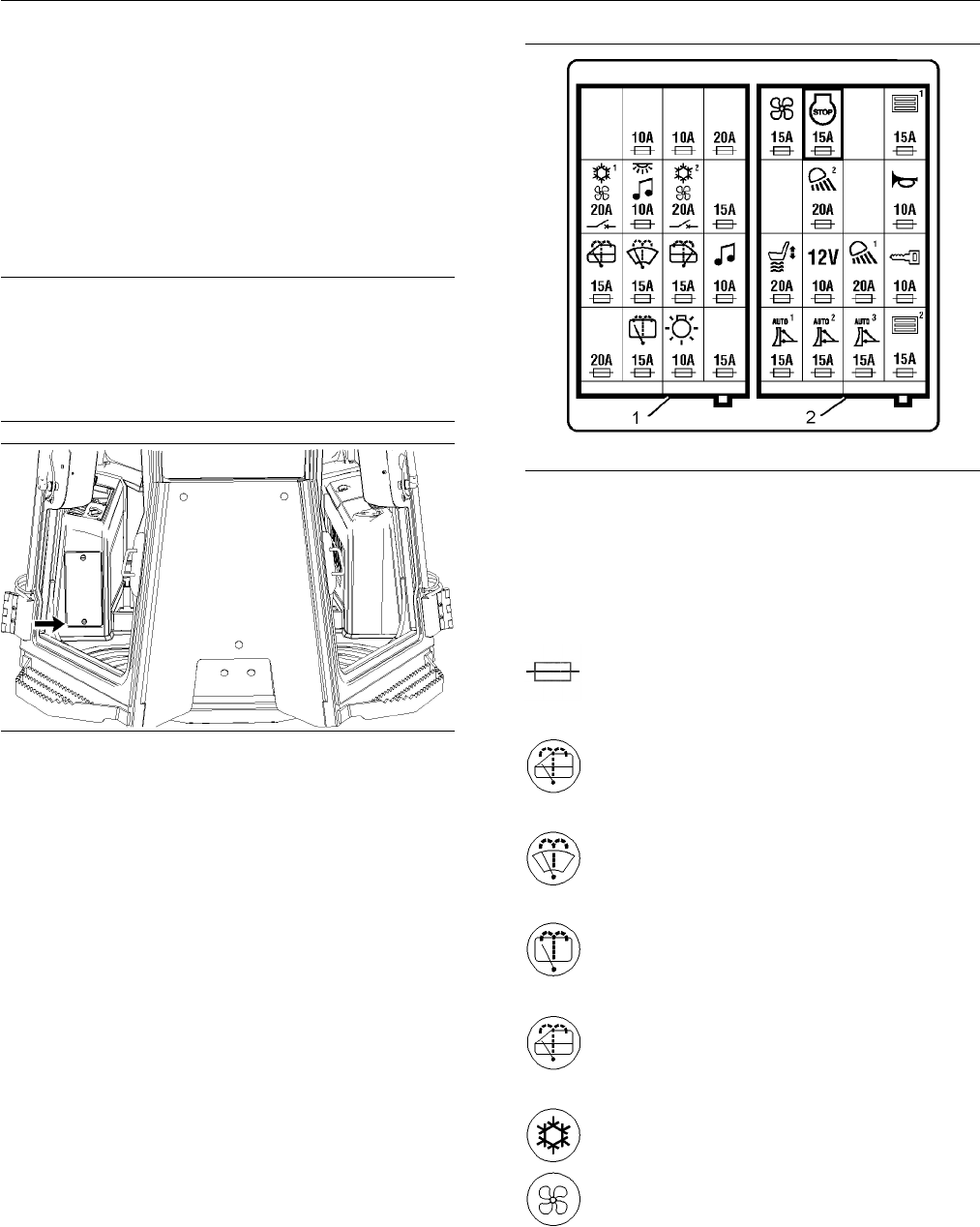

Illustration 167
Acces
s for the fuse panel
Note: The fuse panel for this machine is equipped
with
all of the available options.
The fuse panel is located on the front panel next to
the r
ight side of the seat.
g01621671
Illustration 168
Layout for fuse panel
(1) Fuse blo ck 1
(2) Fuse blo ck 2
Fuse Block 1
Spares – Two10Amp,15Amp,and20
Amp fuses
Window wiper for the left door and
window washer pump – 15 Amp
Window wiper for the front window and
front window washer pump – 15 Amp
Rear window wiper and rear window
washer pump – 15 Amp
Window wiper for the right door and
window washer pump – 15 Amp
Cond
enser fan 1 – 20 Amp Mini breaker
