CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 41

Operation and Maintenance Manual
SEBU8213-04 41
Operation Section
Machine Operation
Seat Belt Adjustment for
Retractable Seat Belts
Fastening The Seat Belt

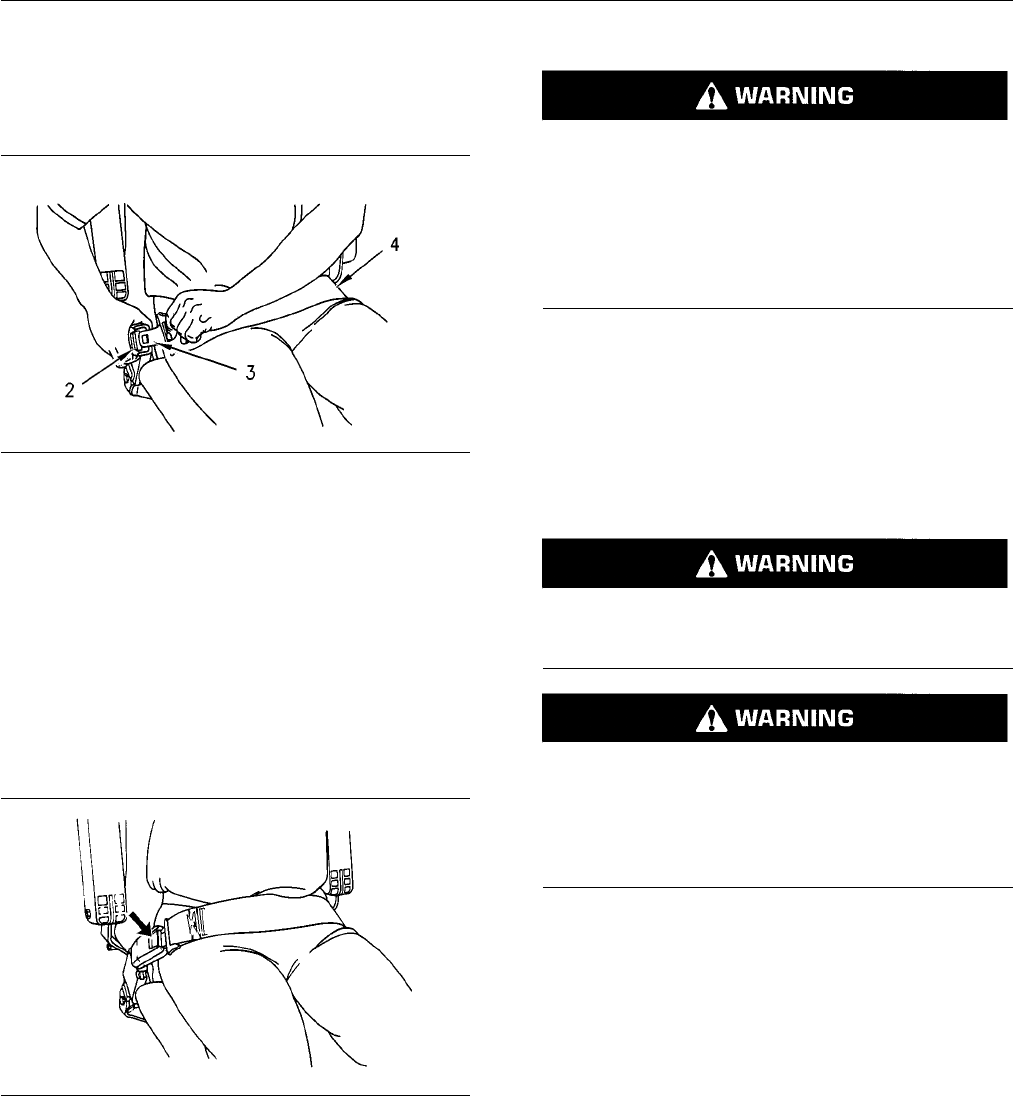

g00867598
Illustration 44
Pull seat belt (4) out of the retractor in a continuous
motion.
Fasten seat belt catch (3) into buckle (2). Make sure
that the seat belt is placed low across the lap of the
operator.
The retractor will adjust the belt length and the
retractor will lock in place. The comfort ride sleeve
will allow the operator to have limited movement.
Releasing The Seat Belt
g00039113
Illustration 45
Push the release button on the buckle in order to
release the seat belt. The seat belt will automatically
retract into the retractor.
Extension of the Seat Belt
When usi ng retractable seat belts, do not use seat
belt extensions, or personal injury or death can
result.
The retractor system may or may not lock up de-
pending on the length of the extension and the
size of the person. If the retractor does not lock
up, the seat belt will not retain the person.
Consult your Caterpillar dealer for longer seat belts
and for information on extending the seat belts.
i03325047
Mirror
SMCS Code: 7319
Adjust all mirrors as specified in the Operation
and Mai
ntenance Manual. Failure to heed this
warning can le ad to personal injury or death.
Slips and falls c an result in personal injury. Use
the machines access s ystems when a djusting the
mirrors. If the mirrors cannot be reached using the
machine access systems follow the instructions
found within the Operation and Maintenance Man-
ual, “Mirror” in order to access the mirrors.
Note: Your machine may not be equipped with all of
the mirrors that are described in this topic.
Make sure that the mirror is in proper working
condition and that the mirror is clean. Adjust the
mirror at the beginning of each work period and
adjust the mirror when you change operators.
The appropriate job site organization is also
recommended in order to minimize visibility hazards.
For more information refer to this Operation and
Maintenance Manual, “Visibility Information”.
