CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 9

Operation and Maintenance Manual
SEBU8213-04 9
Safety Section
Safety Messages

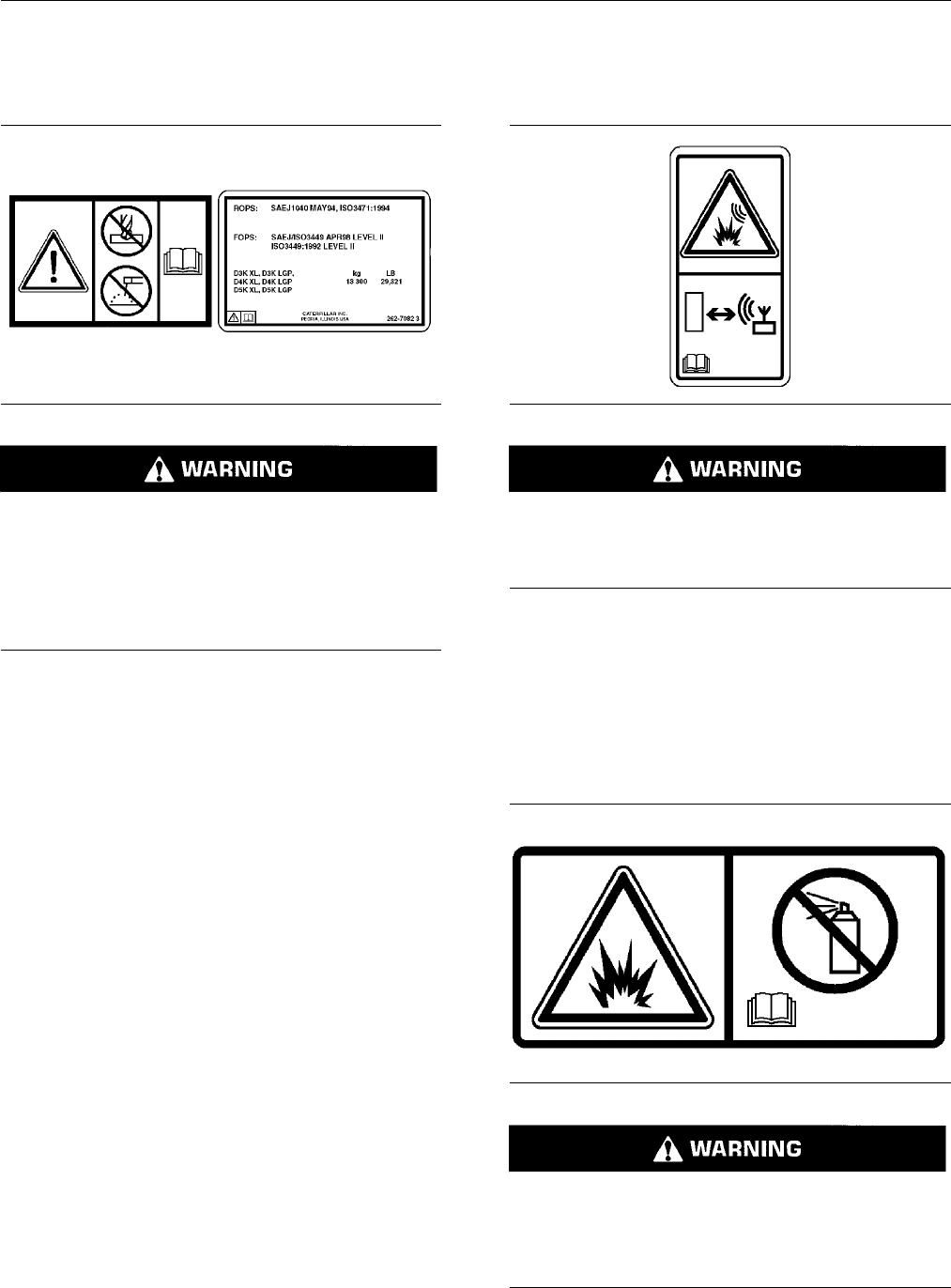

DoNotWeldOntheROPS(3)
Safety Message (3) is positioned on the left rear side
of the cab post.
g01398698
Structural damage, an overturn, modification, al-
teration, or improper repair, can impair this struc-
ture's protective c apability thereby voiding this
certification. Do not weld on or drill holes in the
structure. Consult a Caterpillar dealer to deter-
mine this structure's limitations without v oiding
its certification.
This machine has been certified to the standards that
arelistedonthecertification plate. The maximum
mass of the machine, which includes the operator
and the attachments without a payload, should not
exceed the mass on the certification plate.
Product Link (4) (if equipped)
Safety message (4) is located in the left side of the
cab on the front support.
g01108 685
This machine is equipped with a Caterp illar Prod-
uct Link communication device which must be de-
activated within 12 m (40 ft) of a blast zone. Failure
to do s o could result in serious injury or death.
Refer to Special Instruction, REHS1642, “Operation
of the Product Link System” for additional information.
No Ether in Air Inlet (5)
Safety Message (5) is located on the left side of the
engine on the air cleaner cover. Only use the ether
starting aid group that is factory installed for safety.
g01055438
Do not use ether. This m achine is equipped with
g
low plugs. Us ing ether can create explosions or
fires that can cause personal injury or death. Read
and follow the engine starting procedure in the
Operation and Maintenance Manual.
