CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 128

Operation and Maintenance Manual
128 SEBU8213-04
Maintenance Section
Ripper - Inspect/Replace
i01574318
Ripper - Inspect/Replace
SMCS Code: 6808-510; 6812-510
Tips

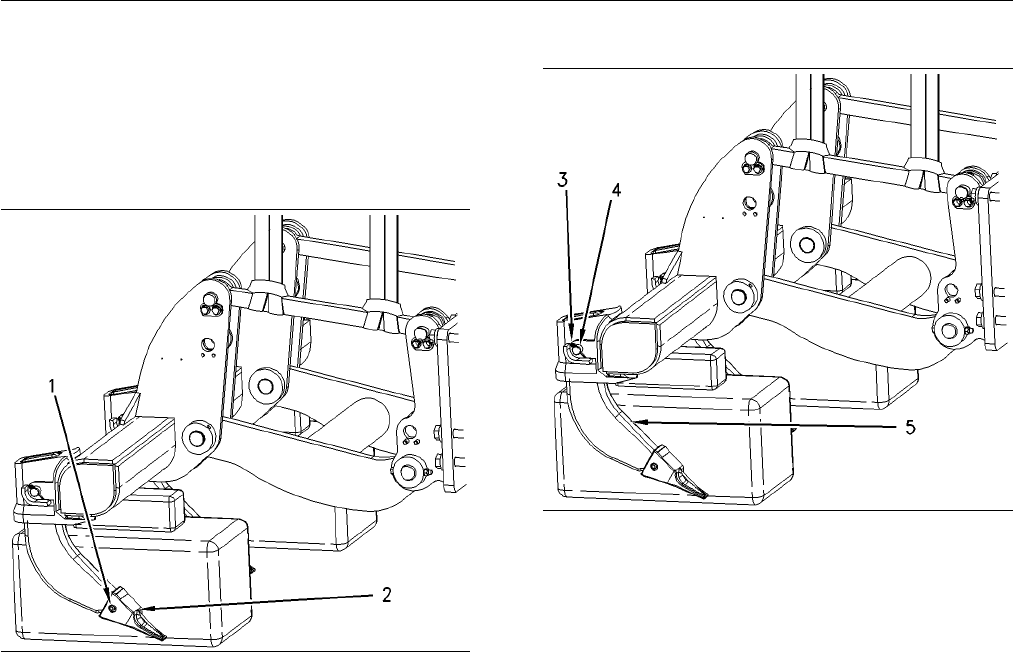

g00818031
Illustration 195
When the ripper tip is worn close to the shank,
replace the ripper tip. If the tip is too blunt, the tip will
not penetrate properly.
1. Raise the ripper. Place blocking under the ripper.
Lower the ripper onto the blocking. The ripper
should be high enough so that the ripper tip can
be removed. Do not place the ripper too high.
2. If the ripper tip is worn, drive out pin (1). Remove
tip (2) and the shank pin retainer .
3. Clean the shank pin retainer and the pin.
4. Install the new tip and the retainer.
5. Install pin (1) from the opposite side of the retainer.
6. Raise the ripper and remove the blocking.
7. Lower the ripper to the ground.
Shank
g00818038
Illustration 196
When the ripper shank is worn or damaged, replace
the ripper shank.
1. Raise the ripper. Place blocking under the ripper.
Lower the ripper onto the blocking. The ripper
should be high enough so that the ripper shank
can be removed. Do not place the ripper too high.
2. If the shank is worn or damaged, remove cotter
pin (3). Then drive out pin (4). Remove shank (5).
3. Install the new shank and pin (4).
4. Install cotter pin (3).
5. Raise the ripper and remove the blocking.
6. Lower the ripper to the ground.
