CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 97

Operation and Maintenance Manual
SEBU8213-04 97
Maintenance Section
Condenser (Refrigerant) - Clean

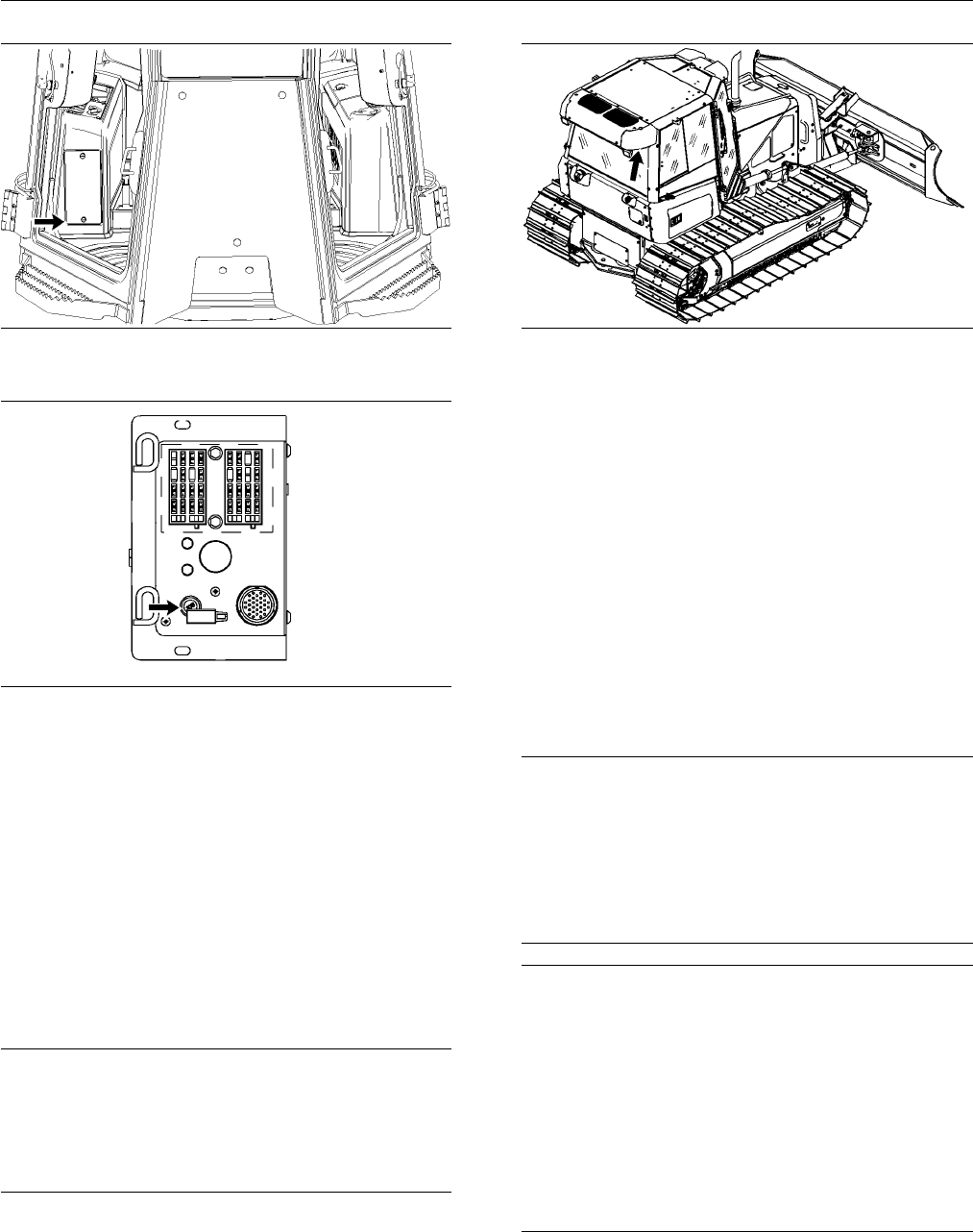

g01259901
Illustration 123
Front view
g01400116
Illustration 124
Main Circuit Breaker – The105Ampmaincircuit
breaker is the only circuit breaker. Push the button in
order to reset the main circuit breaker. The button
will stay depressed if the circuit is working properly.
Check the appropriate electrical circuit if the button
does not stay depressed.
i02518214
Con
denser (Refrigerant) -
Clean
SMC
S Code: 1805-070
NO
TICE
If excessively dirty, clean condenser with a brush. To
prevent damage or bending of the fins, do not use a
st
iff brush.
Repair the fins if found defective.
g01259914
Illustration 125
1. Remove the cover for the condenser.
2. Inspect the condenser for debris. Clean the
condenser, if necessary.
3. Use clean water to wash all of the dust and dirt
from the condenser.
4. Install the cover for the condenser.
i02808933
Cooling System Coolant (ELC)
-Change
SMCS Code: 1352-044; 1395-044
NOTICE
Do not change the coolant until you read and under-
stand
the cooling system information in Special Pub-
lication, SEBU6250, “Caterpillar Machine Fluids Rec-
ommendations”.
Failure to do so could result in damage to the cooling
system components.
NOTICE
Mixing ELC with other products will reduce the effec-
tiveness of the coolant.
This could result in damage to cooling system compo-
nents.
If Caterpillar products are not available and com-
mercial products must be used, make sure they
havepassedtheCaterpillarEC-1specification for
pre-mixed or concentrate coolants and Caterpillar
Extender.
