CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 30

Operation and Maintenance Manual
30 SEBU8213-04
Product Information Section
General Information
Product Information
Section
General Information
i03738887
Specificatio ns
SMCS Code: 1000; 6700; 7000; 7426

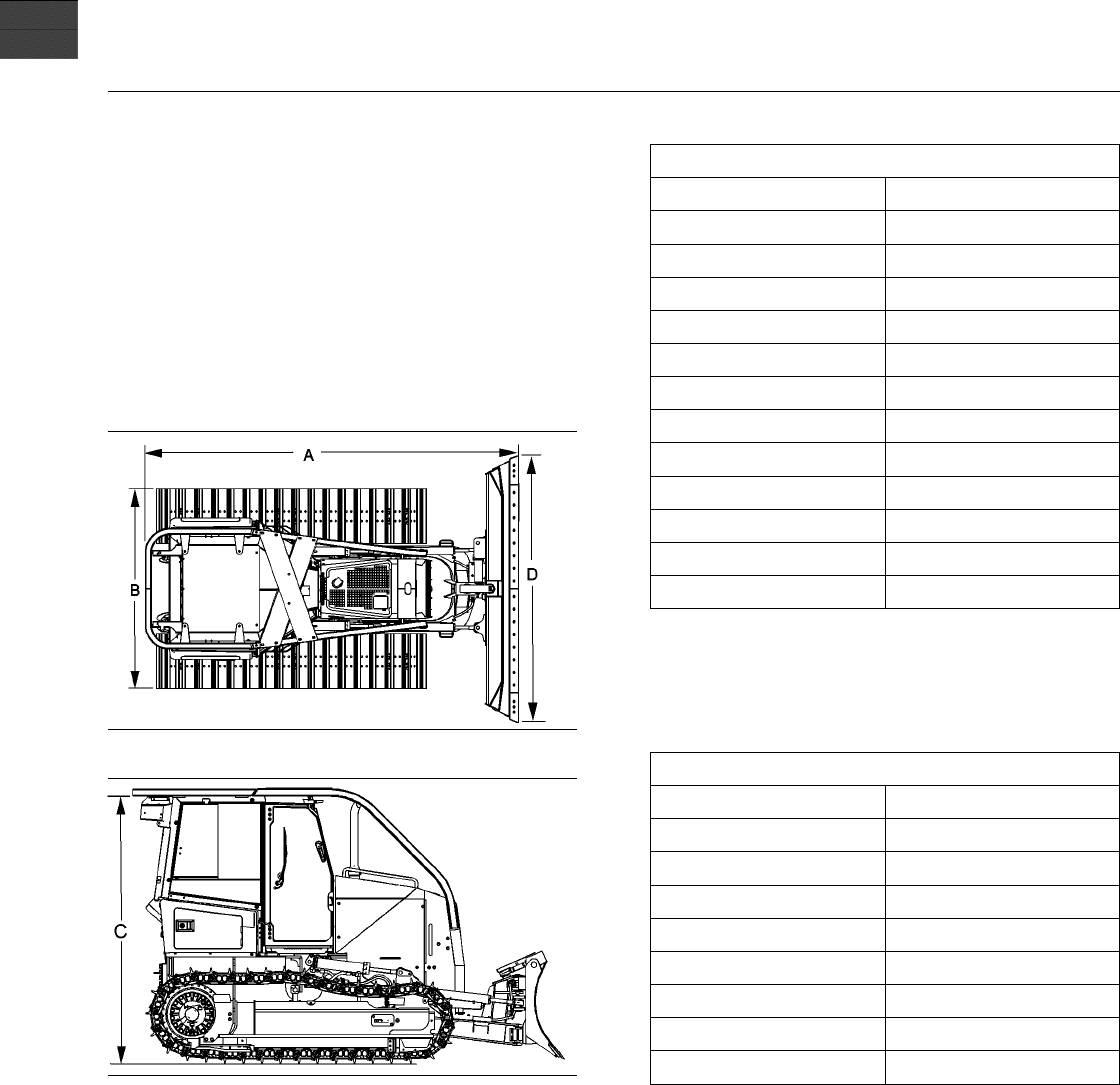

g01398729
Illustration 24
g01256233
Illustration 25
Table 2
D3K HYSTAT TRACK-TYPE TRACTOR
Operating Weight (LGP)
(1)
8093 kg (17842 l b)
Operating Weight (XL)
(1)
7795 kg (17185 l b)
Operating W
eight (SLGP)
(2)
8190kg(180
55 lb)
Length (LGP) (A)
(3)
4255 mm (167.5 inch)
Length (XL) (A) 4266 mm (168 inch)
Length (SLGP) (A) 4255 mm (167.5 inch)
Width (LGP) (B) 2360 mm (92.9 inch)
Width (XL) (B) 1901 mm (74.8 inch)
Width (SLGP) (B) 2630 mm (103.5 inch)
Height to top of ROPS (C) 2763 mm (108.8 inch)
Blade width (LGP) (D) 3149 mm (124 inch)
Blade width (XL) (D) 2646 mm (104.2 inch)
Blade width (SLGP) (D) 3149 mm (124 inch)
(1)
The operating weight includes the R OPS canopy, the dozer
blade, the backu p alarm, the lubricants, the c oolant, a full fuel
tank, and the operator 75 kg (165 lb).
(2)
SLGP machine uses 760 mm (30 inch) track shoes.
(3)
Each length (A ) includes the blade.
Table 3
D4K HYSTAT TRACK-TYPE TRACTOR
Oper
ating Weight (LGP)
(1)
8501
kg (18741 lb)
Operating Weight (XL)
(1)
8147 kg (17961 l b)
Length (LGP) (A)
(3)
4266 mm (168 inch)
Length (XL) (A) 4274 mm (168.3 inch)
Width (LGP) (B) 2360 mm (92.9 inch)
Width (XL) (B) 2010 mm (79.1 inch)
Height to top of ROPS (C) 2763 mm (108.8 inch)
Blade width (LGP) (D) 3149 mm (124 inch)
Blade width (XL) (D) 2782 mm (109.5 inch)
