CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 33

Operation and Maintenance Manual
SEBU8213-04 33
Product Information Section
Identification Information
g01256144

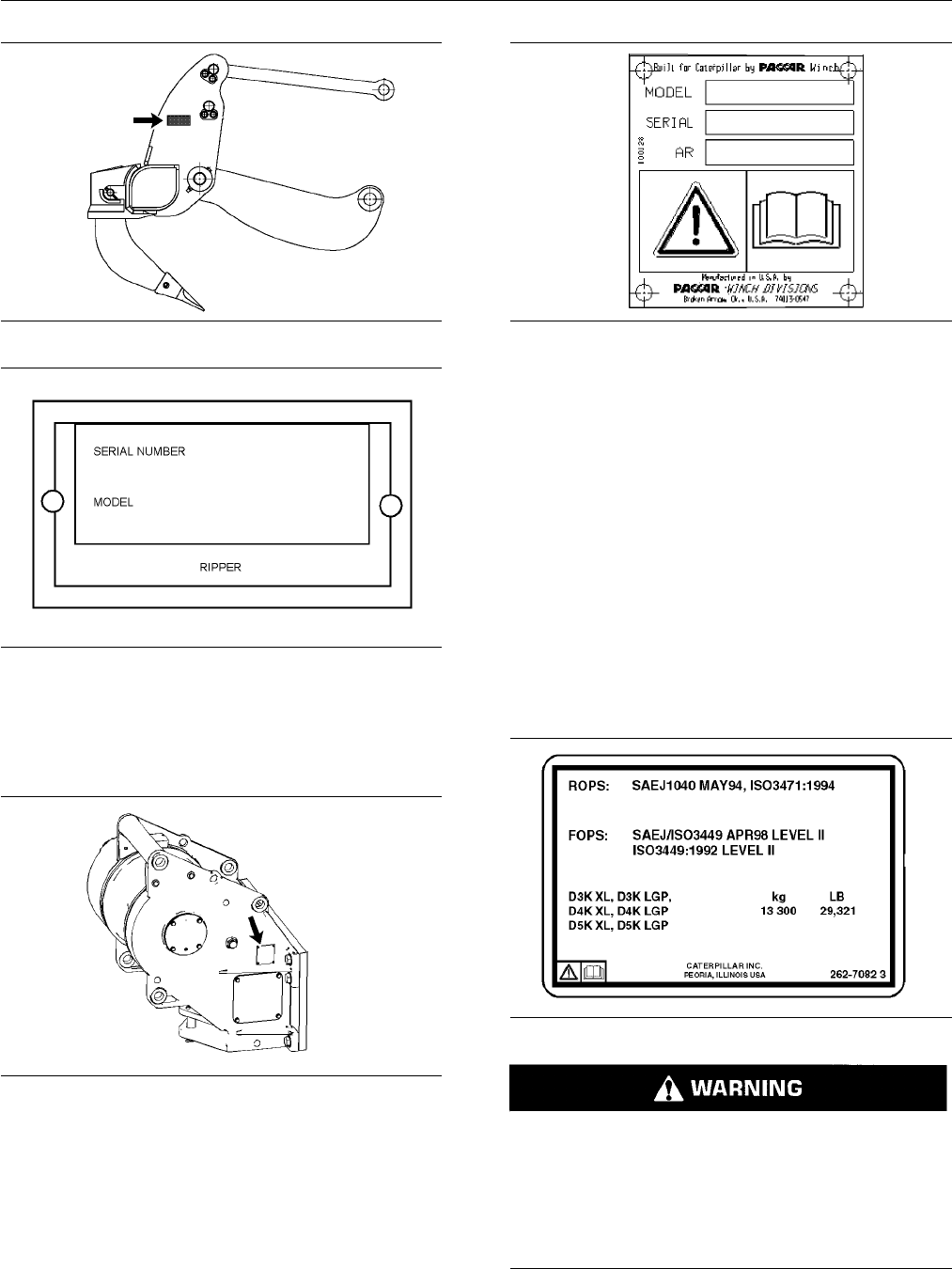

Illustration 30
g01057104
Illustration 31
Ripper Serial Number _____________________________________
The serial number plate for the winch is located on
the side of the winch.
g01256165
Il
lustration 32
g01323812
Illustration 33
The winch serial number is located on the right
vertical wall of the winch frame. Do not operate or
service the winch unless your first read the Operation
and Maintenance Manual in conjunction with
understanding the instructions for the safe operation
of the winch.
Winch Serial Number
_____________________________________
Model _________________________________________________________
Certifications
ROPS/FOPS Plate
The message is positioned on the outside left canopy.
g01398757
Illustration 34
Structur al damage, an overturn, modification, al-
teration, or improper repair, can impair this struc-
ture's protective capability thereby voiding t his
certification. Do not weld on or drill holes in the
structure. Consult a Caterpillar dealer to deter-
mine this structure's limitations without voiding
its certification.
