CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 42

Operation and Maintenance Manual
42 SEBU8213-04
Operation Section
Machine Operation
Mirror Adjustment
Interior Mirr
or

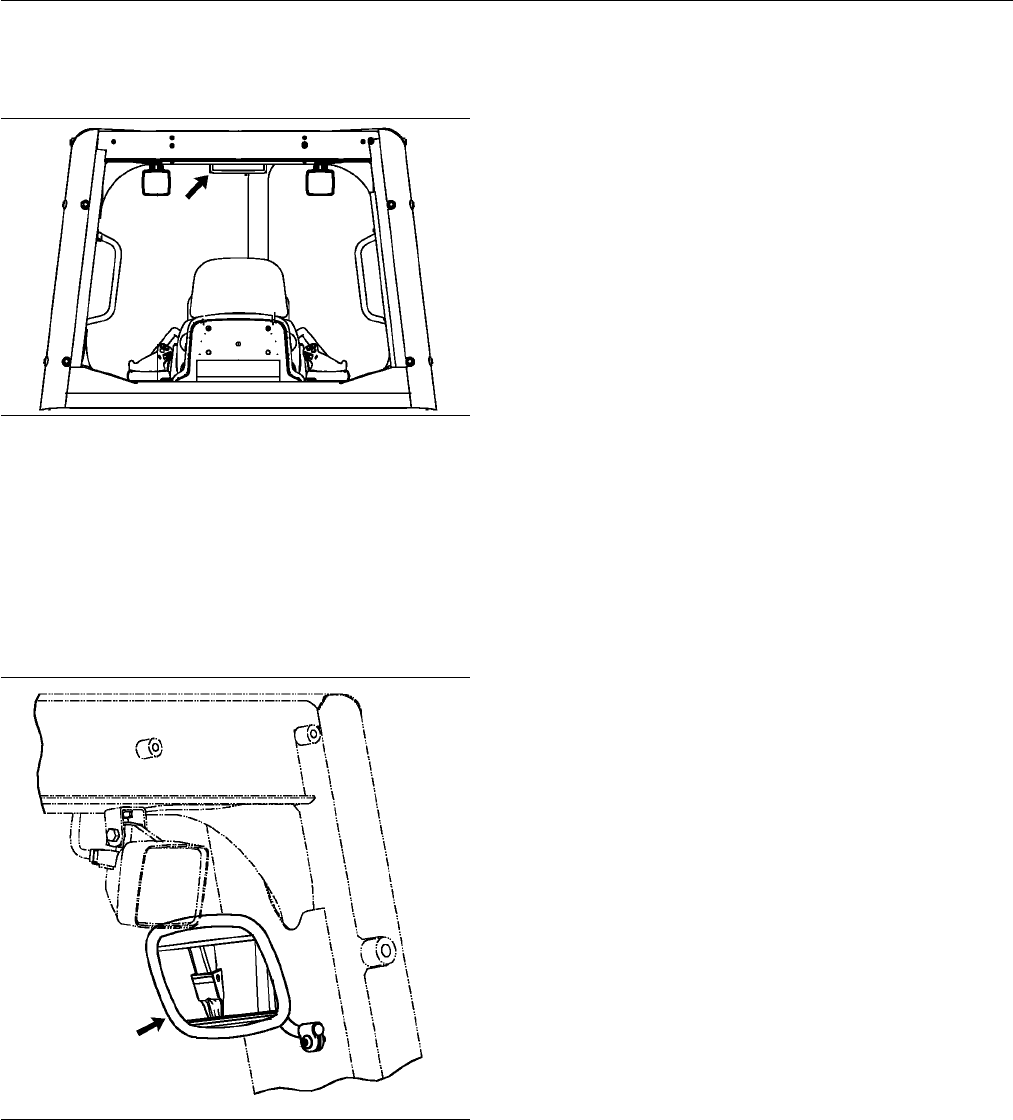

g01702814
Illustrat
ion 46
Rear view of interior mirror
The interior mirror can be adjusted to a position in
order to allow the operator to see preferred areas
at the re
ar of the machine during operations such
as backing up, reversing the machine, or moving
backward.
Right Side Rear View Mirror
g01703233
Illustration 47
Left ripper tooth in mirror
•
Park the machine on a level surface.
•
Lower the work tool to the ground.
•
Move the h ydraulic lockout control t o the LOCKED
position. For further details on this procedure, refer
to Operation and Maintenance Manual, “Operator
Controls”
•
Stop the engine
.
•
Adjust the right side rear view mirror in order to
view the rear w
ork tool, if equipped. Additionally,
provide as much visibility to the rear as possible.
Note: You may
need to use hand tools in order to
adjust certain types of mirrors.
i03160840
Operator C on trols
SMCS Code: 7300; 7301; 7451
