CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 91

Operation and Maintenance Manual
SEBU8213-04 91
Maintenance Section
Backup Alarm - Test
i02808927
Backup Alarm - Test
SMCS Code: 7406

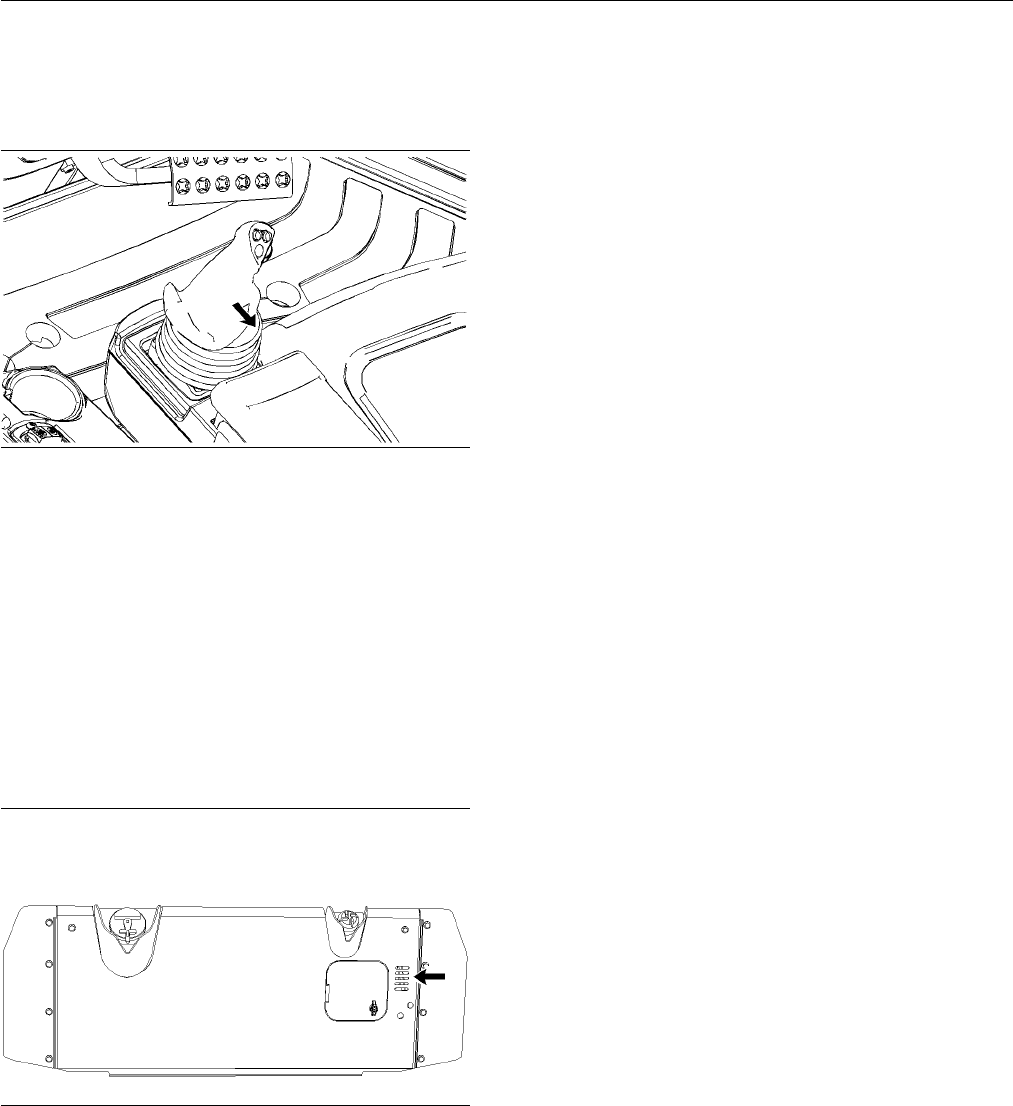

g01217394
Illustration 110
Turn the engine start switch to the ON position in
order to perform the test.
Apply the decel/brake pedal. Disengage the parking
brake switch. Move the transmission control lever to
the REVERSE position.
The backup alarm should sound immediately. The
alarm alerts the people behind the machine that the
machine is backing up. The backup alarm should
continue to sound until the transmission control
lever is moved to the NEUTRAL position or to the
FORWARD position.
g01257741
Illustration 111
The backup alarm is on the rear of the machine.
The nonadjustable backup alarm is set at the
appropriate sound level when the machine is shipped
from the factory.
i01989120
Battery - Inspec t
SMCS Code: 1401-040
Tighten the ba
ttery retainers on all batteries at every
1000 hour interval.
1. Open the batt
ery access cover.
2. Cleanthetopofthebatterieswithaclean
cloth. Keep
the terminals clean and coated with
petroleum jelly. Install the terminal covers after
youcoattheterminals.
3. Close the battery access cover.
i00993589
Battery - Recycle
SMCS Code: 1401-005; 1401-510; 1401-535;
1401-561; 1401
Always recycle a battery. Never discard a battery.
Always return used batteries to one of the following
locations:
•
A battery supplier
•
An authorized battery collection facility
•
Recycling facility
