CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 32

Operation and Maintenance Manual
32 SEBU8213-04
Product Information Section
Identification Information
Identification Information
i03739400
Plate Locations and Film
Locations
SMCS Code: 1000; 7000
Product Identification Plates
The Product Identification Number (PIN) will be used
to identify a powered machine that is designed for
an operator to ride.
Caterpillar products such as engines, transmissions
and major attachments that are not designed for an
operator to ride are identified by Serial Numbers.
For quick reference, record the identification numbers
in the spaces that are provided below the illustration.

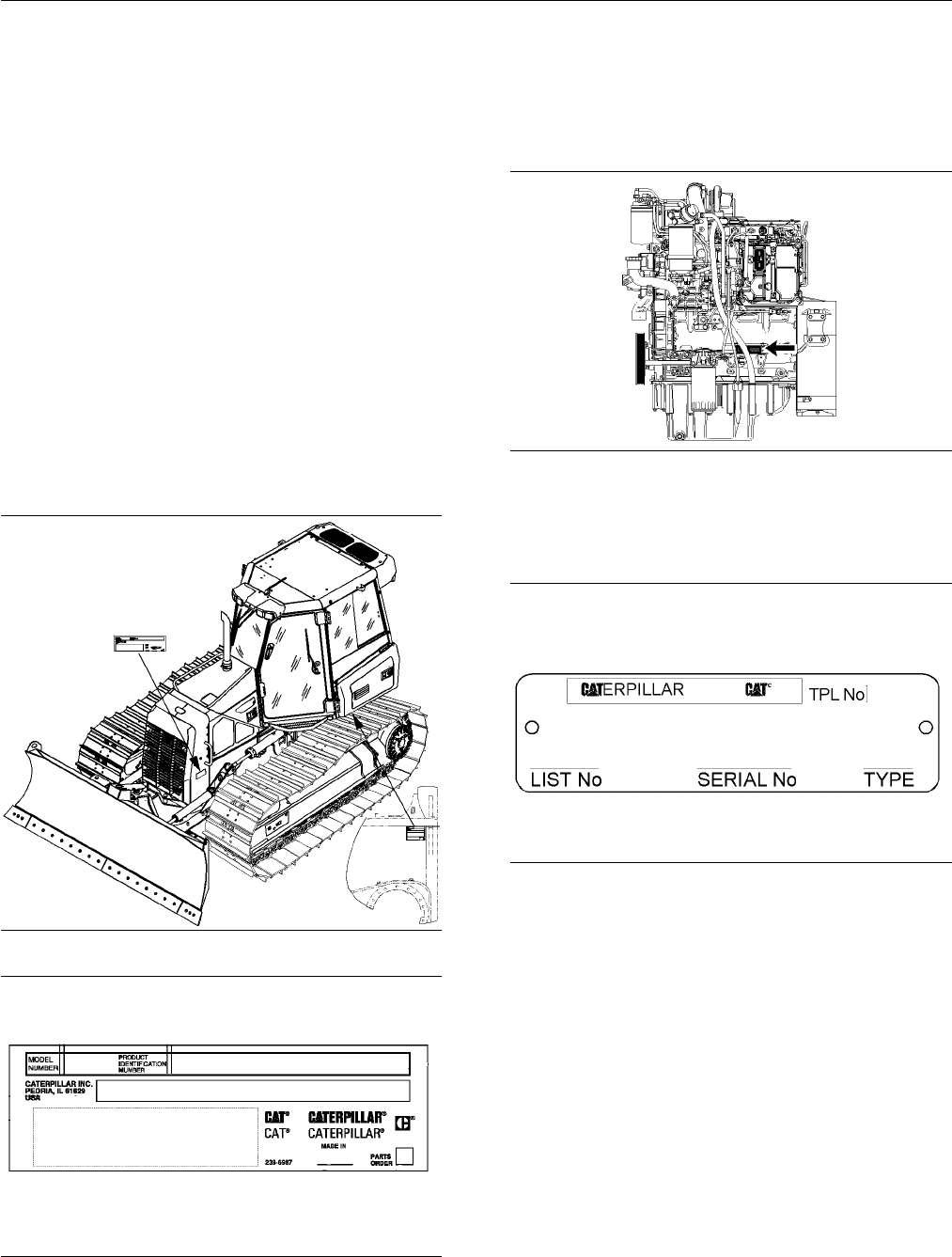

g01621727
Illustration 26
g01057083
Illustration 27
The plate fo r Ma
chine PIN (1) is located to the left
of the case on the rear of the machine. The second
plate for Machine PIN (1) is located on the left side of
the radiator g
uard on the front of the machine.
Machine PIN (1)
____________________________________________
g01400193
Illustration 28
The Engine Serial Number Plate is located on the
left side of the cylinder block to the rear of the front
engine mounting.
g01274351
Illu
stration 29
Engine Serial Number ____________________________________
The serial number plate for the ripper is located on
the side of the ripper.
