CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 43

Operation and Maintenance Manual
SEBU8213-04 43
Operation Section
Machine Operation

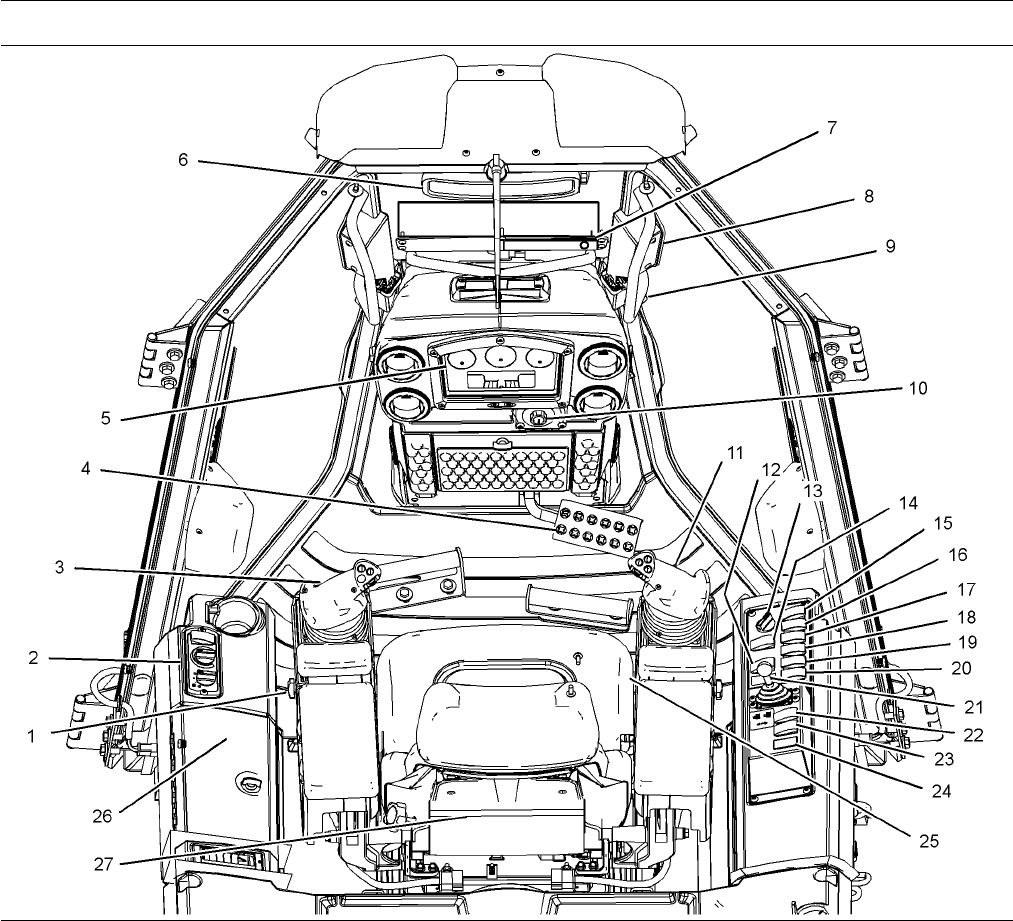

g01391162
Illustration 48
(1) Adjustable Armrest
(2) Air conditioning and heating Controls
(3) Steering a nd Transmission Control
(4) Decelerator/Brake Pedal
(5) Gauges and Indicators
(6) Mirror
(7) A M/FM Radio
(8) Exterior cab door release lever
(9) Interior cab door release lever
(10) Engine Start Switch
(11) Bulldozer Control
(12) Work lights
(13) Engine throttle control
(14) F uel efficient rpm range
(15) P a rking Brake S w itch
(16) Hydraulic lockout
(17) Front window wiper
(18) Left window wiper
(19) Right window wiper
(20) Rear window wiper
(21) Winch Controls or Ripper Controls
(22) W inc h freespool s witch
(23) W inc h driveaway switch
(24) Auxiliary function
(25) Air sus pension seat
(26) Power Receptacle inside storage box
(27) Pocket in seat back rest (Operation and
Maintenance Manual)
