CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 74

Operation and Maintenance Manual
74 SEBU8213-04
Operation Section
Parking
3. Dismount the ma
chine.

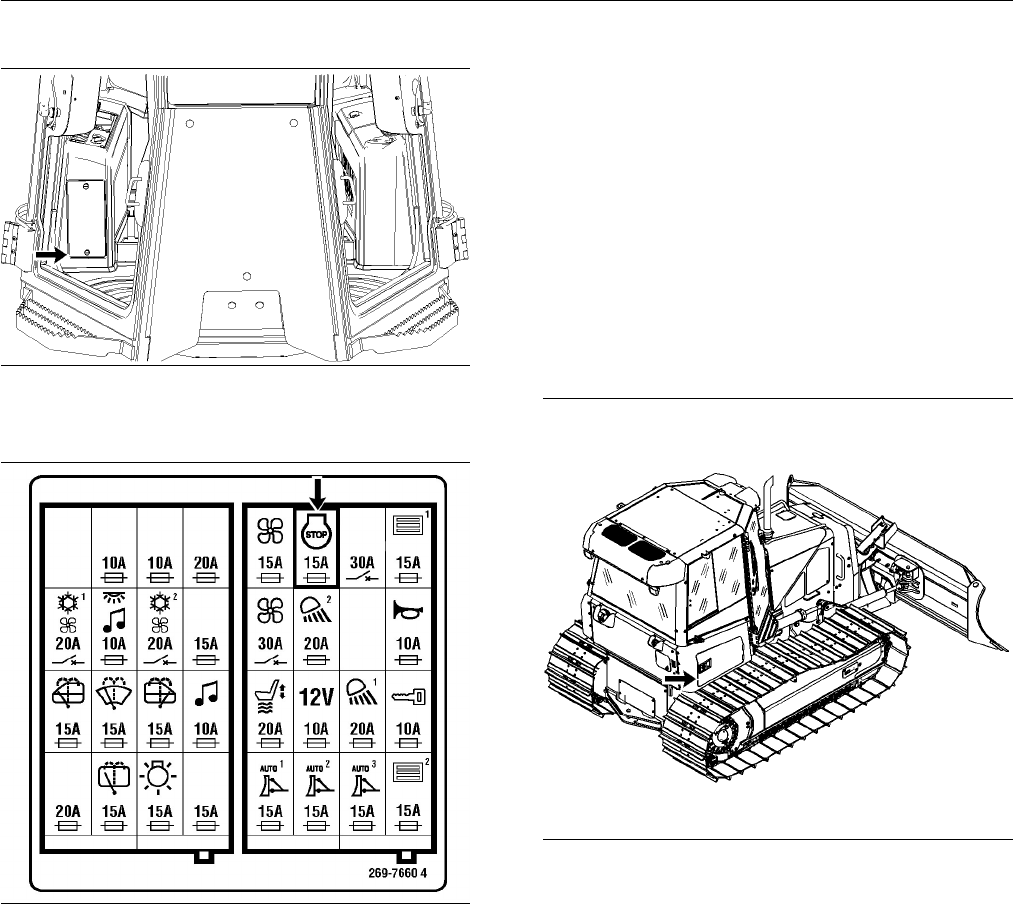

g01259901
Illustration 100
4. Open the access door for the fuse panel.
g01393642
Illustration 101
5. Use the fuse puller that is located on the panel
door (not shown). Pull the 15 Amp fuse for the
Engine Stop from the fuse panel.
Note: Do not operate the machine again until the
malfunction has been corrected.
i03316659
Equipm ent Lowering with
Engine Stoppe
d
(Electrohydraulic Implement
Valve)
SMCS Code: 7000
Dead Engi ne Lower
Actuator Sp
ools
Relieve the pressure in the hydraulic tank.
g01399056
Illustration 102
There is an access door for the dozer/ripper valves on
the right side of the machine. Open the access door.
This procedure requires two people. One person
must operate the control valves and the other person
remains at the dozer blade. Care must be taken
when you perform this procedure. The person at the
dozer blade must make sure that the area is clear.
