108 SEBU8213-04
Maintenance Section
Engine Oil Sample - Obtain
i02801890
Engine Oil S ample - Obta in
SMCS Code: 1348-554-SM; 1348; 7542

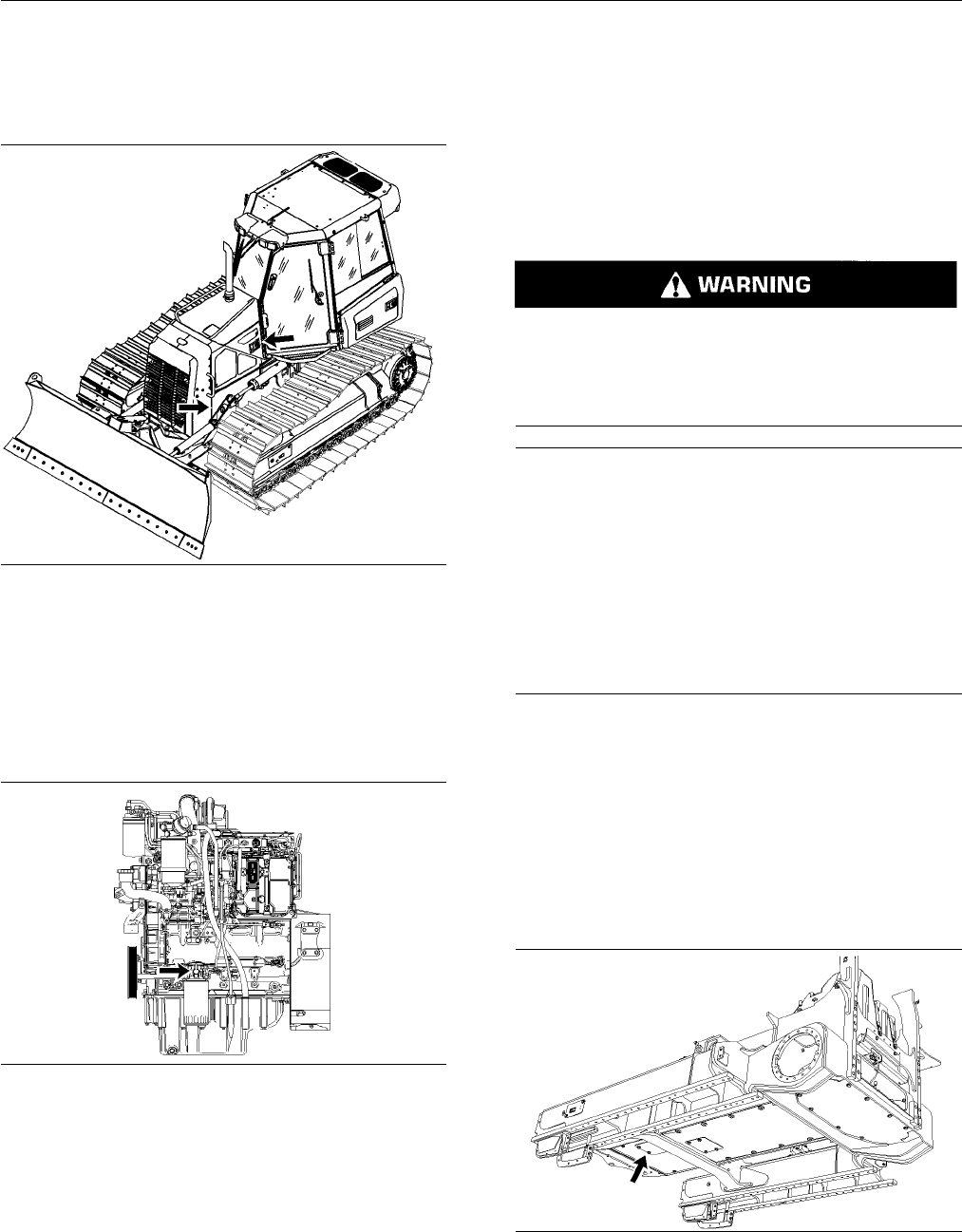

g01260285
Illustration 144
1. Open the left engine access door.
2. Remove the lower service access door on
left side of the machine. Refer to Operation
and Maintenance Manual, “General Hazard
Information” for information that pertains to
containing fluid spillage.
g01400188
Illustration 145
3. Obtain the regularly scheduled oil sample.
a. Use the oil sampling valve. Refer to Special
Publication, PEHP6001, “How To Take A Good
Oil Sample”.
Reference: See
Special Publication, SEBU6250,
“Caterpillar Fluids and Recommendations”, “S·O·S
Oil Analysis” and “Sampling Interval and Location of
Sampling Valv
e” for more information.
i02799428
Engine Oil and Filter - Chang e
SMCS Code: 1318
Hot oil and components can cause pe rsonal in-
jury.
Do not allow hot oil or components to contact
skin.
NOTICE
A 500 hou
r engine oil change interval is available, pro-
vided that the operating conditions and recommend-
ed multigrade oil types are met. When these require-
ments ar
e not met, shorten the oil change interval
to 250 hours, or use an S·O·S Services oil sampling
and analysis program to determine an acceptable oil
change
interval.
If you select an interval for oil and filter change that is
too lon
g, you may damage the engine.
1. Open the left engine access door.
2. Remove the lower service access door on the left
side of the machine.
a. Obtain the regularly scheduled oil sample, if
necessary.
See Operation and Maintenance Manual, “Engine Oil
Sample - Obtain” for the proper procedure.
g01260287
Illustration 146
