CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 8

Operation and Maintenance Manual
8 SEBU8213-04
Safety Section
Safety Messages
Replace any saf
ety message that is damaged or
missing. If a safety message is attached to a part of
the machine that is replaced, install a safety message
on the replace
ment part. Any Caterpillar dealer can
provide new safety messages.

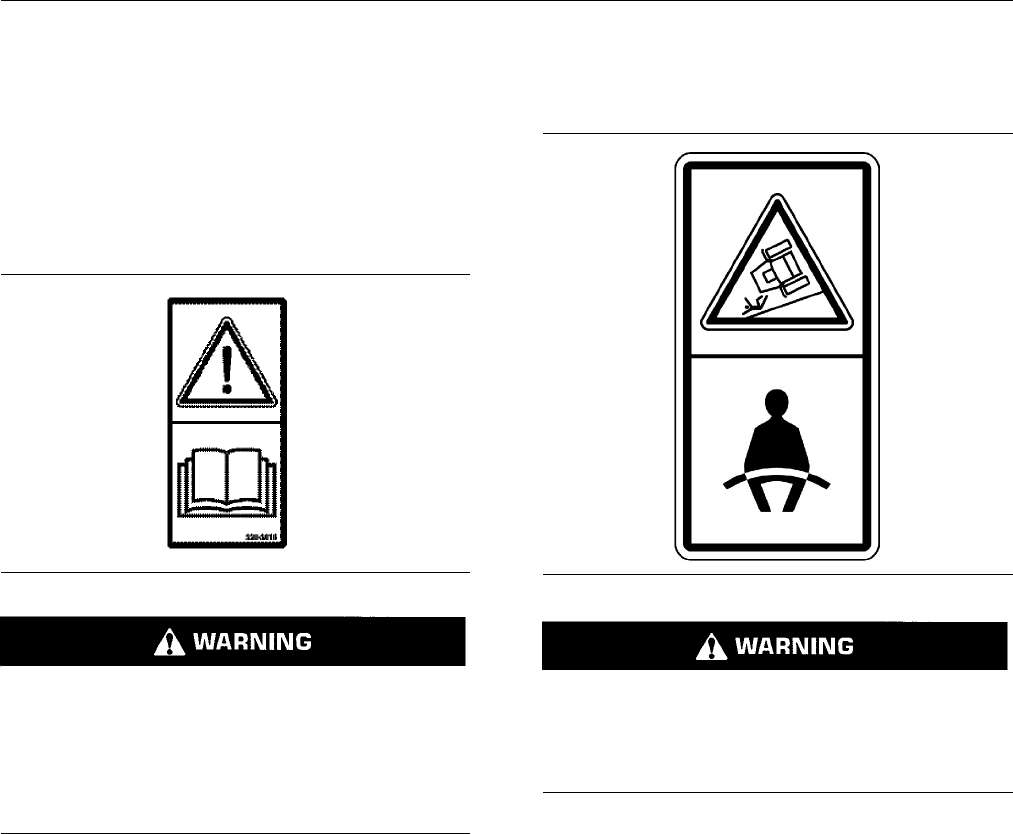

Do Not Operate (1)
Safety Messa
ge (1) is positioned on the right hand
side of the cab post in view of the operator.
g01030982
Do not operate or work on this machine unless
you have read a nd understand the instructions
and warnings in the Operation and Maintenance
Manuals. Failure to follow the instructions or heed
the warnings could result in injury or death. Con-
tact any Caterpillar dealer for replacement manu-
als. Proper care is your responsibility.
Seat B elt (2)
Safety Message (2) is positioned on the left hand
side of the cab post in view of the operator.
g01371636
Aseatb
eltshouldbewornatalltimesduringma-
chine operation to prevent serious injury or death
in the ev ent of an accident or machine overturn.
Failu
re to wear a seat belt during machine opera-
tion may result in serious injury or death.
