CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 122

Operation and Maintenance Manual
122 SEBU8213-04
Maintenance Section
Hydraulic System Oil - Change

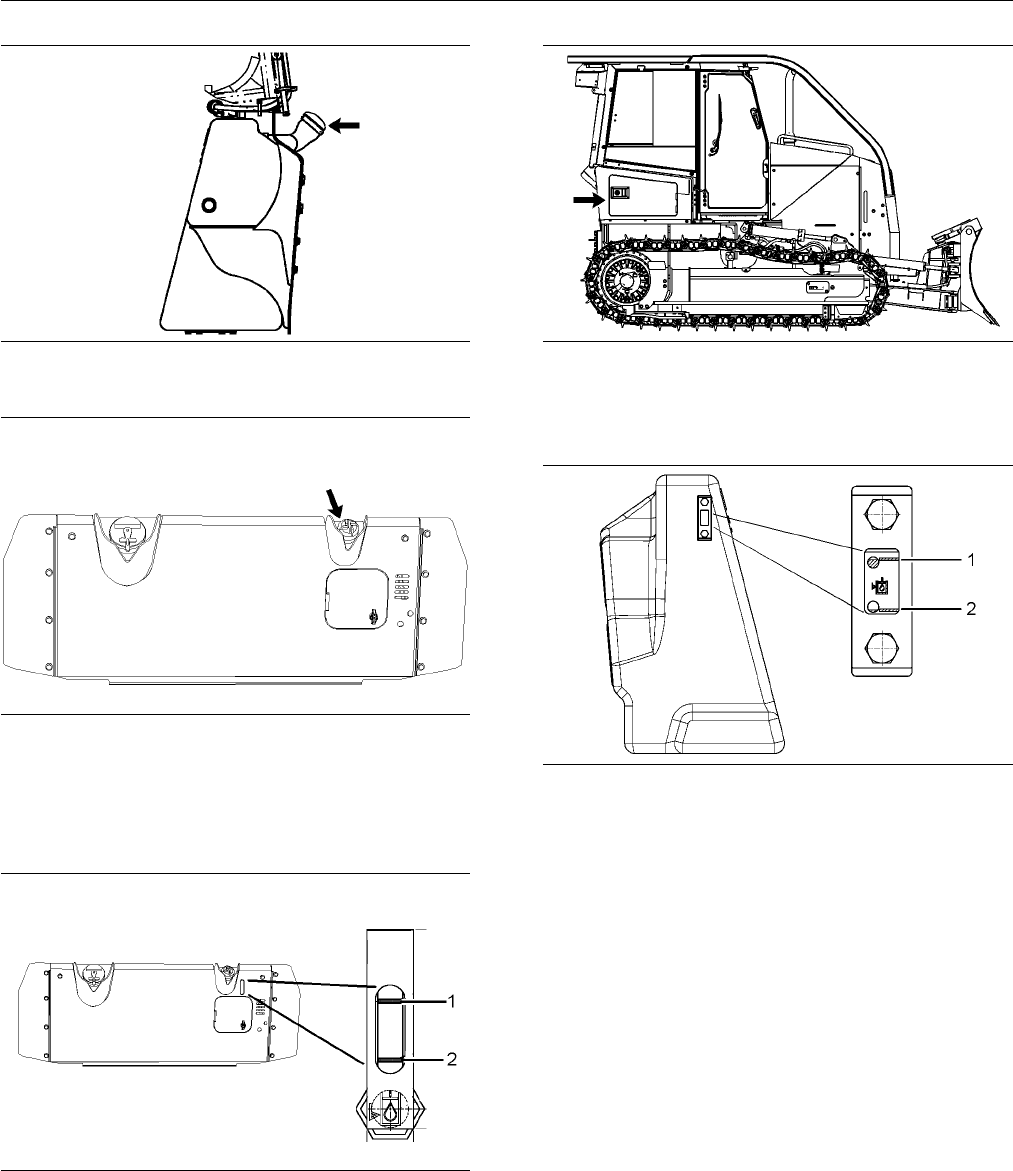

g01701734
Illustration 172
Left view of new tank
g01259742
Illustration 173
7. Install the hydraulic cap.
8. Start the engine and run the engine for a few
minutes.
g0
1400117
Illustration 174
(1) Full mark
(2) “ADD” mark
9
.
V
iew the sight gauge through the slot above the
rear access door on the back of the machine.
Maintain the hydraulic oil level above the “ADD”
m
ark (2) on the sight gauge. Add oil, if necessary.
g01701714
Illustration 175
New location of sight gauge
10. Open the right rear access door.
g01701
774
Illustration 176
Right side view of new tank
(1) Fu
ll mark
(2) “A
DD” m ark
11. View the sight gauge inside the right rear access
door
, if equipped. Maintain the hydraulic oil level
above the “ADD” mark (2) on the sight gauge. Add
oil, if necessary.
Note: The oil must be free of bubbles. If bubbles are
present in the oil, air is entering the hydraulic system.
Ins
pect the suction hoses and the hose clamps.
12. Stop the engine.
13. If necessary, tighten any loose clamps and any
loose connections. Replace any damaged hoses.
14. Close the access door.
