CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 48

Operation and Maintenance Manual
48 SEBU8213-04
Operation Section
Machine Operation
g01400135

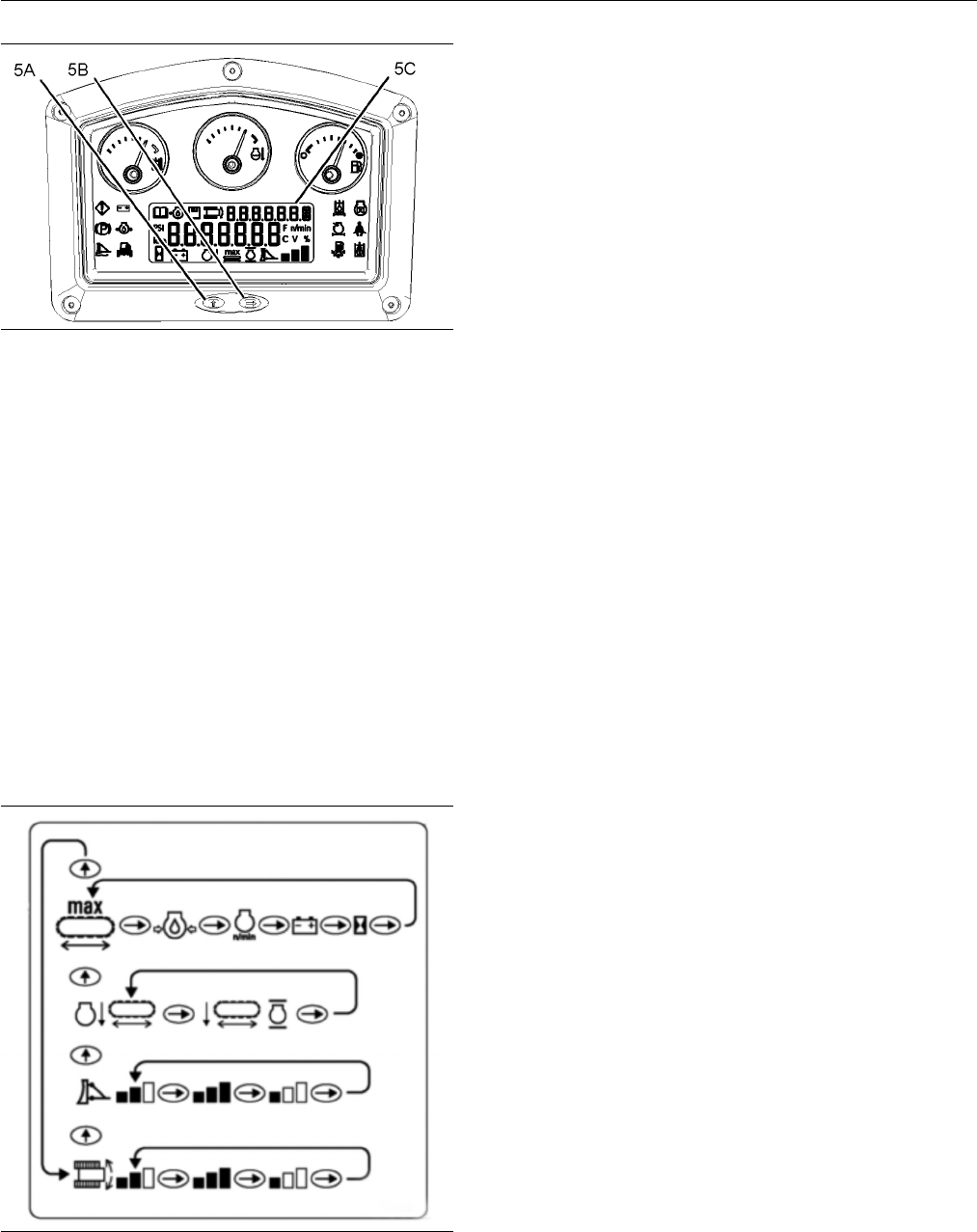

Illustration 54
CIC LCD Screen
(5A) Mode Button
(5B) Scroll Button
(5C) Compact Instrument Cluster LCD Display
The Compact Instrument Cluster LCD Display (45)
shows the four Operator modes.
The Mode button (5A) and the Scroll button (5B) are
used in order to navigate the CIC Menu structure.
Following is the operation of the Mode button (5A)
and the Scroll button (5B).
Move to different modes – Press and release the
Mode button (5A).
Scroll through the submodes or the screens
within each mode – Press and release the Scroll
button ( 5B).
g01359688
Illustration 55
Diagram of CIC Navigation
CIC Operator M o
des Menu
The following is displayed on the CIC Operator
Modes menu:
Mode 0 – Default
Mode 1 – Steering Modulation Settings
Mode 2 – Impl
ement Modulation Settings
Mode 3 – Brake/Decel Pedal Settings
See Table 6 for details of the CIC Operator menu.
