Window Wipers - Inspect/Replace
g01259545

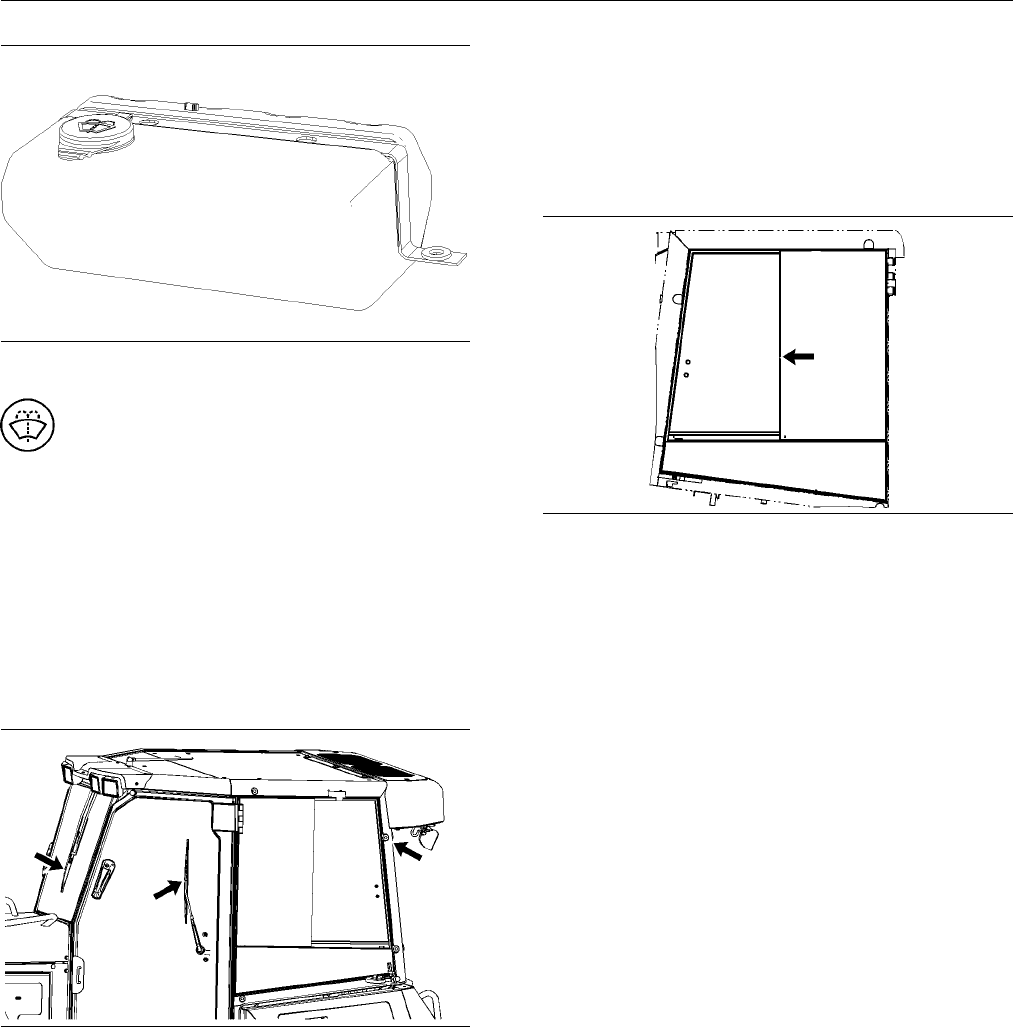

Illustration 217
Window Washer – Open the access door
on the left side of the machine. Open the
fluid bottle cap in order to fill the washer
fluid bottle. Maintain the level in the washer fluid
bottle between the maximum mark and the minimum
marks.
i02421301
Window Wipers -
Inspect/Replace
SMCS Code: 7305-040; 7305-510
g01209798
Illustration 218
Inspect the front window wiper blade, the right
window wiper blade, the left window wiper blade,
and the rear window wiper blade. Replace any wiper
blades that are damaged or worn. Replace any wiper
blades that streak the window.
i02517456
Windows - Clean
SMCS Code: 7310; 7340
Use commerc ia
lly available window cleaning
solutions to clean the windows.
g01259534
Illustration 219
