CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 34

Operation and Maintenance Manual
34 SEBU8213-04
Product Information Section
Identification Information
This machine ha
s been certified to the standards that
arelistedonthecertification plate. The maximum
mass of the machine, which includes the operator
and the attach
ments without payload, should not
exceed the mass on the certification plate.
A typical exa
mple of the certification film is shown
above.
Refer to Ope
ration and Maintenance Manual,
“Guards (Operator Protection)” for more information.

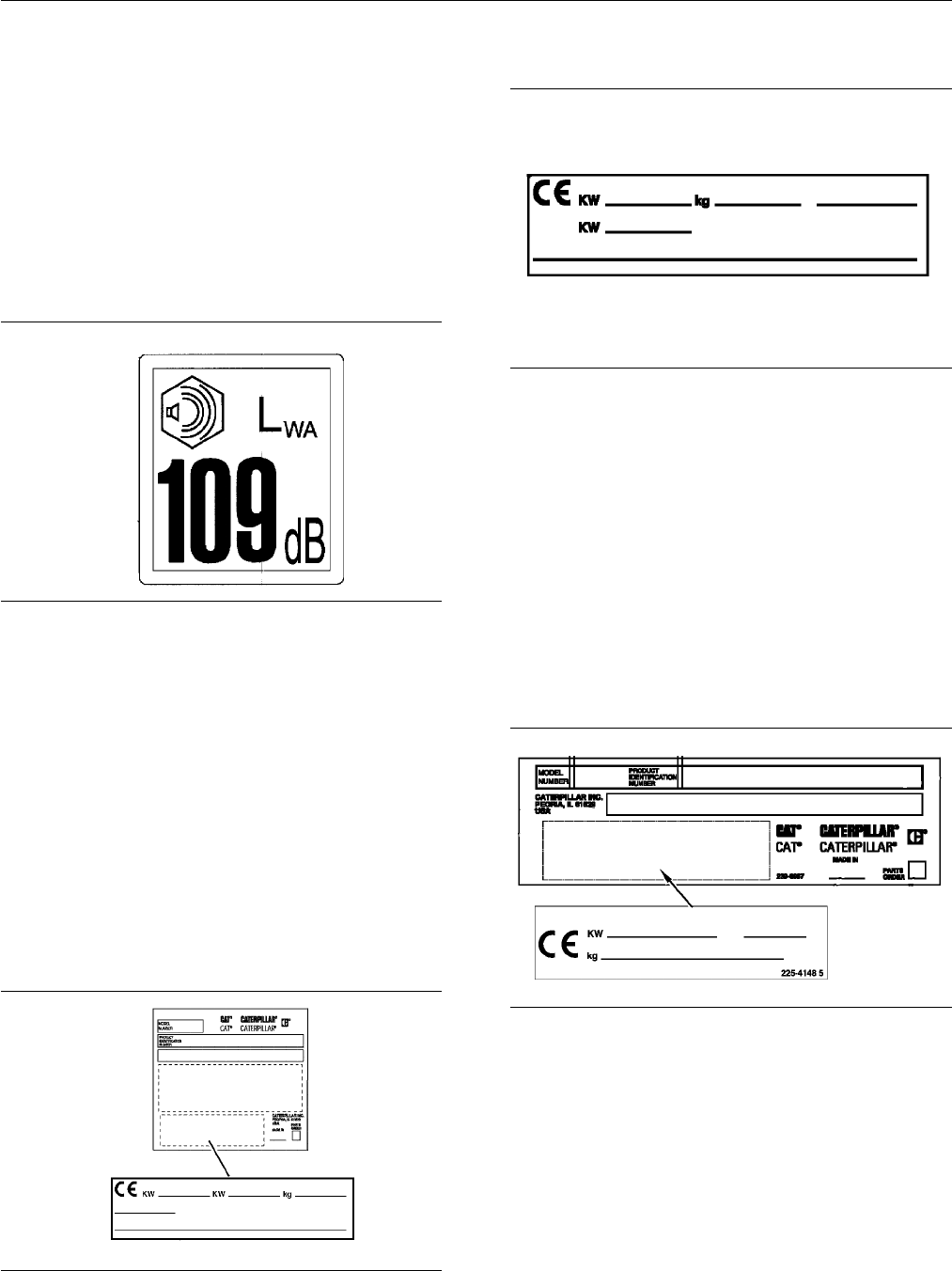

Sound Certification
g00933634
Illustration 35
A typical example of this film is shown. Your machine m ay have a
different value.
If equipped, the certification film is used to verify the
environmental sound certification of the machine.
The value that is listed on the film indicates the
guaranteed sound power level. The guaranteed
sound power level is measured at the time of
manufacture. The guaranteed sound power level
is measured according to the conditions that are
specified in “2000/14/EC”.
European Union
This plate is positioned on the bottom left side of the
Machine PIN (1) at the rear of the machine.
g01883459
Illustration 36
For quick re fer
ence, record this information in the
spaces that are provided below.
g02019094
Illustration 37
•
Engine Power of primary engine (kW)______________
•
Engine P
ower for additional engine (kW) (if
equipped)
_________________________________________________
•
Typical
operating weight of machine for European
market (kg)
________________________________________________
•
Year of
construction
_____________________________________
•
Machine Type____________________________________________
For machines that are compliant to “1998/37/EC”, the
following information is stamped onto the “CE” plate.
g01062968
Illustration 38
Front of machine
For quick reference, record this information in the
spaces that are provided below.
•
Engine Power of primary engine (kW)______________
•
Typical operating weight of machine for European
market (kg)
________________________________________________
•
Year_________________________________________________________
