124 SEBU8213-04
Maintenance Section
Hydraulic System Oil Level - Check
9. View the sight g
auge inside the right rear access
door, if equipped. Maintain the hydraulic oil level
above the “ADD” mark (2) on the sight gauge. Add
oil, if necess
ary.
g01701734

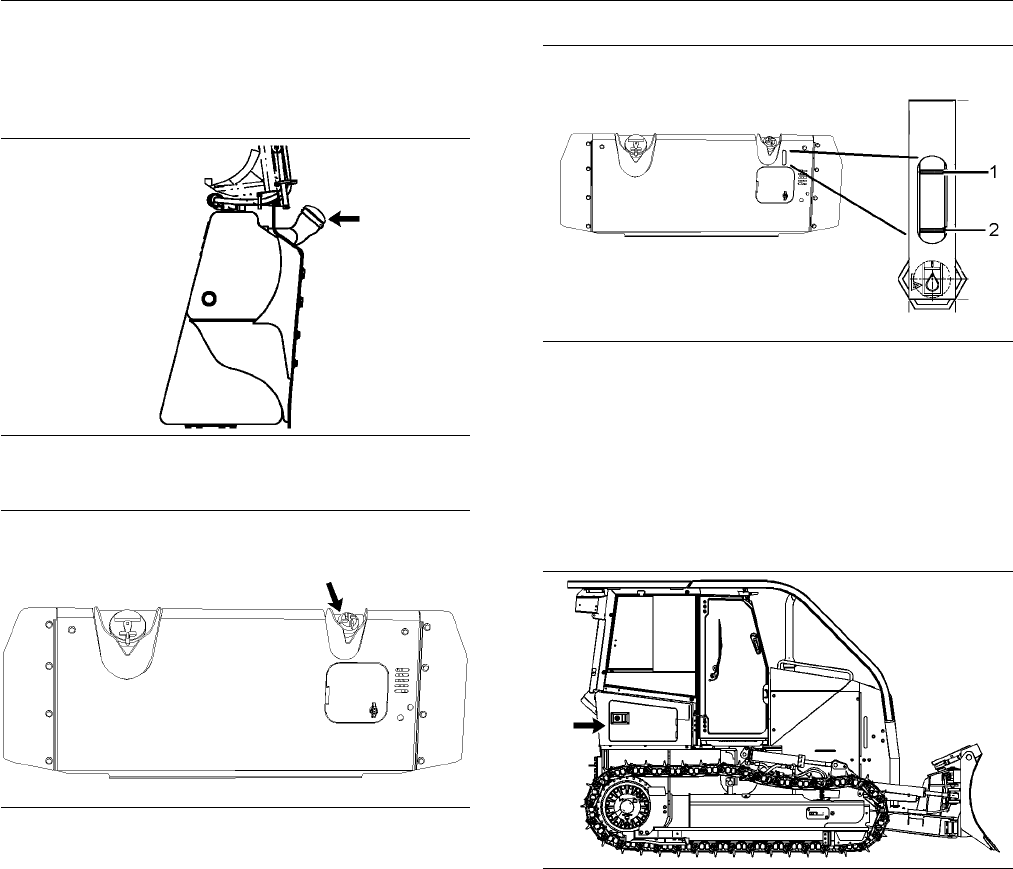

Illustration 181
Left view of new tank
g01259742
Illustration 182
10. Inspect the gasket on the cap for damage.
Replace the gasket, if necessary.
11. Install the cap .
i03160925
Hydraulic System Oil Level -
Check
SMCS Code: 5056; 7479
Note: The Hystat transmission and the hydraulic
systemuseacommontank.
1. Park the machine on a level surface before you
check the hydraulic system oil level.
g01400117
Illustration 183
(1) F ull mark
(2) “Ad d ” mark
2. View the sight gauge through the slot above the
rear access door on the back of the machine.
3. Maintain the hydraulic oil level above the “ADD”
mark (2) on the sight gauge.
g01701714
Illu
stration 184
New location of sight gauge
4. Open the right rear access door.
