Cab Filter (Fresh Air) - Clean/Inspect/Replace
i02801611
Cab Filter (Fresh Air) -
Clean/Insp ec
t/Replace
(If Equipped)
SMCS Code: 73
42-040; 7342-070; 7342-510
Note: Clean the filter element more often in dusty
conditions
. If there is a noticeable reduction in the air
flow from the air vents, check the filter element.
Note: Enclo
sed ROPS only
1. Open the access cover for the filter on the left side
of the mach
ine.
g01259839

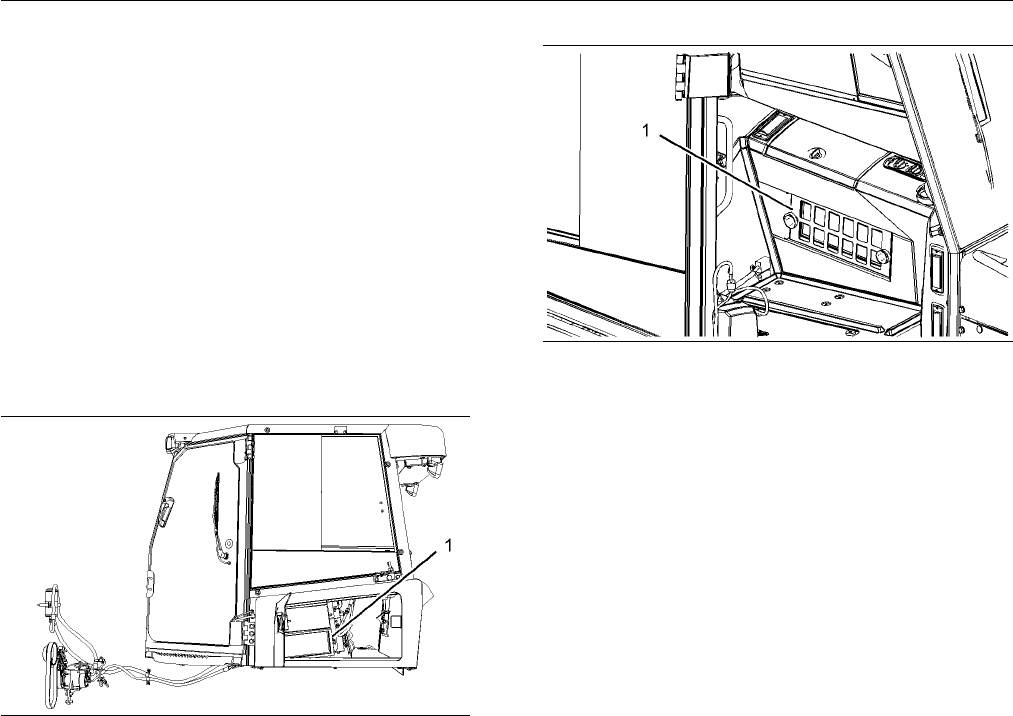

Illustration 121
2. Remove filter element (1). Clean the filter element
with compressed air.
Note: Do not clean the filter elements while the filter
elements are installed on the machine.
Note: Do not wash the filter element with water.
Note: Keep the filter element dry.
3. Install the filter element. Install the access cover.
i02801612
Cab Filter (Recirculation) -
Clean/Inspect/Replac e
SMCS Code: 7342-040; 7342-070; 7342-510
Note: Clean the filter element more often in dusty
conditions. If there is a noticeable reduction in the air
flow from the air vents, check the filter element.
g01213198
Illustration 122
1. Remove filter element (1). The filter element is
located next to the seat on the left side. Clean the
filter element with compressed air.
Note: Do not clean the filter element while the filter
element is installed on the machine.
Note: Do not use water in order to clean the filter
element.
Note: The filter must be thoroughly dried before you
install the filter.
2. Replace any fi lter element that is worn or
damaged.
3. Install the filter element and replace the filter
cover.
Note: Install the fi lter element with the filter media
toward the inside of the cavity.
i02801613
Circ
uit Break ers - Reset
SMCS Code: 1417; 1420
The main circuit breaker is located in the front of the
right console behind the cover plate.
