CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 57

Operation and Maintenance Manual
SEBU8213-04 57
Operation Section
Machine Operation
Fuel Shutoff Control in Cab (If
equipped)
g01625983
Illustration 81
Fire plow
Contro l
Panel for the AccuGrade -
Laser System (If equipped)
If equipped, the GPS display and the AccuGrade
- Laser System is located below the compact
instru
ment cluster (CIC).
For more information regarding the operation of the
contro
l panel for the AccuGrade - Laser System, refer
to Operation and Maintenance Manual, SEBU8161,
“AccuGrade - Laser System”. For more information
regar
ding the operation of the control panel for
the AccuGrade - GPS , refer to Operation and
Maintenance Manual, SEBU8280, “AccuGrade -
GPS (C
D700)”.
i02539833
Battery D isc onn ect Switch
SMCS Code: 1411-B11; 1411
The battery disconnect switch is located at the rear of
the machine. Open the access door.

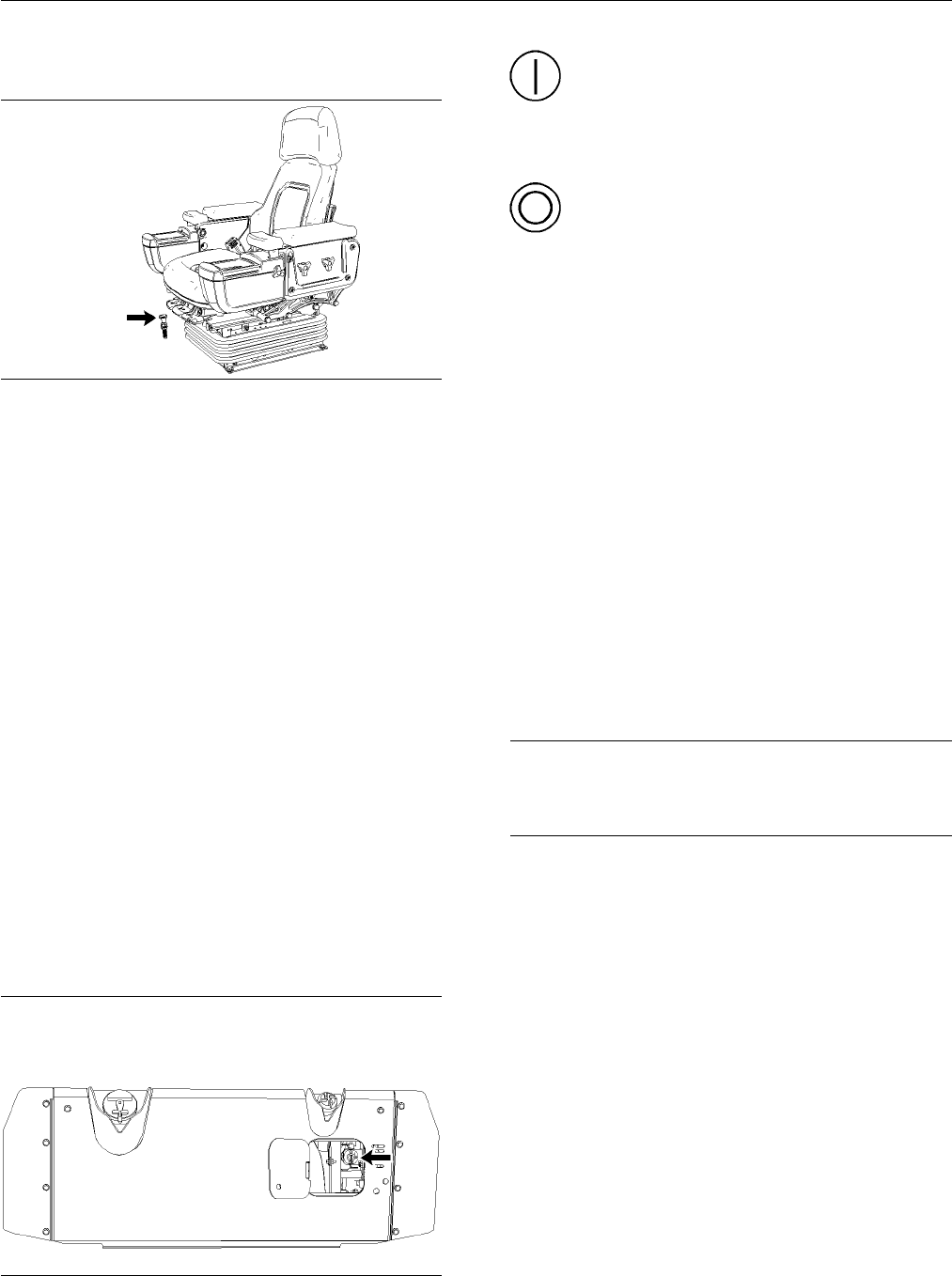

g01271477
Illustration 82
ON – Insert the battery disconnect switch
key, and turn the battery disconnect switch
key clockwise
in order to activate the
electrical system. The switch must be ON before you
start the engine.
OFF – Turn the
battery disconnect switch
key counterclockwise in order to shut off
the entire electrical system.
The battery
disconnect switch and the engine start
switch serve different functions. When the battery
disconnect switch is turned off, the entire electrical
system is d
isabled. When only the engine start switch
is turned off, the battery remains connected to the
electrical system.
Turn the battery disconnect switch key to the OFF
position and remove the battery disconnect switch
key when y
ou service the electrical system or you
service any other components of the machine.
Turn the b
attery disconnect switch key to the OFF
position and remove the battery disconnect switch
key when the machine is left for an extended period
of one mo
nth or longer. This procedure will prevent a
short circuit from draining the battery. This procedure
will also prevent the components from draining the
battery
.Thisprocedurewillalsopreventthebattery
from being drained by vandalism.
Close t
he access door.
NOTIC
E
Never turn the battery disconnect switch key to OFF
with the engine running. Electrical system damage
could
result.
