CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 73

Operation and Maintenance Manual
SEBU8213-04 73
Operation Section
Parking
Parking
i02808917
Stoppin g the Machine
SMCS Code: 7000
NOTICE
Park on a level surface. If it is necessary to park on a
grade, chock the tracks securely.

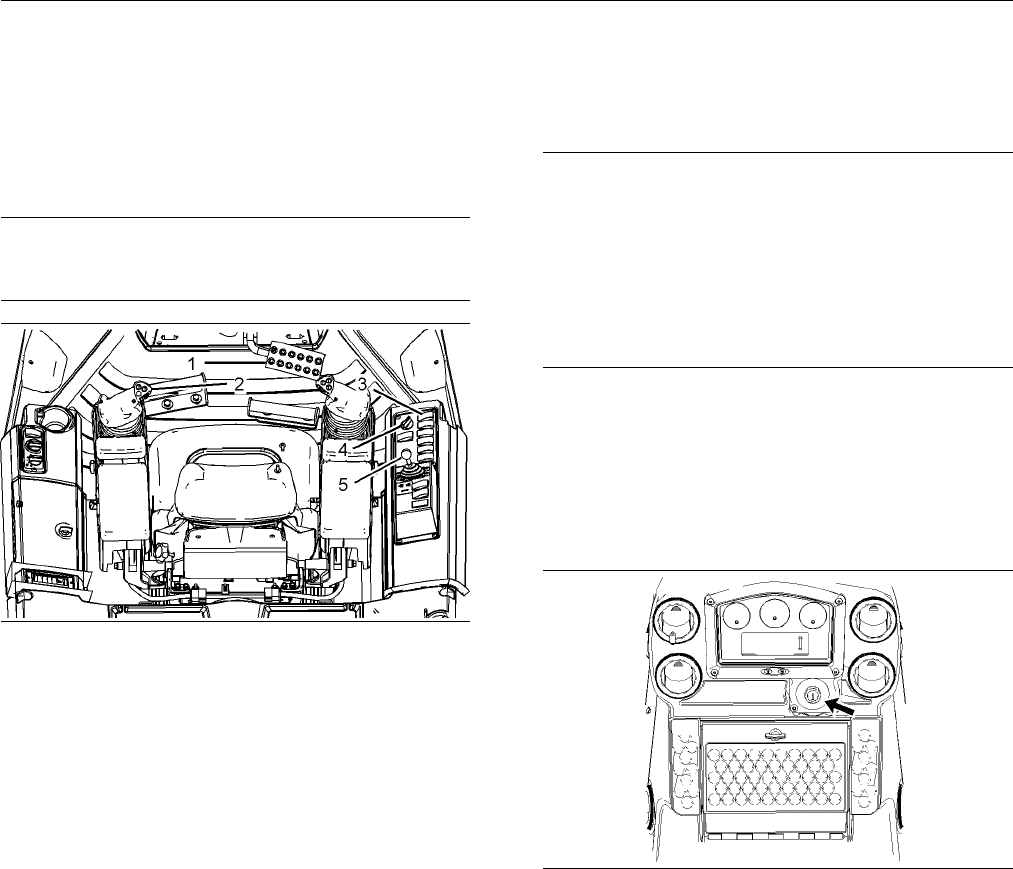

g01258916
Illustration 98
1. Move steering and transmission control lever (2)
to the NEUTRAL position in order to stop the
machine.
2. Apply decel/brake pedal (1) in order to hold the
machineinposition.
3. Turn the engine throttle control (knob) (4) to the
LOW IDLE position.
4. Push parking brake switch (3) away from the
operator to the ENGAGED position.
5. Release pedal (1).
6. Use lever (5) in order to lower all attachments to
the ground and apply slight downward pressure.
7. Move all attachment controls to the NEUTRAL
position.
i02799345
Stopping the Engine
SMCS Code: 1000; 7000
NOTICE
Stopping the engine immediately after it has been
working under load, can result in overheating and ac-
celerated wear of the engine components.
Refer to the following procedure, to allow the engine
to cool, and to prevent excessive temperatures in the
turbocharger housing (if equipped), which could cause
oil coking problems.
1. Operate the engine for five minutes at low idle
with no load.
This allows hot areas in the engine to cool
gradually. This will extend the engine life.
2. Move all control levers into the HOLD position.
g01270374
Illustration 99
3. Turn the engine start switch key to the OFF
position in order to stop the engine.
i02789742
St
opping the Engine if an
Electrical Malfun ctio n Occurs
SM
CS Code: 1000; 7000
E
ngine Start Switch Key ON or OFF
Emergency Engine Shutdown
Engine Start Switch Key ON or OFF
1. Apply the parking brake.
2. Lower the dozer blade or the ripper, if necessary.
