CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 37

Operation and Maintenance Manual
SEBU8213-04 37
Operation Section
Before Operation
Operation Section
Before Operation
i03727105
Moun ting and Dismo unting
SMCS Code: 7000

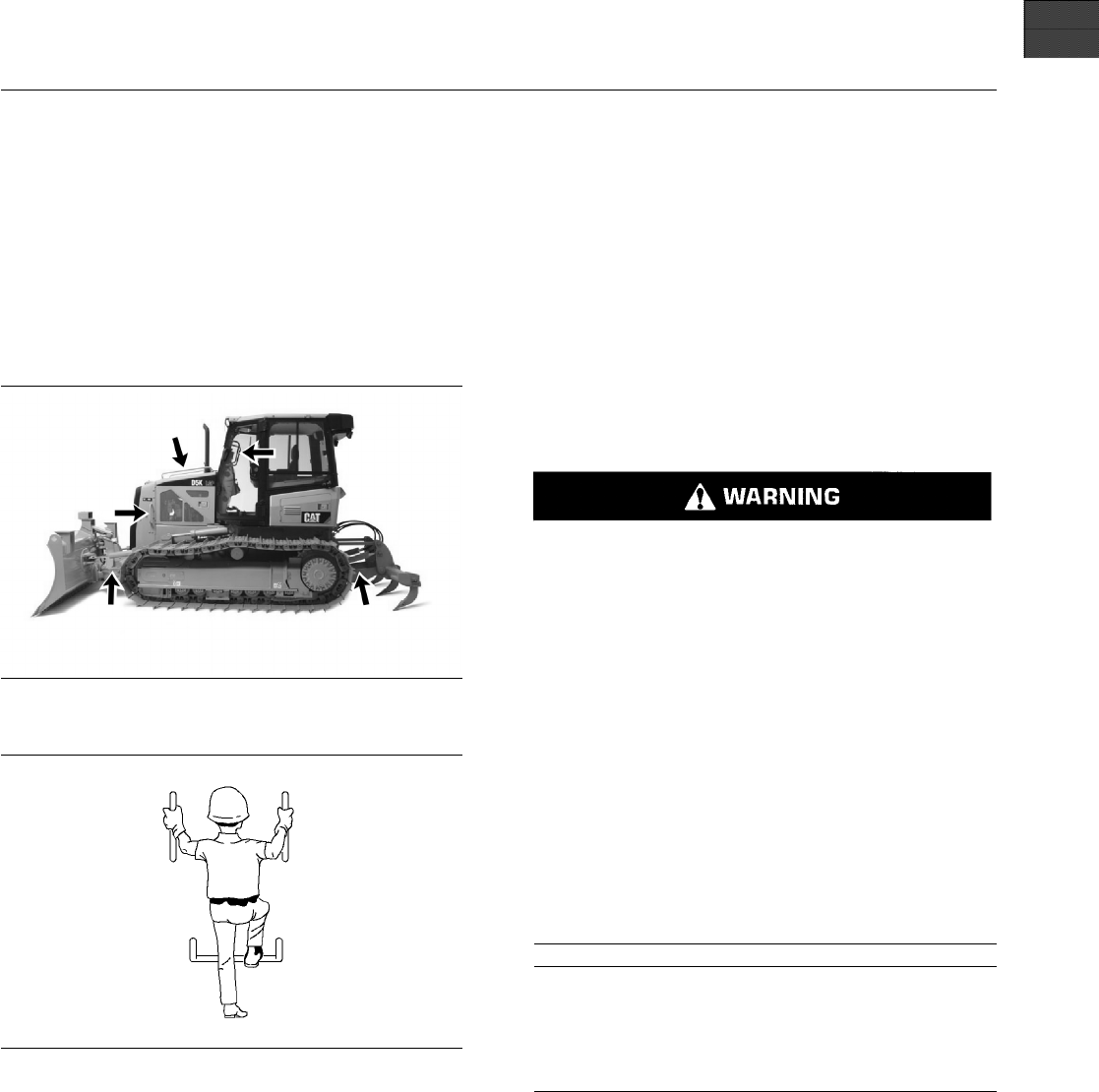

g02009719
Illust
ration 39
Handholds and steps
g00037860
Illustration 40
Us
e steps and handholds whenever you mount
the machine. Use steps and handholds whenever
you dismount the machine. Before you mount the
ma
chine, clean the step and the handholds. Inspect
the step and handholds. Make all necessary repairs.
F
ace the machine whenever you mount the machine
and whenever you dismount the machine. Maintain a
three-point contact with the step and with handholds.
Note: Three-point contact can be two feet and one
hand. Three-point contact can also be one foot and
two hands.
Do not mount a mo
ving machine. Do not dismount a
moving machine. Never jump off the machine. Do
not try to mount the machine when you carry tools
or supplies. D
o not try to dismount the machine
when you are carrying tools or supplies. Use a hand
line to pull equipment onto the platform. Do not
use any contr
ols as handholds when you enter the
operator compartment or when you exit the operator
compartment.
i02799054
Daily I nspection
SMCS Code:
1000; 7000
Hot oil and hot components can cause personal
injury. Do not allow hot oil or hot components to
contact skin.
At operating temperature, the engine coolant is
hot and under pressure.
Steam can cause personal injury.
Check the coolant level only after t he engine has
been stopped and the cooling system pressure
cap is c ool enough to touch with your bare hand.
Remove the cooling system pressure cap slowly
to relieve pressure.
Cooling system conditioner contains alkali. Avoid
contact with the skin and eyes to prevent personal
injury.
NOTI
CE
Accumulated grease and oil on a machine is a fire haz-
ard. Remove this debris with steam cleaning or high
pres
sure water, at least every 1000 hours or each time
any significant quantity of oil is spilled on a machine.
Not
e: For maximum service life of the machine,
make a thorough daily inspection before you operate
the machine. Inspect the machine for leaks. Remove
an
y debris from the engine compartment and the
undercarriage. Ensure that all guards, covers, and
caps are secured. Inspect all hoses and belts for
da
mage. Inspect all lights and mirrors for damage.
Check the condition of the fan drive belt. Make the
needed repairs before you operate the machine.
Perform the following procedures on a daily basis.
•
O
peration and Maintenance Manual, “Backup
Alarm - Test”
