CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 7

Operation and Maintenance Manual
SEBU8213-04 7
Safety Section
Safety Messages

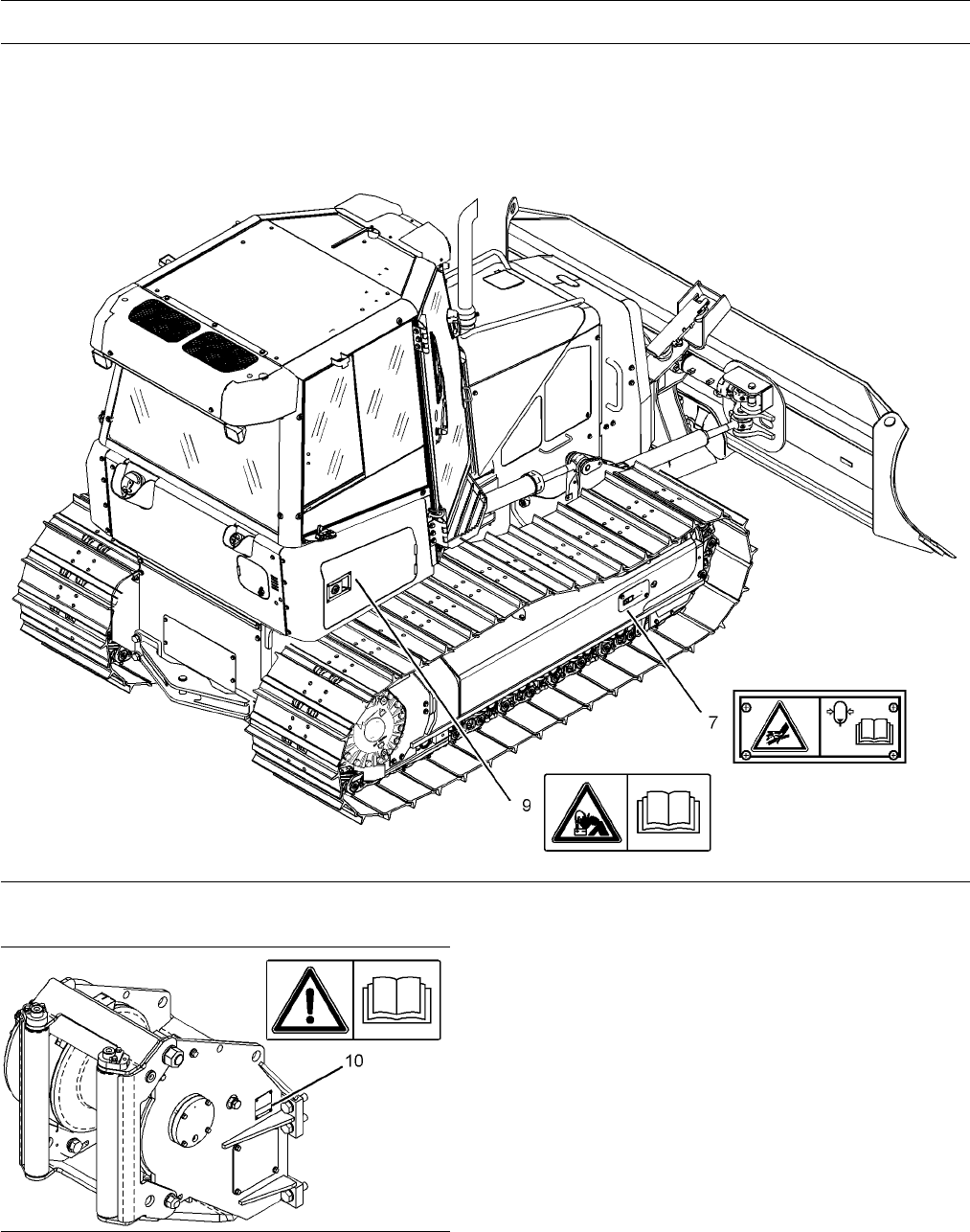

g01357376
Illustration 3
g0
1359794
Illustration 4
There are several specific safety messages on this
machine. The exact location of the hazards and
the description of the hazards are reviewed in this
sect ion. Please become familiarized with all safety
messages.
Make sure that all of the safety messages are legible.
Clean the safety messages or replace the safety
messages if you cannot read the words. Replace
the illustrations if the illustrations are not visible.
When you clean the safety messages, use a cloth,
water, and soap. Do not use solvent, gasoline, or
other harsh chemicals to clean the safety messages.
Solvents, gasoline, or harsh chemicals could loosen
the adhesive that secures the safety message. Loose
adhesive will allow the safety message to fall.
Previous page
Next page
