CAT D3K, D4K and D5K Track-Type Tractors Operation and Maintenance Manual Page 40

Operation and Maintenance Manual
40 SEBU8213-04
Operation Section
Machine Operation
Ride Zone Indicator (13) – Use this
indicator in order to determin e if the
suspension is
adjustedtoohighorthe
adjustment is too low. When the operator sits in the
seat, the white bar should be in the green zone of
ride zone ind
icator (13).
i03172921
Seat Belt
SMCS Code: 7327
Note: This
machine was equipped with a seat belt
when the machine was shipped from Caterpillar.
At the time of installation, the seat belt and the
instructi
ons for installation of the seat belt meet the
SAE J386 standards. See your Caterpillar dealer for
all replacement parts.
Always check the condition of the seat belt and
the condition of the mounting hardware before you
operate t
he machine.
Seat Bel
tAdjustmentfor
Retractable Seat Belts
Fastening The Seat Belt

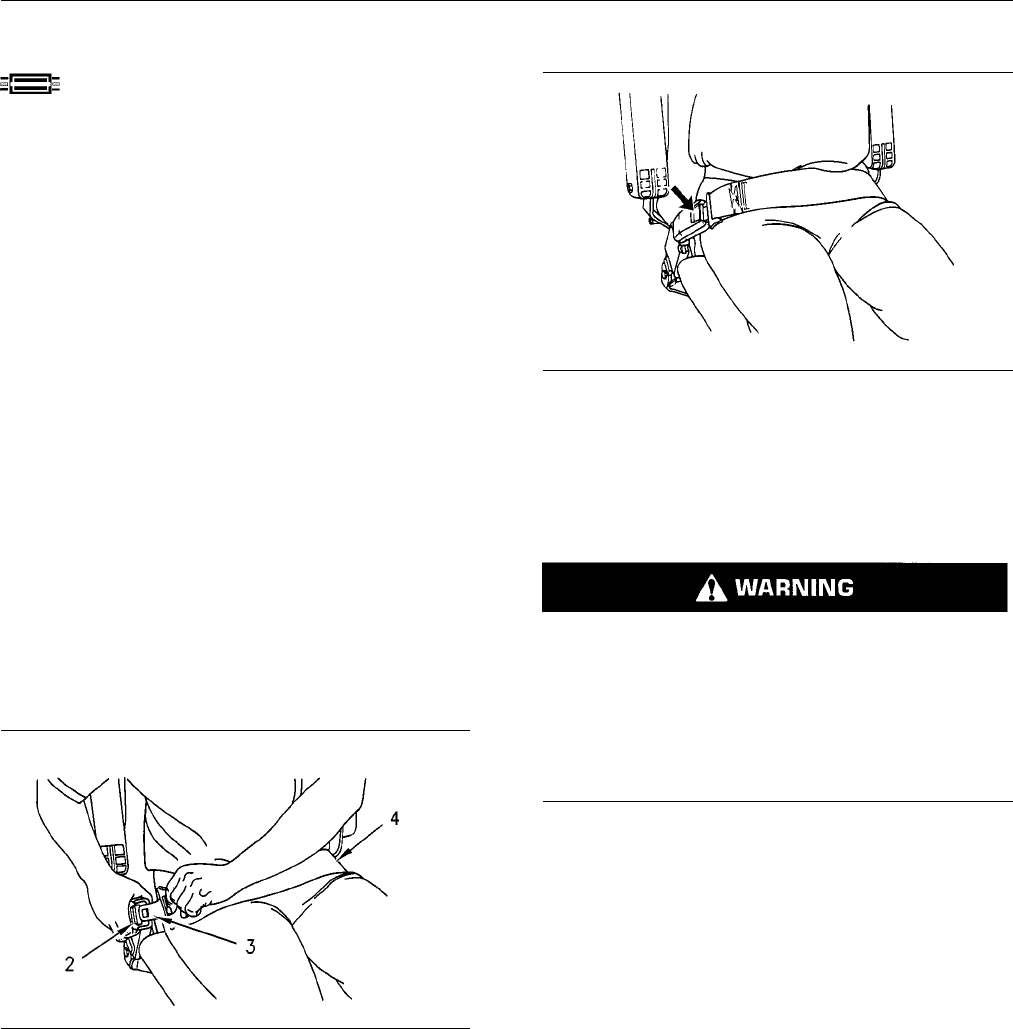

g00867598
Illustration 42
Pul
l seat belt (4) out of the retractor in a continuous
motion.
Fa
sten seat belt catch (3) into buckle (2). Make sure
that the seat belt is placed low across the lap of the
operator.
The retractor will adjust the belt length and the
retractor will lock in place. The comfort ride sleeve
w
ill allow the operator to have limited movement.
Releasing The S
eat Belt
g00039113
Illustrat
ion 43
Push the release button on the buckle in order to
release t
he seat belt. The seat belt will automatically
retract into the retractor.
Extension of the Seat Belt
When usi
ng retractable seat belts, do not use seat
belt extensions, or personal injury or death can
result.
The retractor system may or may not lock up de-
pending on the length of the extension and the
size of
the person. If the retractor does not lock
up, the seat belt will not retain the person.
Consu
lt your Caterpillar dealer for longer seat belts
and for information on extending the seat belts.
i03105875
Seat Belt
SMCS Code: 7327
Note: This machine was equipped with a seat belt
when the machine was shipped from Caterpillar.
At the time of installation, the seat belt and the
instructions for installation of the seat belt meet the
SAE J386 standards. See your Caterpillar dealer for
all replacement parts.
Always check the condition of the seat belt and
the condition of the mounting hardware before you
operate the machine.
